Self-diagnosis device
This model is equipped with a self-
diagnosis device for the fuel electrical
circuit.
If a problem is detected in the fuel
electrical circuit, all LCD segments of
the fuel gauge and the fuel level war-
ning indicator will flash. If this occurs,
have a Yamaha dealer check the vehi-
cle.
EAU12348

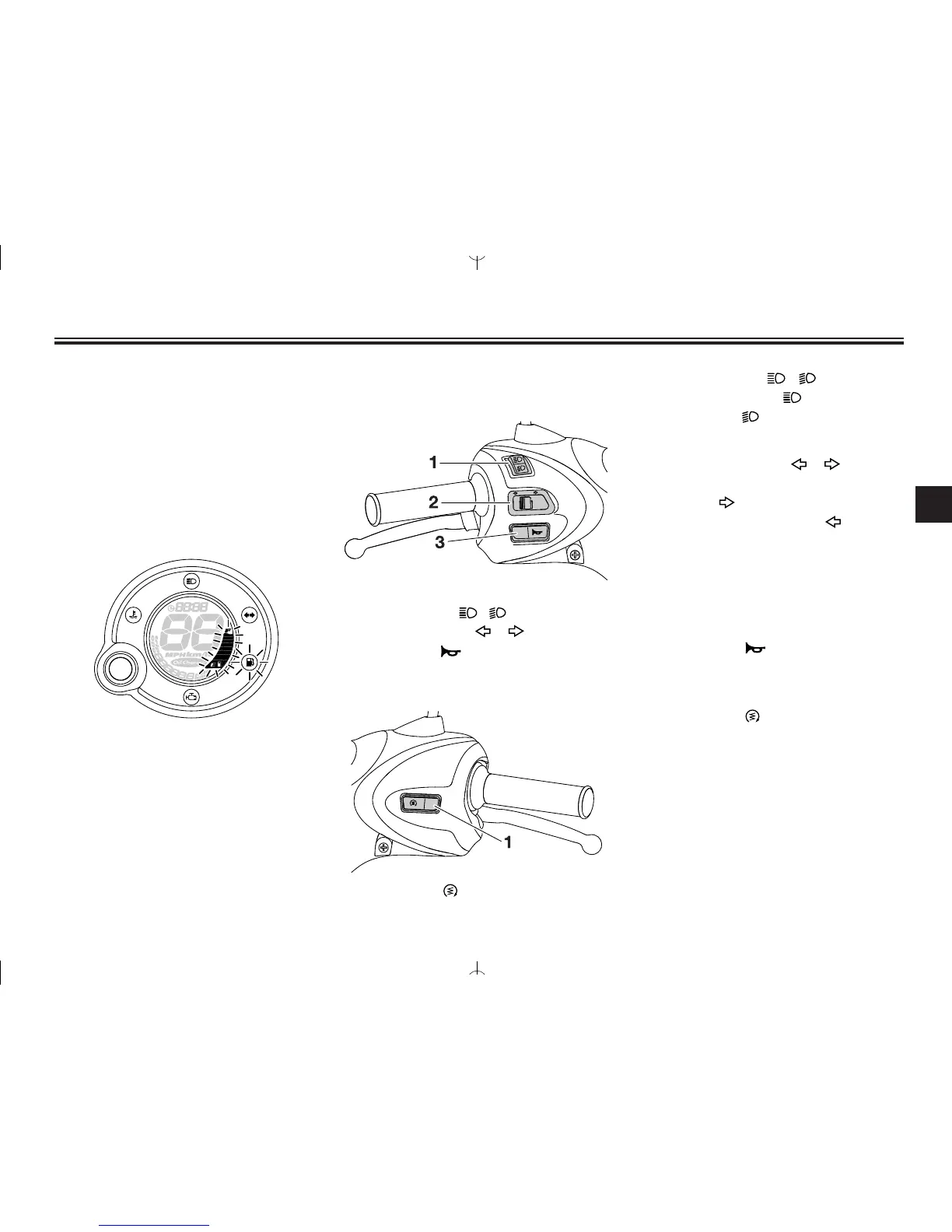

Handlebar switches
Left
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
Right
1. Start switch “ ”
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAUM1132
Start switch “ ”
Push this switch while applying the
front or rear brake to crank the engine
with the starter. See page 5-1 for star-
ting instructions prior to starting the
engine.
