PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU18741
Removing and installing the
cowling and panel

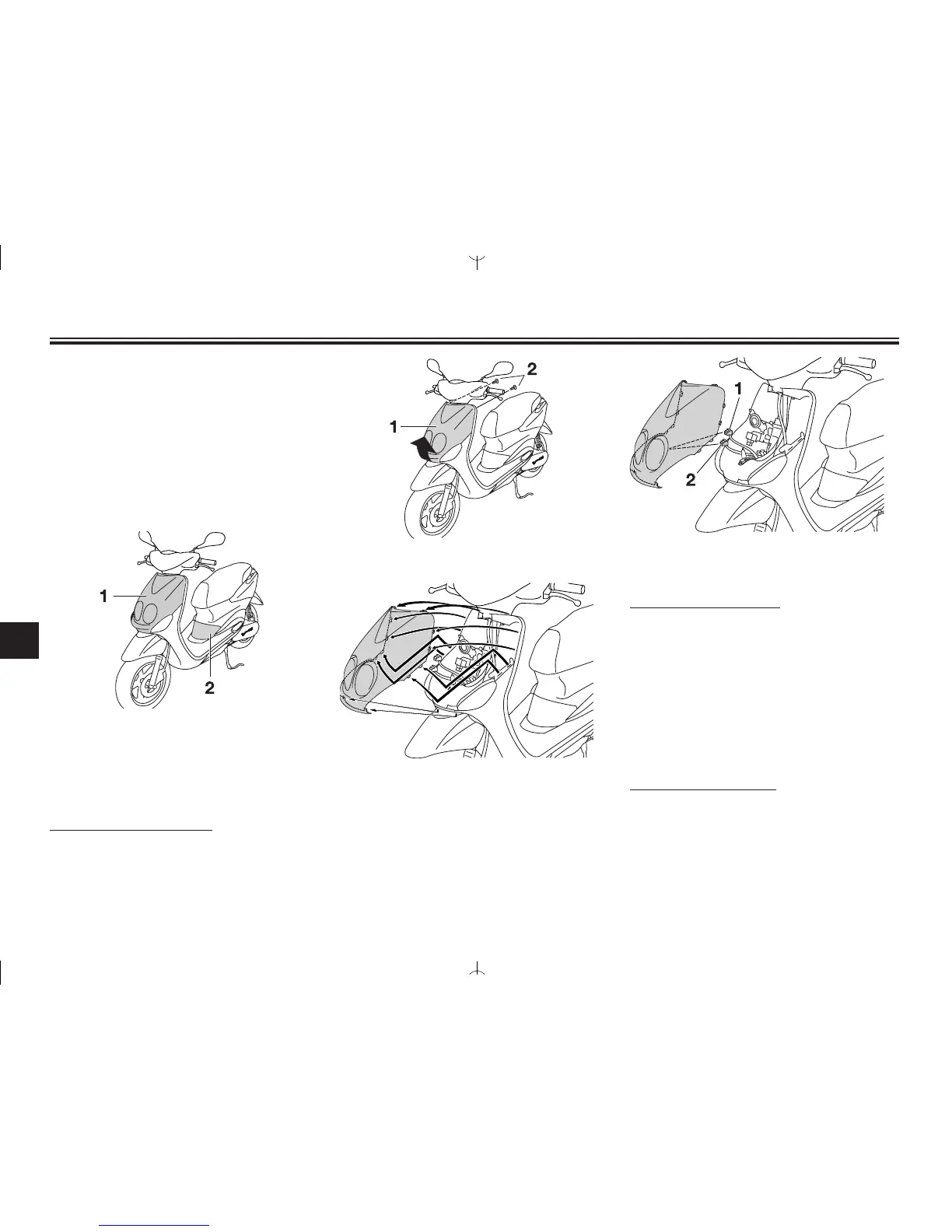

The cowling and panel shown need to
be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each
time the cowling or panel needs to be
removed and installed.
1. Cowling A
2. Panel A
EAU45470
Cowling A
To remove the cowling
1. Remove the screws, and then
pull the cowling off as shown.
1. Cowling A
2. Screw
2. Disconnect the headlight coupler,
and the auxiliary light lead cou-
pler.
1. Headlight coupler
2. Auxiliary light lead coupler
To install the cowling
1. Connect the headlight coupler,
and the auxiliary light lead cou-
pler.
2. Place the cowling in the original
position, and then install the
screws.
EAU19281
Panel A
To remove the panel
Remove the screw, and then pull the
panel off as shown.
