EAUS2010
Front brake lever

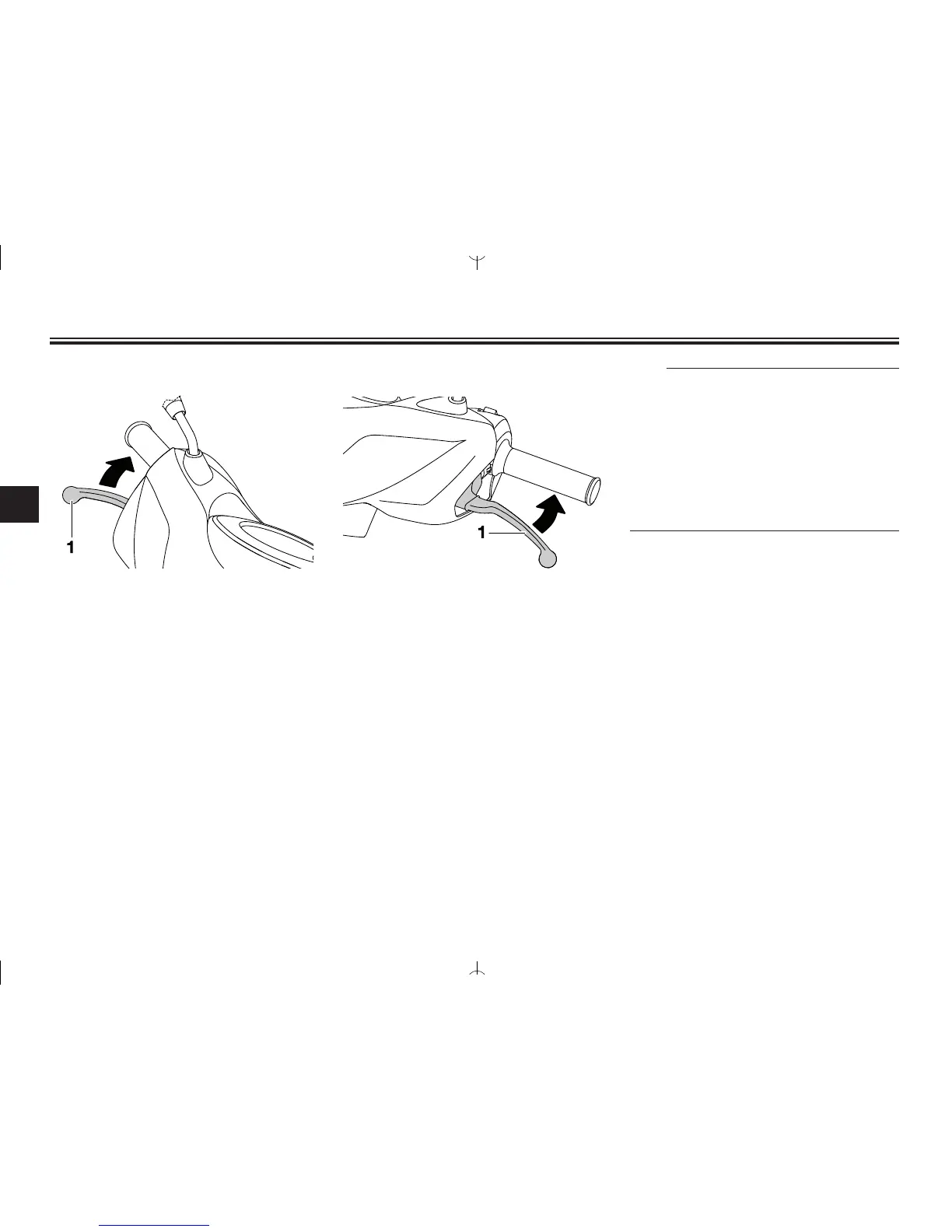

1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
This model is equipped with a unified
brake system.
As this system is mechanical, additio-
nal free play can be felt in the front
brake lever when the rear brake lever
is being applied. See "Rear brake
lever" for detailed information on the
unified brake system.
EAUS1960
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull the lever toward the hand-
lebar grip.
This model is equipped with a unified
brake system.
When pulling the rear brake lever, the
rear brake and a portion of the front
brake are applied. For full braking
performance, apply both brake levers
simultaneously.
TIP
G As the unified brake system is
mechanical, additional free play
can be felt in the front brake lever
when the rear brake lever is being
pulled.
G The unified brake system does
not function when the front brake
is applied alone.
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
