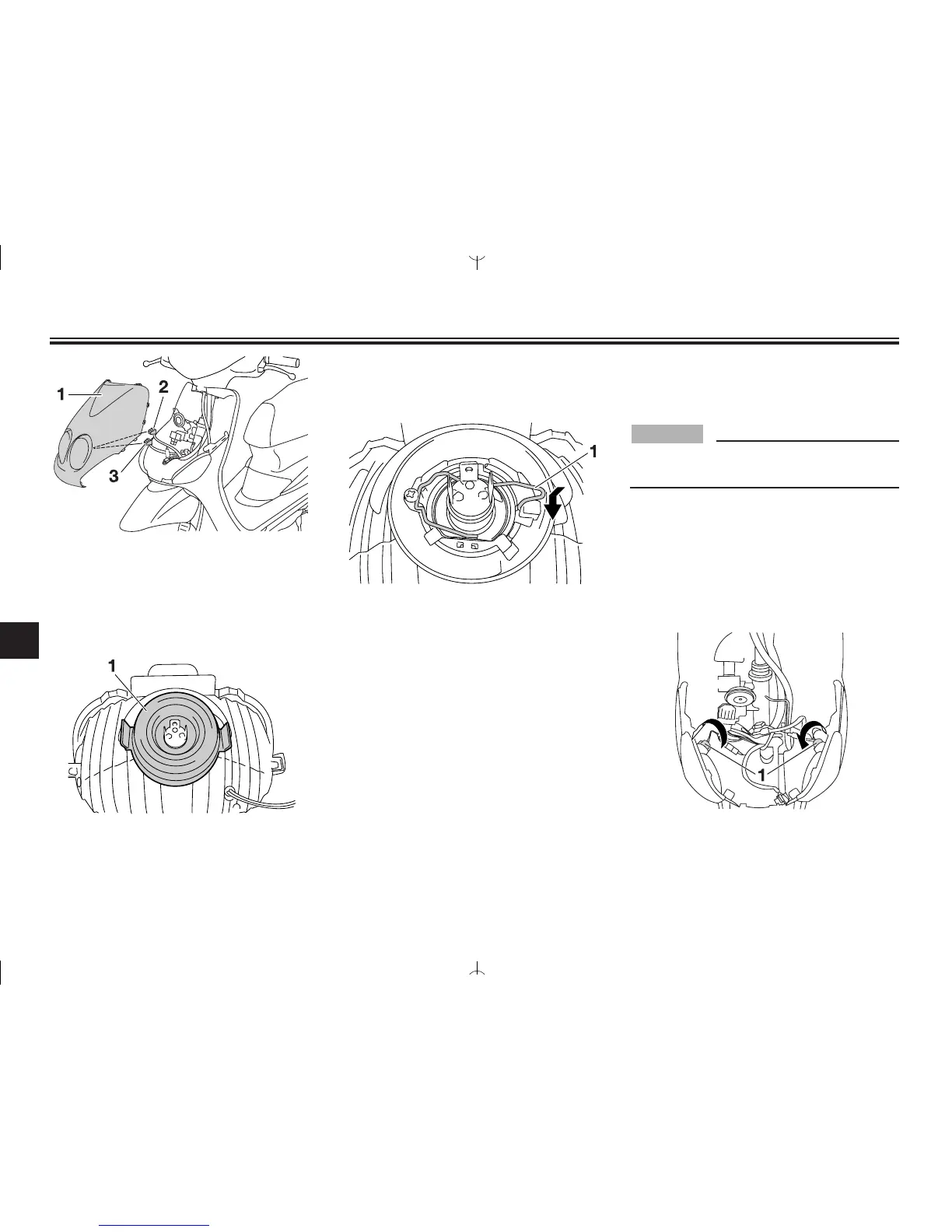

1. Cowling
2. Headlight coupler
3. Auxiliary light lead connector
4. Remove the headlight bulb
cover.
1. Headlight bulb cover
5. Unhook the headlight bulb hol-
der, and then remove the burnt-
out bulb.
1. Headlight bulb holder
6. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
7. Install the headlight bulb cover.
8. Connect the headlight coupler.
9. Install the cowling.
10. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAUT1262
Replacing a front turn signal
light bulb
ECA10670
It is advisable to have a Yamaha
dealer perform this job.
1. Place the scooter on the centers-
tand.
2. Remove cowling A. (See page
6-6).
3. Remove the socket (together
with the bulb) by turning it coun-
terclockwise.
1. Turn signal light bulb socket
4. Remove the burnt-out bulb by
pushing it in and turning it coun-
terclockwise.
To Next Page
