EAU22170

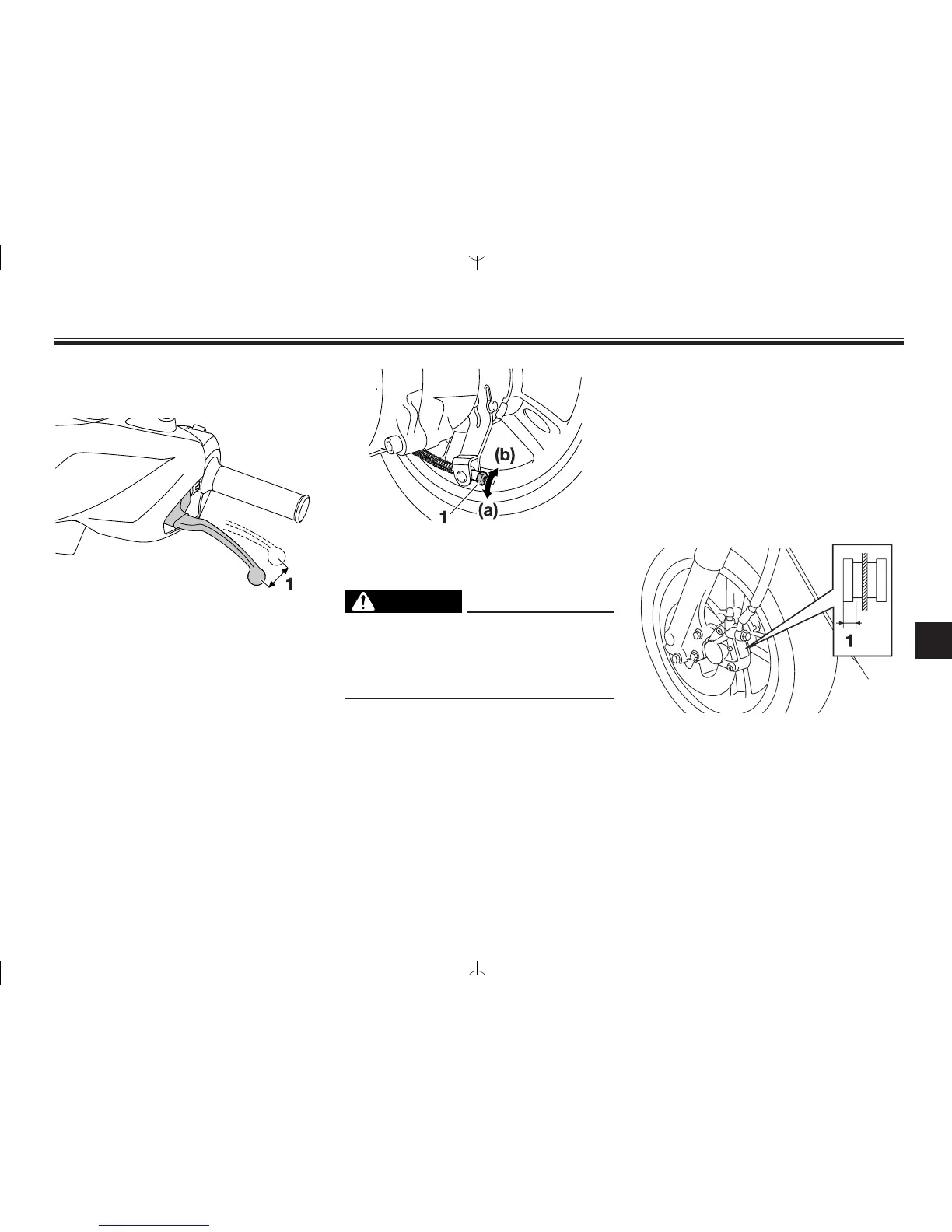

Adjusting the rear brake
lever free play
1. Rear brake lever free play
The brake lever free play should mea-
sure 10.0-20.0 mm (0.39-0.79 in) as
shown. Periodically check the brake
lever free play and, if necessary,
adjust it as follows.
To increase the brake lever free play,
turn the adjusting nut at the brake
shoe plate in direction (a). To decrea-
se the brake lever free play, turn the
adjusting nut in direction (b).
1. Adjusting nut
EWA10650
If proper adjustment cannot be
obtained as described, have a
Yamaha dealer make this adjust-
ment.
EAU22380
Checking the front brake
pads and rear brake shoes
The front brake pads and the rear bra-
ke shoes must be checked for wear at
the intervals specified in the periodic
maintenance and lubrication chart.
EAU22400
Front brake pads
1. Lining thickness
Check each front brake pad for
damage and measure the lining thick-
ness. If a brake pad is damaged or if
the lining thickness is less than
3.1 mm (0.12 in), have a Yamaha dea-
ler replace the brake pads as a set.
