Front and rear panel 15
EMX66M—Owner’s Manual

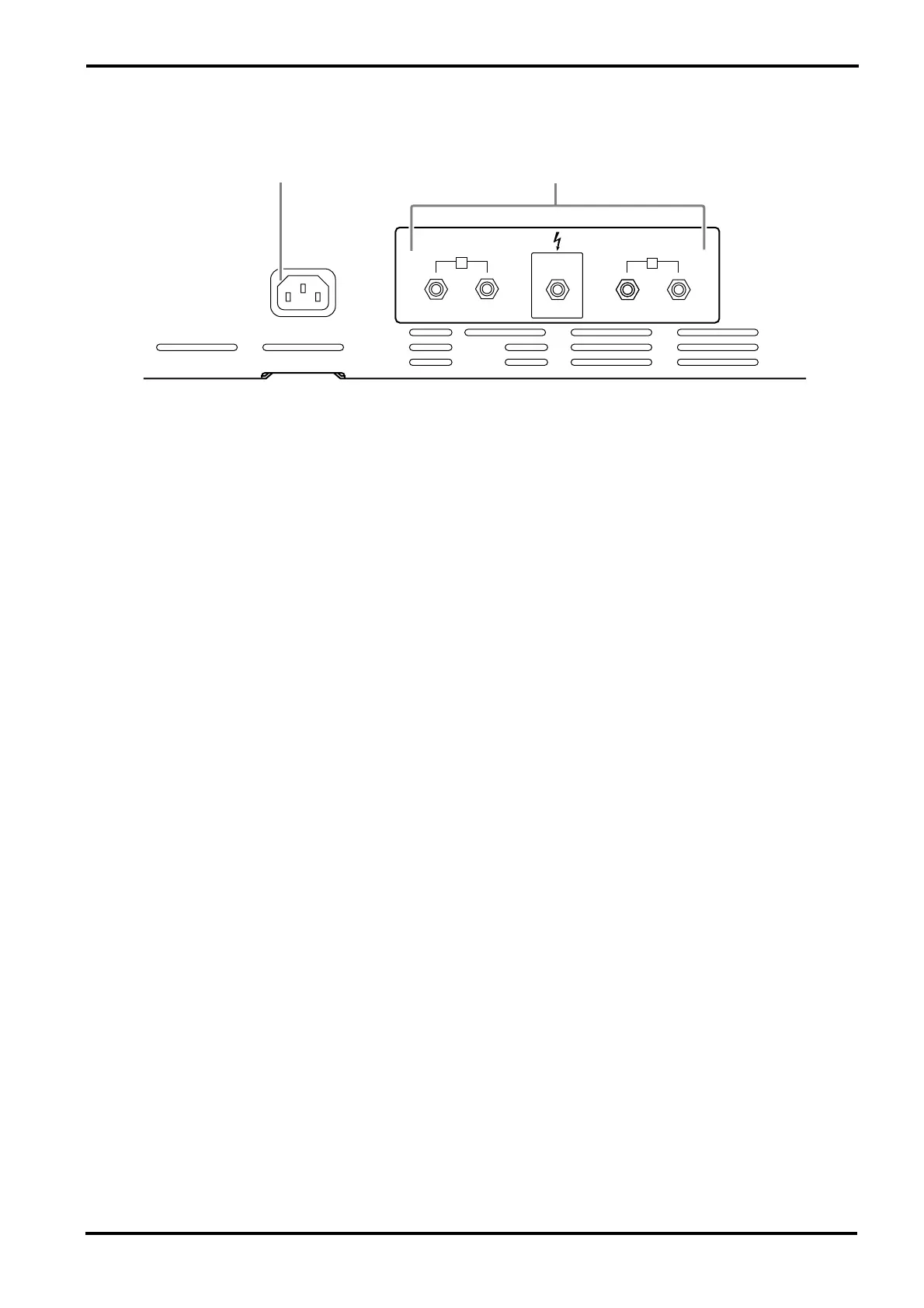

Rear panel
1 Speaker output jacks (SPEAKERS)
Connect speakers here. The EMX66M has two
internal power amplifiers. There are three ways in
which speakers can be connected to the
EMX66M.
• Two-channel connection
• Two-channel parallel connection
• Bridge connection
At this time, use the power amp select switch
J
on the control panel to select a signal sent to the
correct jacks.
Refer to the “Speaker connection” section on the
next page.
2 AC IN socket
Connect the included power cord to this socket.
Connect the plug of the power cord to an AC out-
let that meets the requirements stated in the spec-
ifications in this document.
B
BRIDGE
AC IN
1122
SPEAKERS
1
2
B
A
To Next Page
