16 Installation/Connection
EMX66M—Owner’s Manual
Installation/Connection

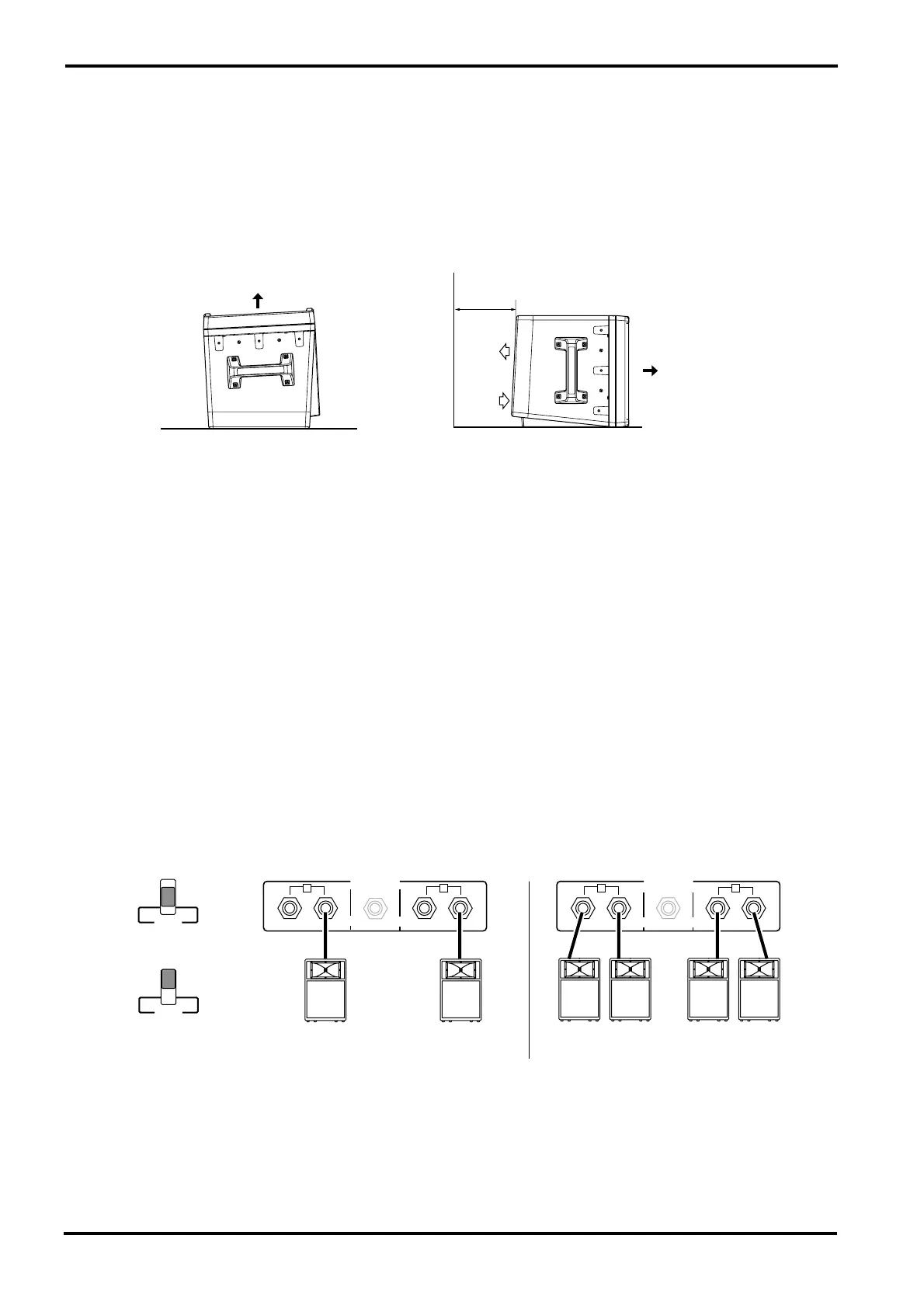

Installation
The EMX66M uses a forced cooling system with intake on the bottom of the rear panel and exhaust on the
top of the rear panel to avoid blocking the heated air flow.
Connection
When connecting various devices, be sure to use cables and plugs of the appropriate standard.
Use dedicated speaker cables to connect the speakers to the speaker jacks.
Speaker connection
There are three ways in which speakers can be connected to the EMX66M.
The speaker impedance requirement varies depending on how you connect the speakers. Refer to the dia-
grams below to make sure the speaker impedance will not be lower than the specified value.
■ When the power amp select switch is set to MAIN-MON or MAIN-MAIN:
• Two-channel connection
Two 4-8Ω speakers can be connected to either SPEAKERS jack 1 or jack 2 of channels A and B. If you are
using speakers rated at 4Ω, the maximum output would be 300W + 300W.
• Two-channel parallel connection
Two 8-16Ω speakers can be connected to both SPEAKERS jack 1 and jack 2 of channels A and B. If you are
using speakers rated at 8Ω, the maximum output would be 300W + 300W.
NO NO
Front
Front
15cm
or less
Exhaust
Intake
BRIDGE
1122
SPEAKERS
BRIDGE
1122
4Ω–8Ω 4Ω–8Ω
8Ω–16Ω8Ω–16Ω 8Ω–16Ω 8Ω–16Ω
SPEAKERS
MON
MAIN
MAIN
MAIN
MAIN
BRIDGE
MON
MAIN
MAIN
MAIN
MAIN
BRIDGE
B
A

Two-channel connection
or
No
connection
Main
Speaker
Main
Speakers
Main/Monitor
Speaker
Main/Monitor
Speakers
Two-channel parallel connection
No
connection
B
A
