18 Installation/Connection
EMX66M—Owner’s Manual

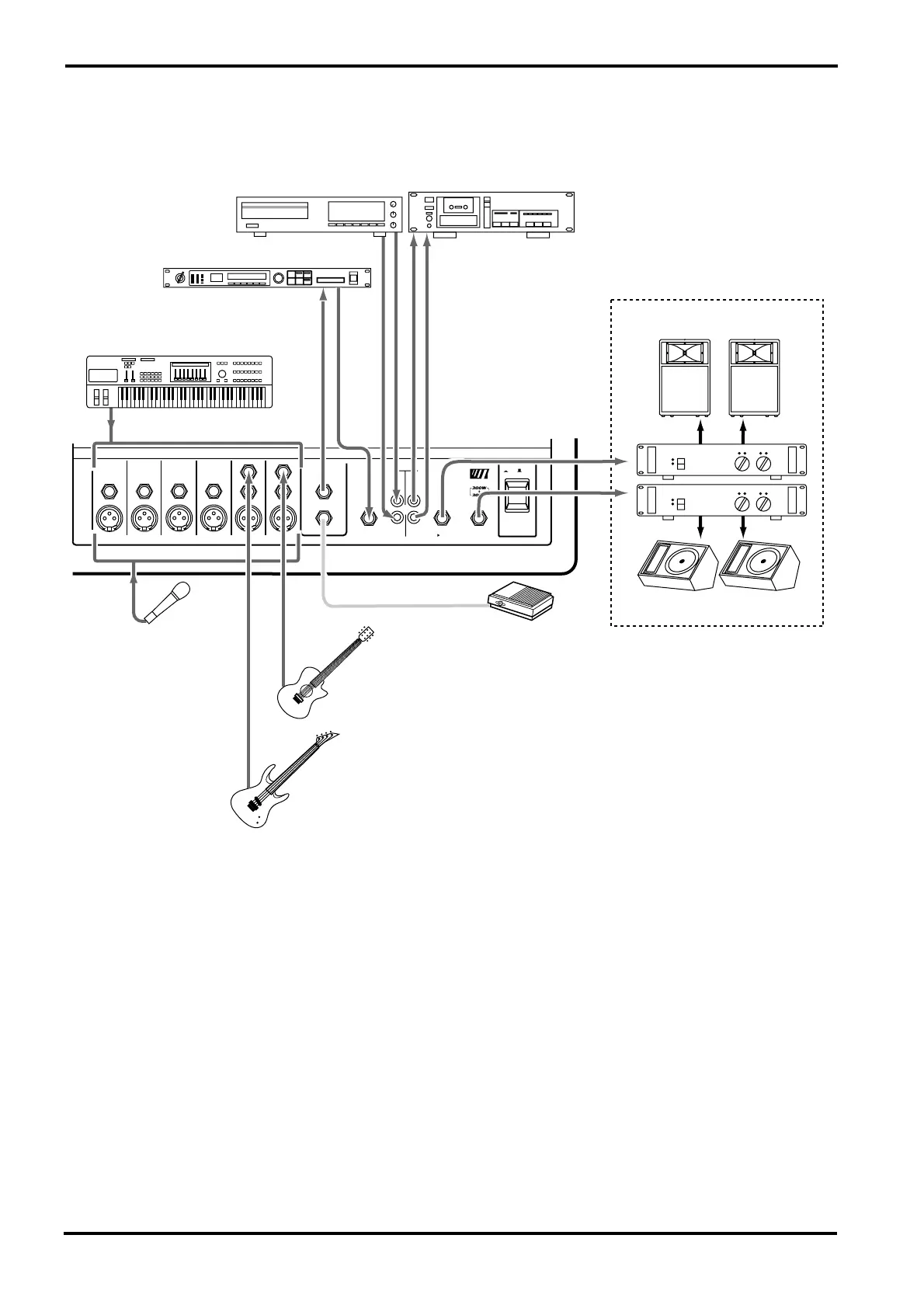

■ Example connections
1
2
11
22
1
2
EEEngine
SEE REAR PANEL CAUTION
Hi-Z
Hi-Z
Hi-Z
Hi-Z
Low-Z
Low-Z
Low-Z
Low-Z
LINE
MIC
MIC
Super Hi-Z
EFFECT OUT
FOOT SW
AUX IN
INPUT TO MAIN
OUT PUT
2TR
IN
REC
OUT
MAIN
MONITOR
ON / OFF
88
*1
The figure above shows appropriate jacks to
connect each instrument.
*1. Although this example shows an external effects
processor and footswitch, which is used to turn
on and off the built-in digital effects processor,
connected to the EMX66M, in practice, only one
effects processor, internal or external, will be
used at a time, so the footswitch is not required
when using external effects.
* The Low-Z and Hi-Z input of each channel can-
not be used simultaneously.
Electric bass
Microphone
Effects processor
Recorder (Cassette, DAT, MD)
CD player
Synthesizer,
Drum machine,
Guitar processor
Footswitch
(YAMAHA FC5)
Electric-acoustic
guitar
Normally, connect speakers to the
jacks on the rear panel. If more
speaker outputs are needed, use the
MAIN jack and the MONITOR jack for
additional outputs.
Monitors Speakers
Main Speakers
Power AMP
To Next Page
