CONNECTIONS
To connect this unit to your network, plug one end of a network cable (CAT-5 or higher straight cable) into the LAN port
of this unit, and plug the other end into one of the LAN ports on your router that supports the DHCP (Dynamic Host
Configuration Protocol) server function. The following diagram shows a connection example where this unit is connected
to one of the LAN ports on a 4-port router. To enjoy music files saved on your PC and YAMAHA MCX-2000 or access
the Internet radio, each device must be connected properly in the network.
If the DHCP server function on your router is disabled, you need to configure the network settings manually (see page 90).

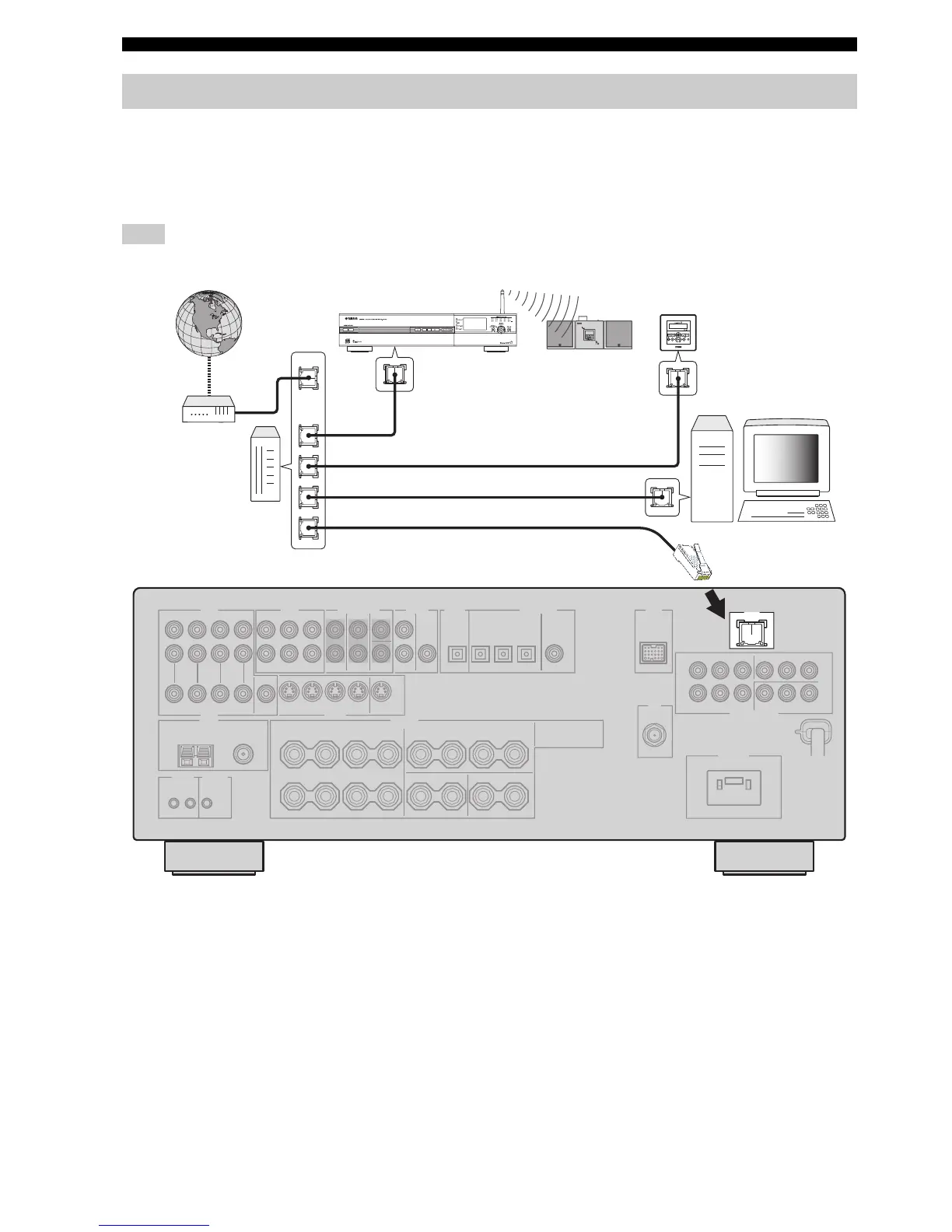

Connecting the network
Note
LAN
WAN
LAN
Router
PC
Modem
YAMAHA MCX-2000
Internet
YAMAHA MCX-C15
YAMAHA MCX-A10
(with optional
speakers)
Network cable
