RX-V750/DSP-AX750/DSP-AX750SE
RX-V650/HTR-5760
2
RX-V750/DSP-AX750/DSP-AX750SE
RX-V650/HTR-5760
■ TO SERVICE PERSONNEL
1. Critical Components Information
Components having special characteristics are marked Z
and must be replaced with parts having specifications equal
to those originally installed.

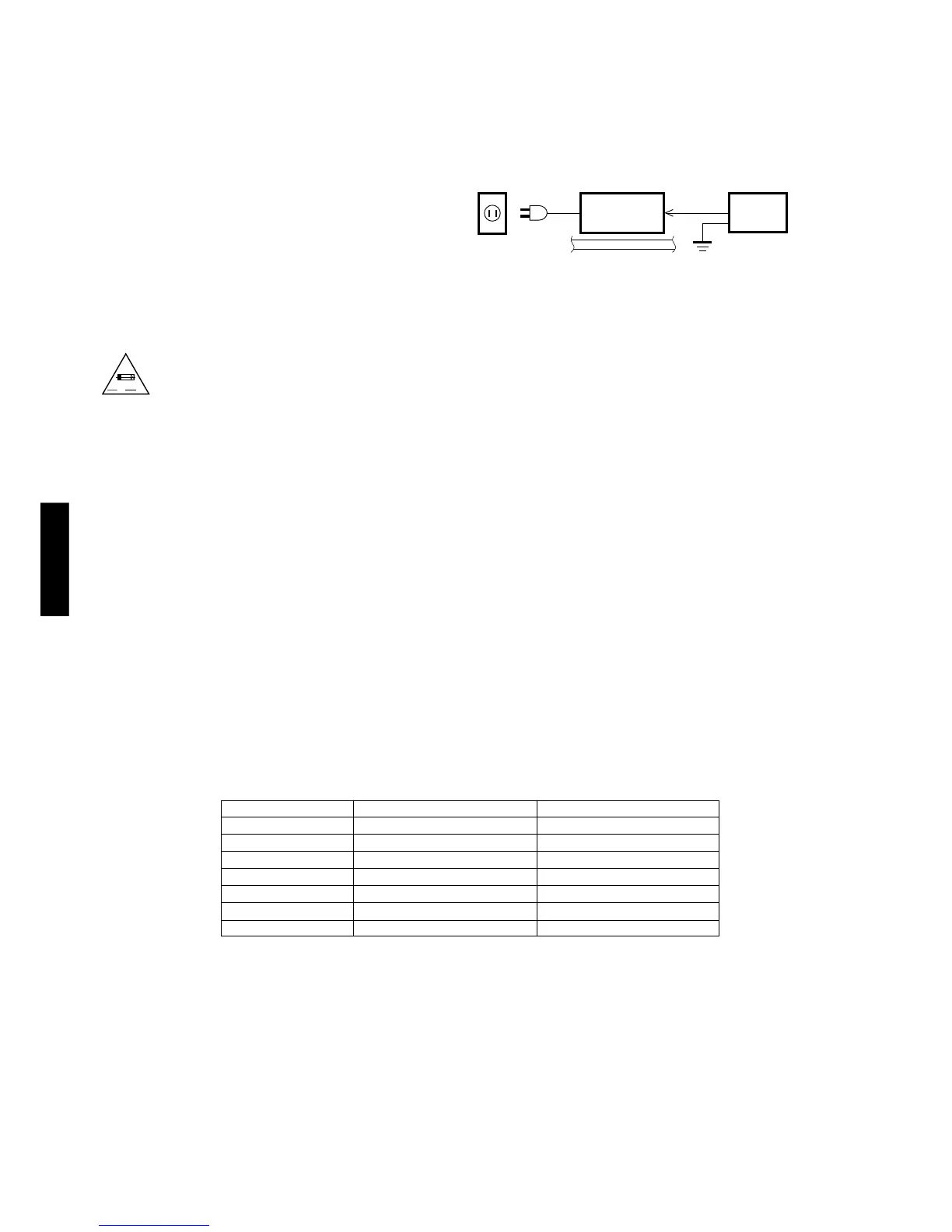

2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.
● Meter impedance should be equivalent to 1500 ohm shunted
by 0.15μF.
AC LEAKAGE
TESTER OR
EQUIVALENT
EQUIPMENT
UNDER TEST
INSULATING
TABLE
WALL
OUTLET
● Leakage current must not exceed 0.5mA.
● Be sure to test for leakage with the AC plug in both
polarities.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or
plastic (where applicable) components may also contain traces of chemicals found by the California Health and
Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR
ANY REASON WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes
or expose eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands
before handling food.
About Lead Free Solder / 無鉛ハンダについて
The P.C.B.s installed in this unit are soldered using the fol-
lowing solder.
本機に搭載されている基板のハンダ付けに使用されている
ハンダは下記の通りです。
無鉛ハンダにはいくつかの種類がありますが、修理時には
下記のような無鉛ハンダの使用を推奨します。
・Sn+Ag+Cu （錫 +銀 +銅）
・Sn+Cu （錫 +銅）
・Sn+Zn+Bi （錫 +亜鉛 +ビスマス）
Among some types of lead free solder currently available, it
is recommended to use one of the following types for the
repair work.
• Sn + Ag + Cu (tin + silver + copper)
• Sn + Cu (tin + copper)
• Sn + Zn + Bi (tin + zinc + bismuth)
“CAUTION”
“F1, F2 : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 10A, 125V FUSE.”
CAUTION
F1, F2 : REPLACE WITH SAME TYPE 10A, 125V FUSE.
ATTENTION
F1, F2 : UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 10A, 125V.
AV
Component Side / 部品面 Foil Side / ハンダ面
DSP P.C.B. Lead Solder / 鉛入りハンダ Lead Free Solder / 無鉛ハンダ
FUNCTION P.C.B. − Lead Free Solder / 無鉛ハンダ
OPERATION P.C.B. − Lead Free Solder / 無鉛ハンダ
MAIN P.C.B. − Lead Free Solder / 無鉛ハンダ
POWER P.C.B. − Lead Free Solder / 無鉛ハンダ
SUB TRANS P.C.B. − Lead Free Solder / 無鉛ハンダ
CONVERSION P.C.B. Lead Solder / 鉛入りハンダ Lead Free Solder / 無鉛ハンダ
To Next Page
