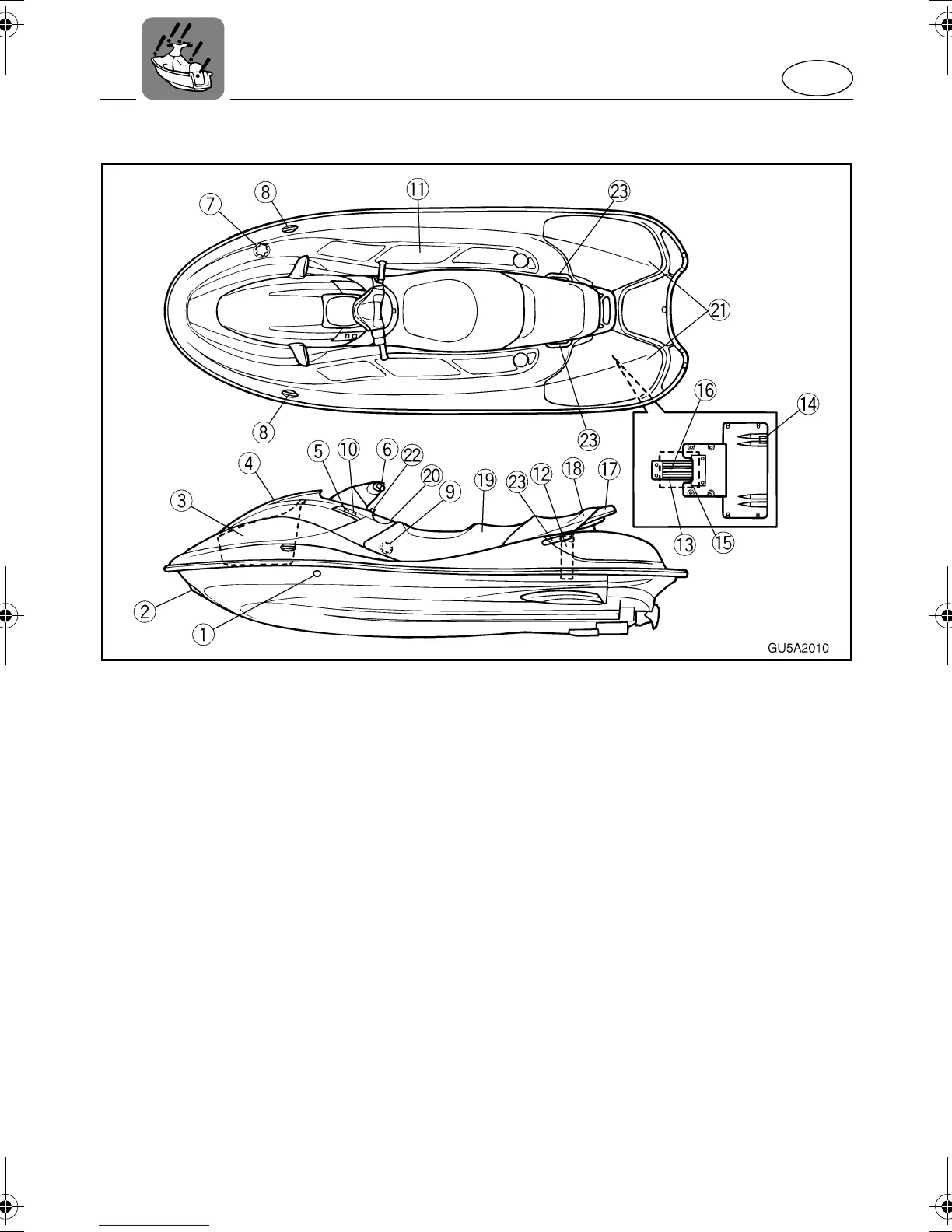

Location of main components
1
Cooling water pilot outlet
Use to verify cooling water flow.
2
Bow eye
Use to attach rope for transporting, mooring or
towing the watercraft in an emergency.
3
Front storage compartment
4
Hood
5
Fuel cock knob
Use to select either normal or reserve fuel flow
from the fuel tank to the carburetors, or to shut
off fuel flow.
6
Handlebars
Use to control direction.
7
Fuel tank filler cap
8
Mooring eye
Use to attach a rope for mooring only.
9
Oil tank filler cap
0
Choke knob
Use to start a cold engine.
A
Footwell
Use to place feet for balance.
B
Fire extinguisher container
Use to store the fire extinguisher.
C
Intake grate
Prevents debris from getting into the jet pump.
D
Speed sensor
E
Jet intake
F
Drive shaft
Transmits power from engine to the jet pump.
G
Handgrip
Use for support when boarding the watercraft
or when seated facing rearward and acting as
a spotter for a water-skier.
H
Rear seat
I
Front seat
J
Glove compartment
K
Rear storage compartments
L
Tilt lever
Use to adjust the tilt of the handlebars.
M
Side grips
Use for support when riding as a passenger.
