INSTRUMENT AND CONTROL FUNCTIONS
3
EAU04428
Speedometer unit
Speedometer unit
The speedometer unit is equipped
with the following:
8 a digital speedometer (which
shows riding speed)
8 an odometer (which shows the
total distance traveled)
8 two tripmeters (which show the
distance traveled since they
were last set to zero)

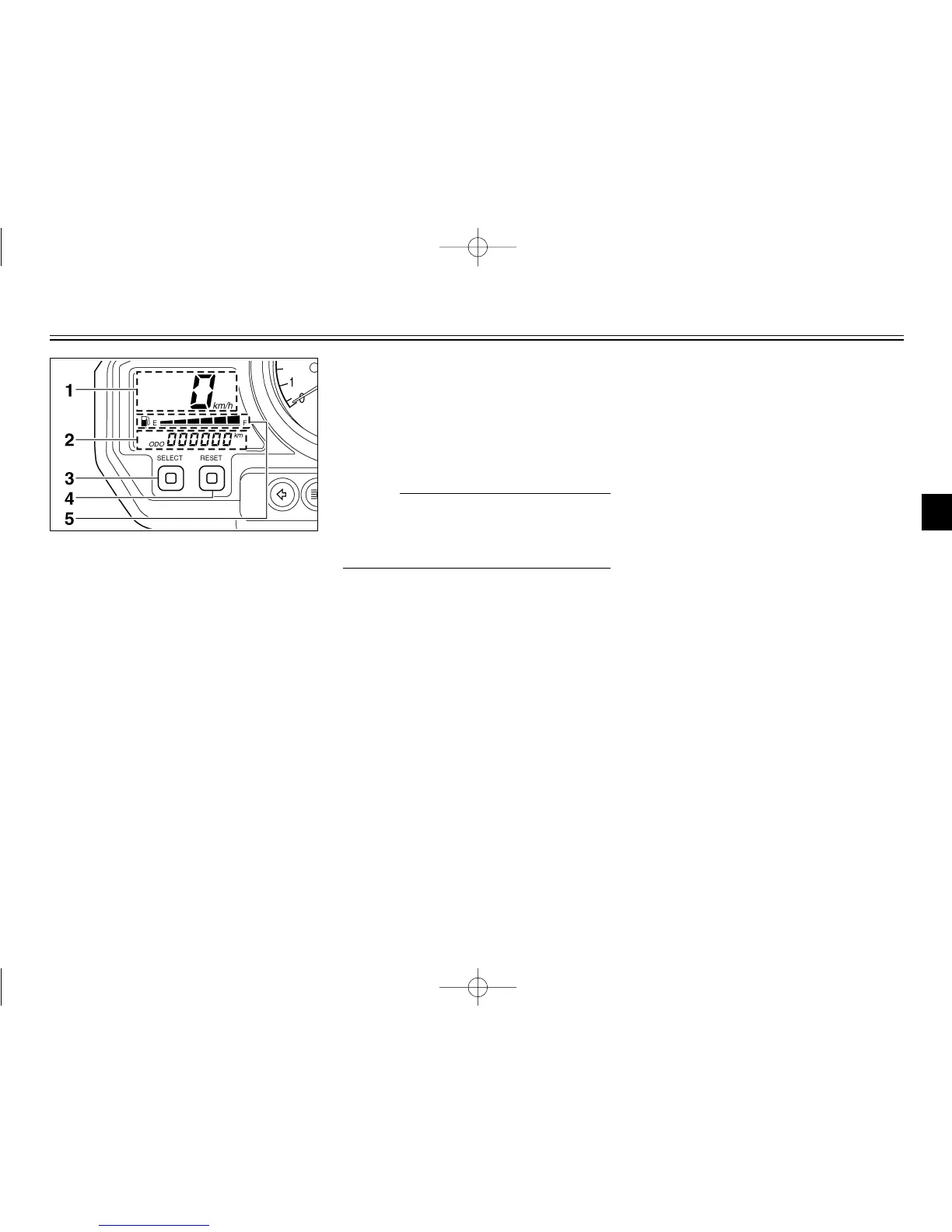

1. Speedometer
2. Odometer/tripmeter
3. “SELECT” button
4. “RESET” button
5. Fuel gauge
If the fuel level warning symbol flash-
es (see page 3-2), the odometer dis-
play will automatically change to the
fuel reserve tripmeter mode “TRIP F”
and start counting the distance trav-
eled from that point. In that case,
pushing the “SELECT” button switch-
es the display between the various
tripmeter and odometer modes in the
following order:
TRIP F → TRIP 1 → TRIP 2 → ODO
→ TRIP F
To reset a tripmeter, select it by
pushing the “SELECT” button, and
then push the “RESET” button. If you
do not reset the fuel reserve tripmeter
manually, it will reset itself automati-
cally and the display will return to
“TRIP 1” after refueling and traveling
5 km.
8 a fuel reserve tripmeter (which
shows the distance traveled on
the fuel reserve)
8 a fuel gauge
8 a self-diagnosis device
NOTE:
Be sure to turn the key to “ON”
before using the “SELECT” and
“RESET” buttons.
Odometer and tripmeter modes
Pushing the “SELECT” button switch-
es the display between the odometer
mode “ODO” and the tripmeter
modes “TRIP 1” and “TRIP 2” in the
following order:
ODO → TRIP 1 → TRIP 2 → ODO
