6-5
PERIODIC MAINTENANCE AND MINOR REPAIR
6
EAU01139
Removing and installing
cowlings and panels
Cowlings and panels, removing and installing
The cowlings and panels shown
above need to be removed to per-
form some of the maintenance jobs
described in this chapter. Refer to
this section each time a cowling or
panel needs to be removed and
installed.

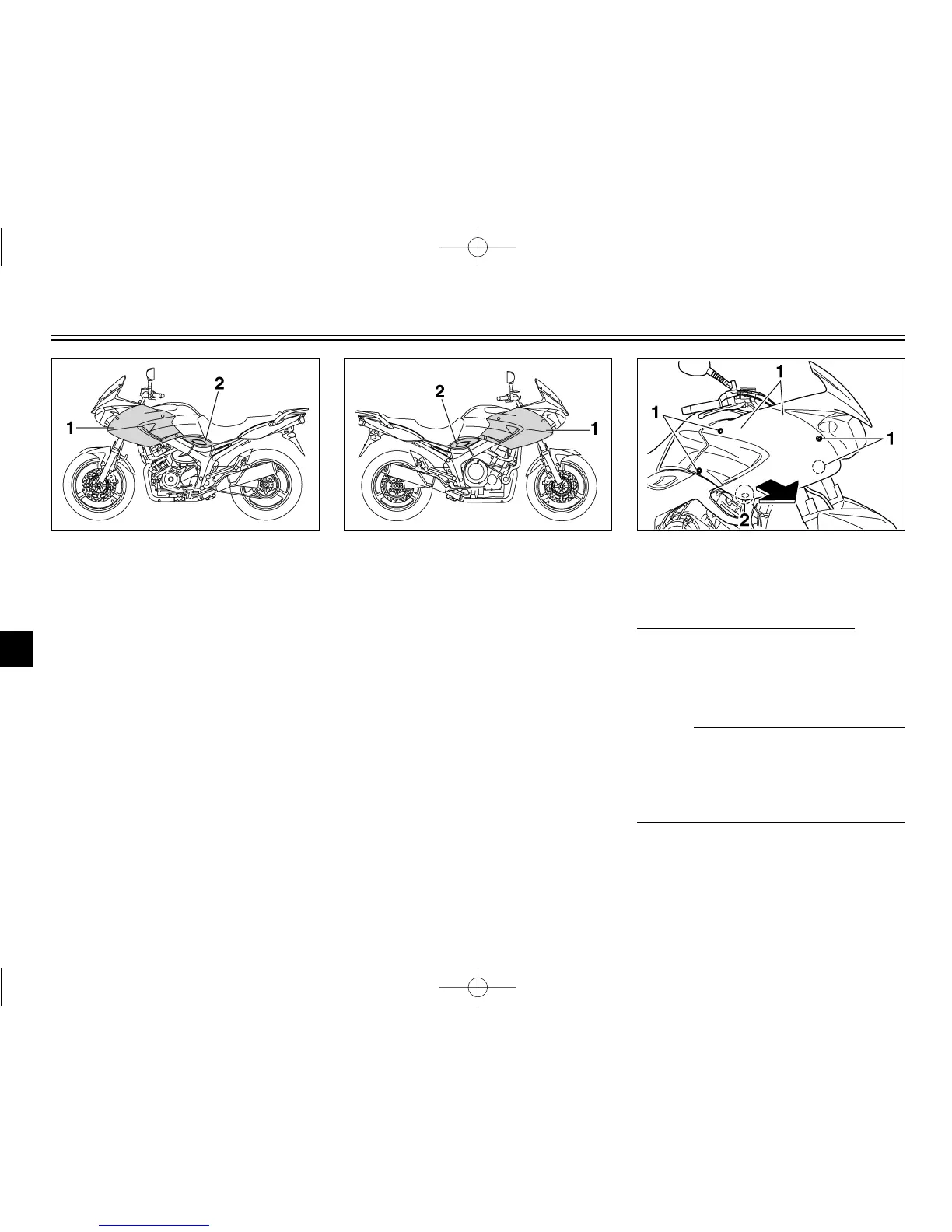

1. Cowling A
2. Panel A
EAU04937
Cowlings A and B
To remove one of the cowlings
Remove the cowling screws and the
quick fastener, and then pull the
cowling off as shown.
NOTE:
The quick fastener is removed by
pushing the center pin in with a
screwdriver, and then pulling the fas-
tener out.
1. Screw (×6)
2. Quick fastener
1. Cowling B
2. Panel B
5PS-28199-E1 8/29/02 9:16 AM Page 50
