6 En
Part names and functions
a SIRIUS indicator
Lights up when a SiriusConnect tuner is selected as an input
source.
b XM indicator
Lights up when an XM tuner is selected as an input source.
c HDMI indicator
Lights up during normal communication when HDMI is
selected as an input source.
d CINEMA DSP indicator
Lights up when a sound field program that uses CINEMA DSP
is selected.
e CINEMA DSP 3D indicator
Lights up when CINEMA DSP 3D is activated.
f Tuner indicator
Lights up during receiving radio broadcast signals from an FM/
AM station (see page 29).
g SLEEP indicator
Lights up when the sleep timer is activated (see page 24).
h ZONE2 indicator
Lights up when the zone functions is turned on.
i VOLUME indicator
Displays volume levels.
j MUTE indicator
Flashes when audio is muted.
k Cursor indicators
Light up if corresponding cursors on the remote control are
available for operations.
l Multi information display
Displays menu items and settings for the current operation.
m Speaker indicators
Indicate speaker terminals from which signals are currently
output.

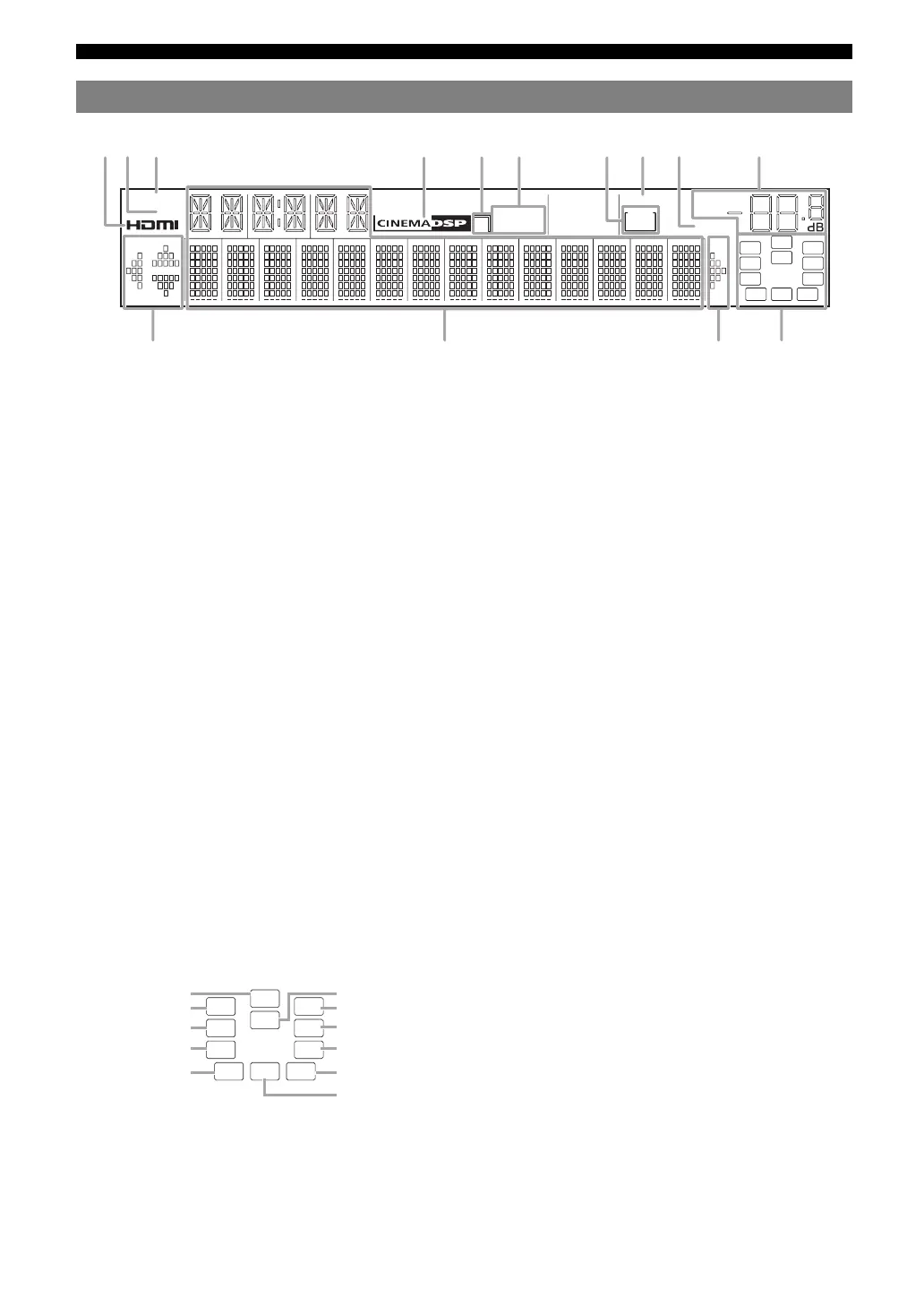

Front panel display
STEREO
SLEEP
VOL.
TUNED
PL PR
SW
C
LR
SL SR
SBL SB SBR
MUTE
SIRIUS
XM
3
ZONE
2
kl mk
SW
C
LR
SL SR
SBL SB SBR
PL PR
Subwoofer
Front L
Surround L
Surround back L
Center
Front R
Surround R
Surround back R
Surround back
Presence L Presence R
