4 En
A MAIN ZONE ON/OFF
Switches this unit between on and off (see page 18).
B PHONES jack
For plugging headphones (see page 23).
C ZONE2 ON/OFF
Switches the zone function on and off (see page 58).
D ZONE2 CONTROL
Enables operation of a receiver set in Zone2, including input
source switching, volume control and tuner operation, with the
main amplifier or remote control after this key is pressed.
E INFO
Changes information display screens on the front panel display
(see page 24).
F MEMORY
Registers FM/AM stations as preset stations (see page 30) or
XM/SIRIUS channels as preset channels (see page 33).
G PRESET l / h
Selects an FM/AM preset station (see page 30) or an XM/
SIRIUS preset channel (see page 33).
H FM/AM (CATEGORY l / h)
Change the tuner bands between FM and AM.
Select a channel category for a XM/SIRIUS.
I TUNING/CH l / h
Changes FM/AM frequencies or XM/SIRIUS tuner channels.
J SCENE
Switches between linked sets of input sources and sound field
programs (see page 22).
K TONE CONTROL
Adjusts high-frequency/low-frequency output of speakers (see
page 22).
L PROGRAM l / h
Changes sound field programs (see page 25).
M STRAIGHT
Changes a sound field program to straight decoding mode (see
page 28).
N PURE DIRECT
Changes mode to Pure Direct mode (see page 23). This key
lights up when Pure Direct mode is on.
O INPUT l / h
Selects an input source (see page 22).
P OPTIMIZER MIC jack
For connecting the supplied optimizer microphone and adjusting
output characteristics of speakers (see page 19).
Q VOLUME control
Controls the volume of this unit (see page 22).
R VIDEO (VIDEO AUX) jack
For connecting the video output cable of a camcorder or game
console (see page 17).
S AUDIO L/R (VIDEO AUX) jack
For connecting the audio output cable of a camcorder or game
console (see page 17).
T PORTABLE (VIDEO AUX) jack
For connecting the audio output cable of a portable music player
(see page 17).
U Front panel display
Displays information on this unit (see page 6).
V HDMI THROUGH
Lights up during pass-through output of an HDMI signal input
to this unit while this unit is on standby (see page 54).

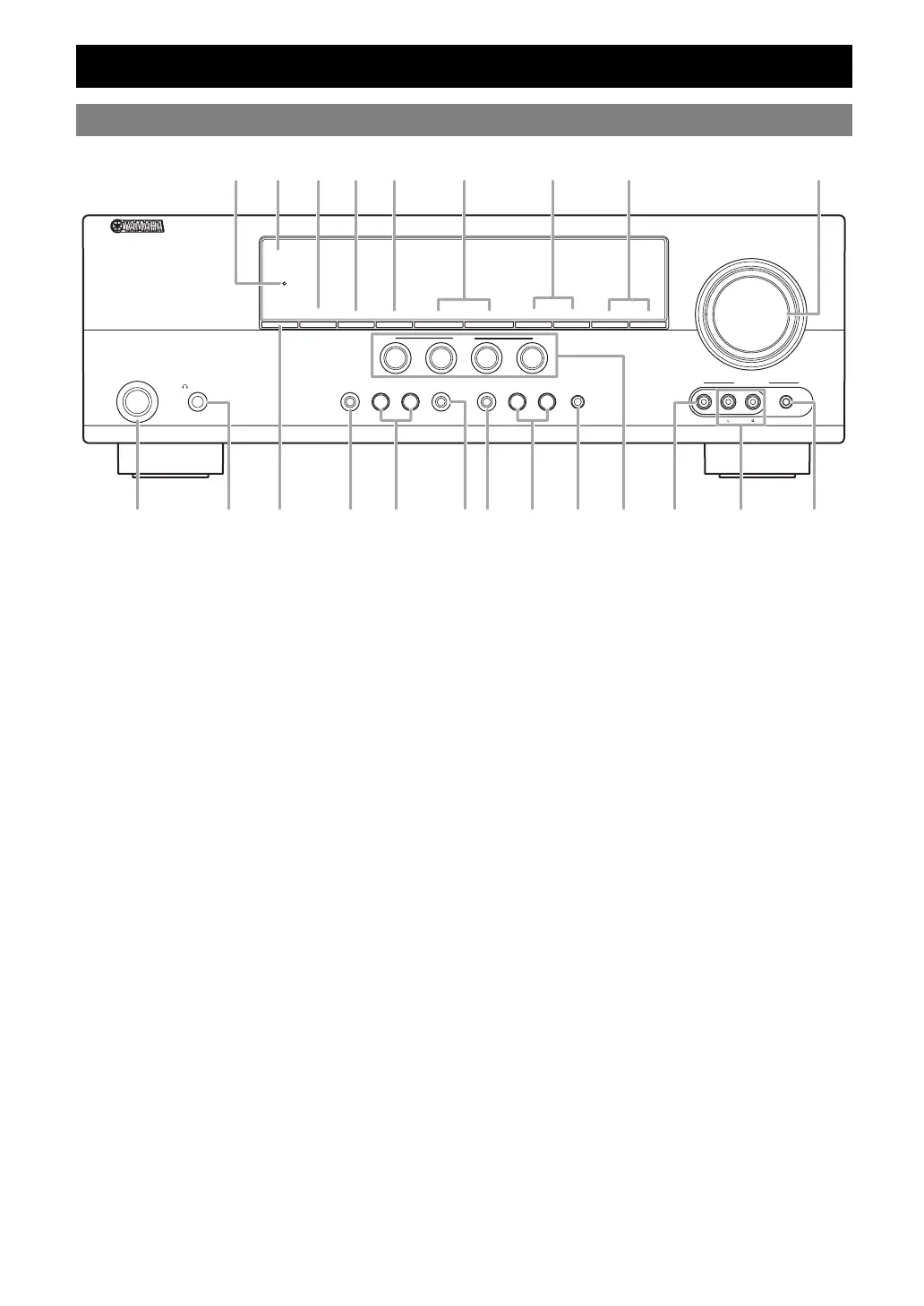

Part names and functions
Front panel
l
h
CATEGORY
FM AM
TUNING/CH
MAIN
ZONE
ON/OFF
PHONES
SILENT
CINEMA
TONE
CONTROL
PROGRAM
STRAIGHT
PURE DIRECT
INPUT
OPTIMIZER
MIC
VIDEO
AUDIO
PORTABLE
THROUGH
ZONE2
ON/OFF
INFO
MEMORY
VIDEO
AUX
VOLUME
ZONE2
CONTROL
HDMI
EFFECT
PRESET
l
h
l
h
l
h
l
h
BD/DVD
TV
CD
RADIO
SCENE
A
K NC PL O
J S TRMB
