REAR SHOCK ABSORBER ASSEMBLY
4-27
EAM20102
REAR SHOCK ABSORBER AS-
SEMBLY
EAM30065
REMOVING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Use a maintenance stand to raise the rear
wheel off the ground.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.

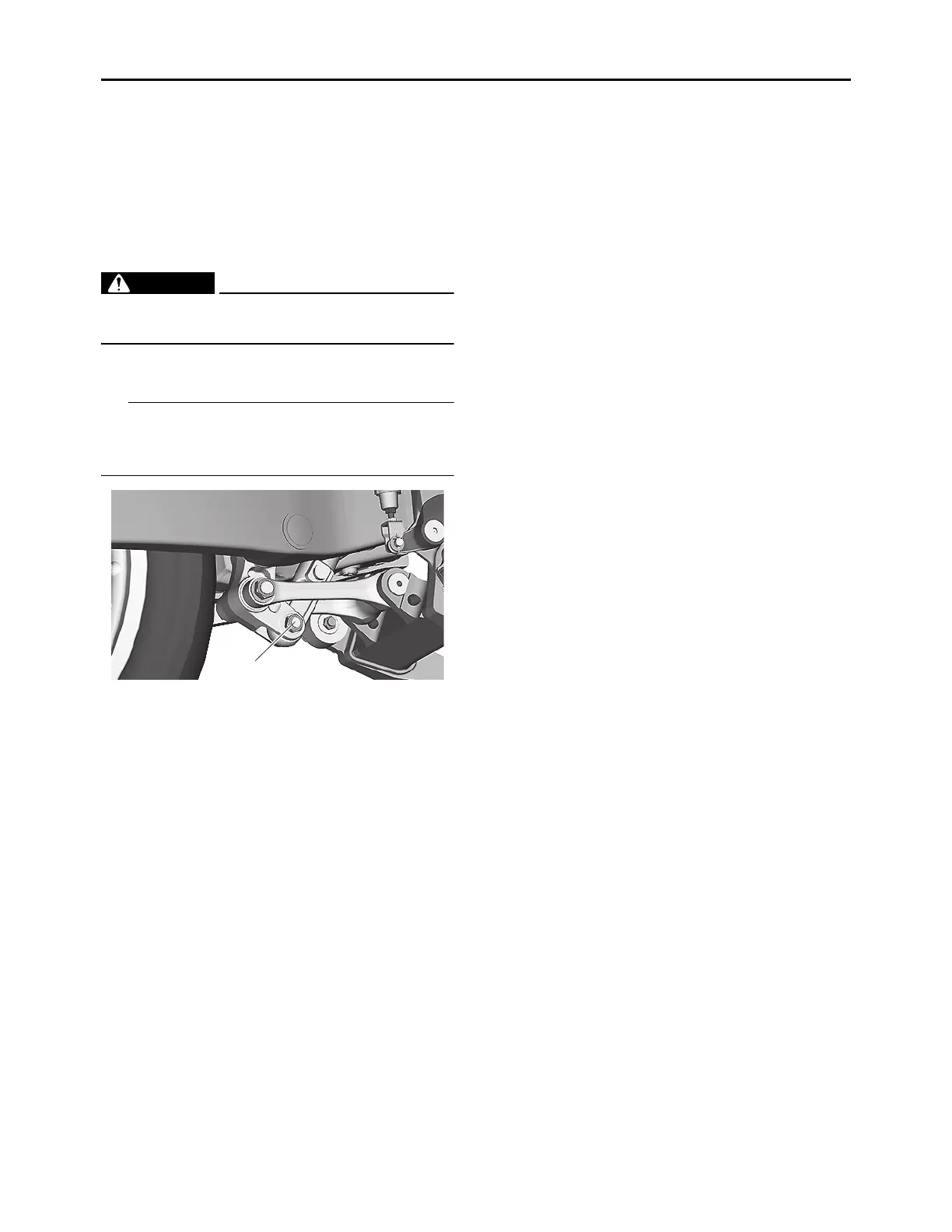

2. Remove:
• Rear shock absorber assembly lower bolt “1”
TIP
While removing the rear shock absorber assem-
bly lower bolt, hold the swingarm so that it does
not drop down.
3. Remove:
• Rear shock absorber assembly upper bolt
• Rear shock absorber assembly
EAM30067
CHECKING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Check:
• Rear shock absorber rod
Bends/damage  Replace the rear shock
absorber assembly.
• Rear shock absorber
Gas leaks/oil leaks  Replace the rear shock
absorber assembly.
• Spring
Damage/wear  Replace.
• Spring guide
Damage/wear  Replace.
• Bearing
Damage/wear  Replace.
• Bolt
Bends/damage/wear  Replace.
