Yamaha yz450f 2012 Service Manual

4-40

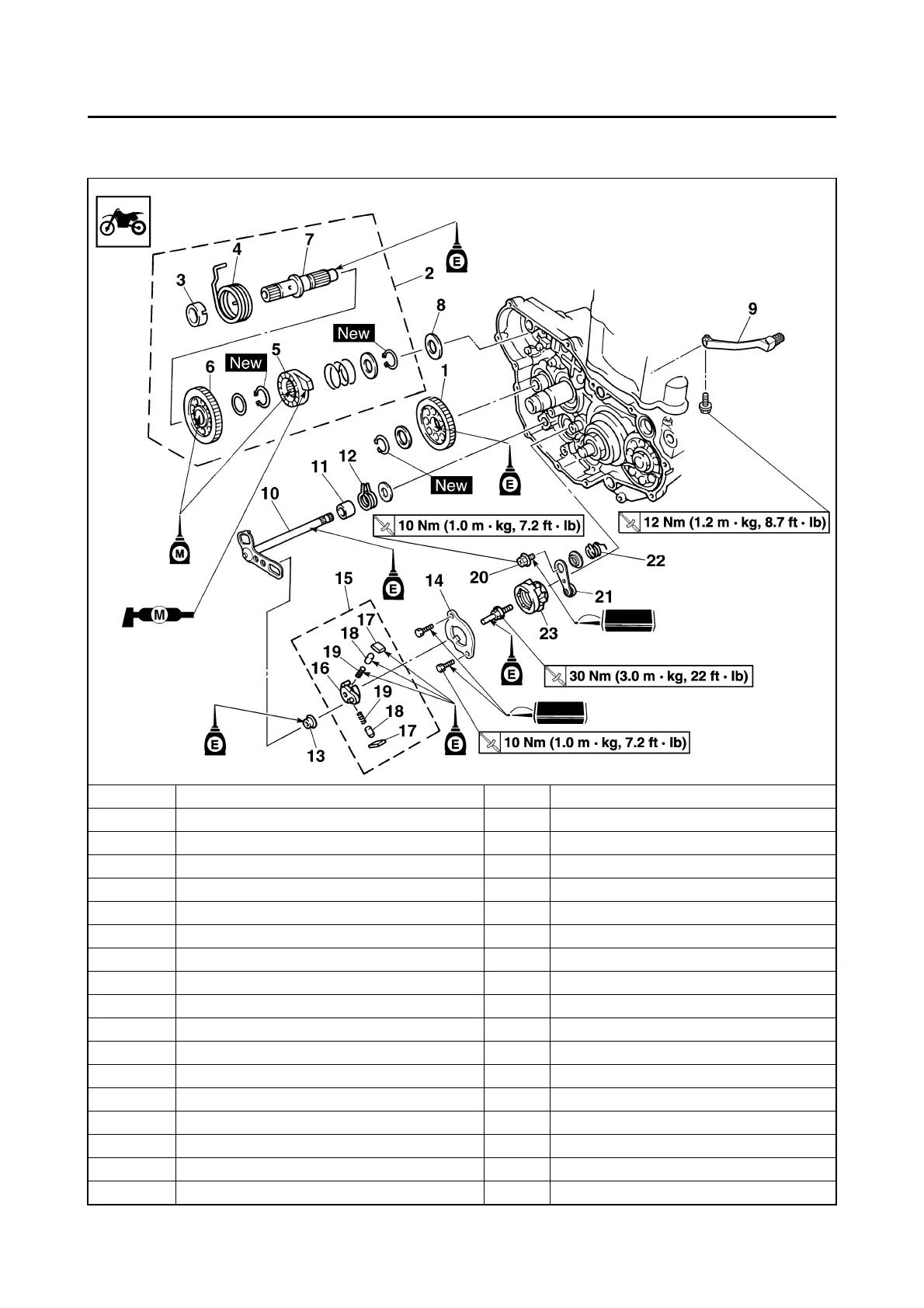

KICK SHAFT AND SHIFT SHAFT
KICK SHAFT AND SHIFT SHAFT
REMOVING THE KICK SHAFT AND SHIFT SHAFT
Order Part name Q'ty Remarks
Oil pump Refer to "OIL PUMP" section.
1 Kick idle gear 1
2 Kick shaft assembly 1 Refer to removal section.
3 Spring guide 1
4 Torsion spring 1
5 Ratchet wheel 1
6 Kick gear 1
7 Kick shaft 1
8 Washer 1
9 Shift pedal 1
10 Shift shaft 1
11 Collar 1
12 Torsion spring 1
13 Roller 1
14 Shift guide 1 Refer to removal section.
15 Shift lever assembly 1 Refer to removal section.
16 Shift lever 1

Yamaha yz450f 2012 Specifications

General

Bore x Stroke	97.0mm x 60.8mm
Compression Ratio	12.5:1
Fuel Delivery	Fuel Injection
Transmission	5-speed
Final Drive	Chain
Tires Front	80/100-21
Tires Rear	120/80-19
Wheelbase	58.7 in
Trail	4.6 in
Fuel Capacity	1.6 gal
Wet Weight	245 lb
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Ignition	TCI
Suspension Front	Telescopic fork, 12.2 in travel
Suspension Rear	Swingarm, 12.4 in travel
Brakes Front	Hydraulic single disc brake, 250mm
Brakes Rear	Single disc, 245 mm
