4-45
AC MAGNETO
AC MAGNETO

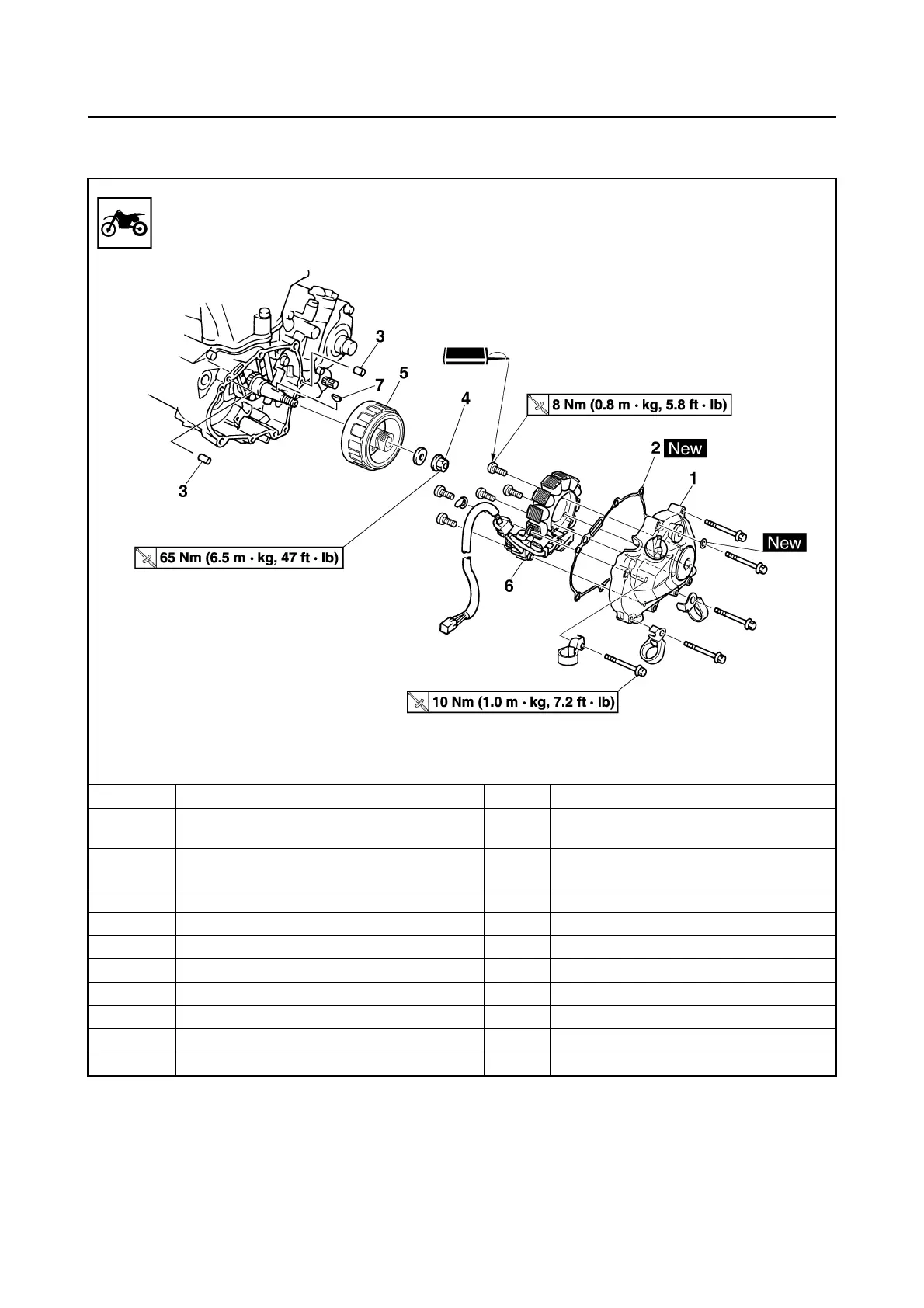

REMOVING THE AC MAGNETO
Order Part name Q'ty Remarks
Seat Refer to "SEAT AND SIDE COVERS" sec-
tion.
Fuel tank Refer to "FUEL TANK" section in the
CHAPER 6.
Disconnect the AC magneto lead
1 Left crankcase cover 1
2 Gasket 1
3 Dowel pin 2
4 Nut (rotor) 1 Refer to removal section.
5 Rotor 1 Refer to removal section.
6 Stator 1
7 Woodruff key 1
