7-3
7. OPERATE THE ENGINE
SA221/324/424 Operation Manual

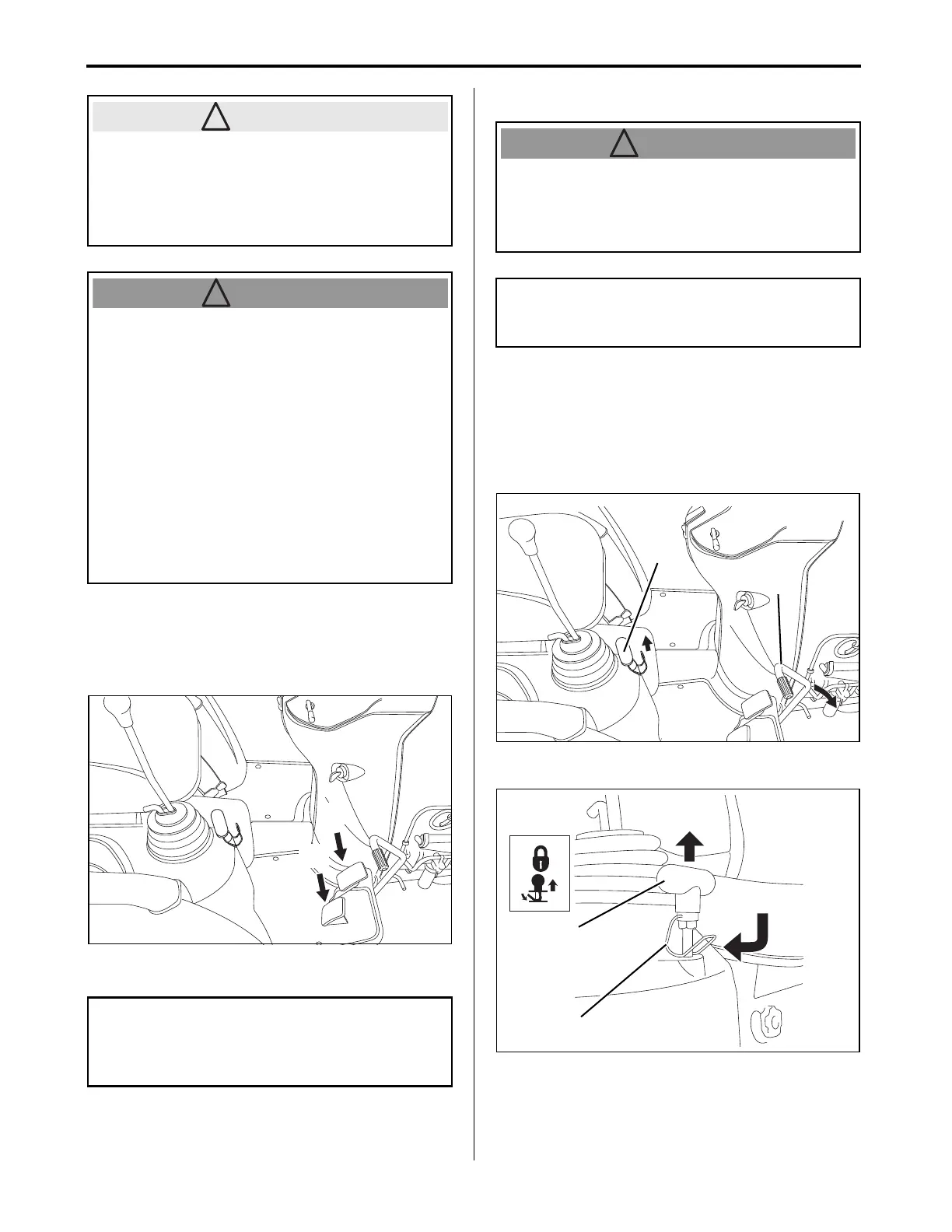

5. Release the forward and reverse drive
pedal to the N (neutral) position
1. Remove foot from the forward and reverse drive
pedal.
(A) Forward drive pedal
(B) Reverse drive pedal
6. Lock and Set the Parking Brake
1. Depress the brake pedal fully.
2. While depressing the brake pedals fully, pull up
the parking brake lock lever and set the parking
brake lock holder to lock securely.
3. Remove the foot from the brake pedal.
4. Make sure the parking brake is securely locked.
(A) Brake pedal
(B) Parking brake lock lever
(A) Parking brake lock lever
(B) Parking brake lock holder
(a) Upward: Lock the brake pedal.
(b) Push backward: Parking brake lock holder can be
applied as indicated by arrow. Refer to figure.
●Hold the retractable seatbelt with the right
hand when pressing the retractable seatbelt
quick release button.
●The retractable seatbelt flies to the right which
is highly dangerous.
●Positioning the retractable seatbelt far away
from the operator's abdominal area can be
dangerous in the event of an accident.
●Always ensure the retractable seatbelt is in
the lowest possible position relative to the
operator's abdominal area.
●The retractable seatbelt must be used only by
the operator.
●Do not under any circumstances use the
retractable seatbelt for two or more persons.
●Do not under any circumstances use the
retractable seatbelt to hold an object to the
operator's body.
NOTE
●While the parking brake is engaged, the forward
and reverse drive pedal is locked to the N
(neutral) position.
●When engaging the parking brake:
• Confirm that the parking brake lock holder is
securely applied and the parking brake lock
lever is locked.
IMPORTANT
●Periodically clean and apply oil to prevent dust or
rust that could interfere with proper operation.
SA221_324_424_OperatorsManual.book 3 ページ ２０１８年６月４日 月曜日 午後５時１９分
