SAIL-DRIVE OPERATION
20 SD60 Operation Manual
Gear Shift Operation
Make certain that control rod or cable is
easily movable.
1. Lever travel:
Minimum travel of gear shift lever (O - A
= O - B) must be 35 mm (1.3/8 in.) for
outer pivot point and 30 mm (1.3/16 in.)
for inner pivot point.
2. Lever position: In neutral position
perpendicular to control rod or cable.
Gear shift lever can be fixed in any
position by means of clamping screw.
Minimum distance between gear shift
lever and cover 0.5 mm (0.02 in.).
Opening or loosening of cover requires
renewed adjustment (by specialized
personnel only).
3. Regular checks are required to ensure
the strict observance of item 1 and 2
above.

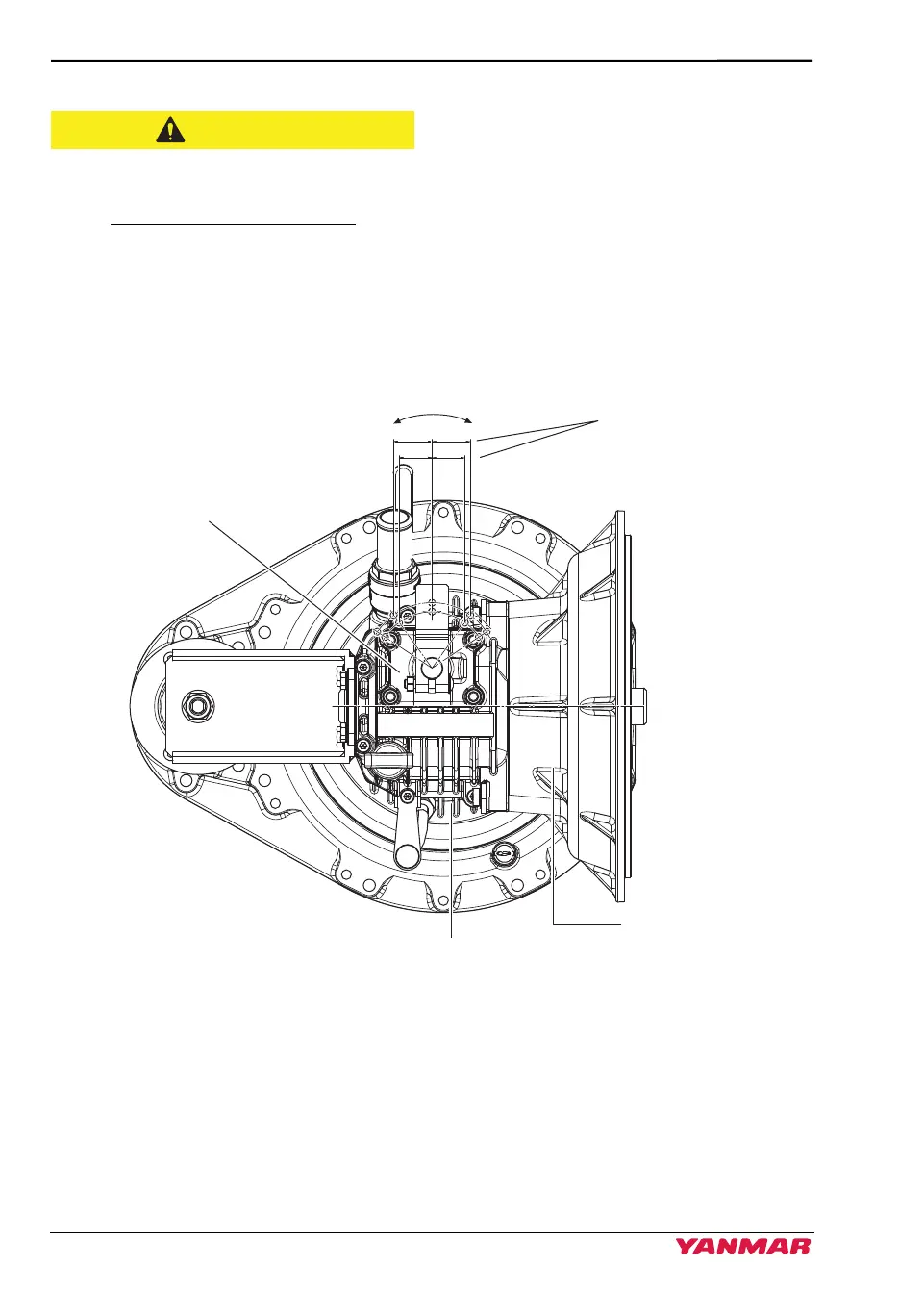

Figure 2
AB
35
30
35
30
O
Do not unscrew the nut
Minimum lever travel
Do not open
cover
Oil suction plug
Ma = 10 ± 2 NÂm
050442-01EN00
