CONNECTING THE POLES TO CHAINSAW SEE FIG. 5
•Lift up the cam lock (1).
•Lift up the cover (2).
•Insert the chainsaw pole into the chainsaw. Do not use force when inserting the pole. It
should slide into position where it is marked with a yellow line (3).
•Press down the cam lock (1).
•Secure the chainsaw power cord with cord lock (4).
REMOVING THE POLES FROM THE CHAINSAW SEE FIG. 6
•Pull the chainsaw power cord out of the cord lock (4).
•Lift up the cam lock (1).
•Pull out the chainsaw pole from the chainsaw.
•Press down the cam lock (1).
Assembly

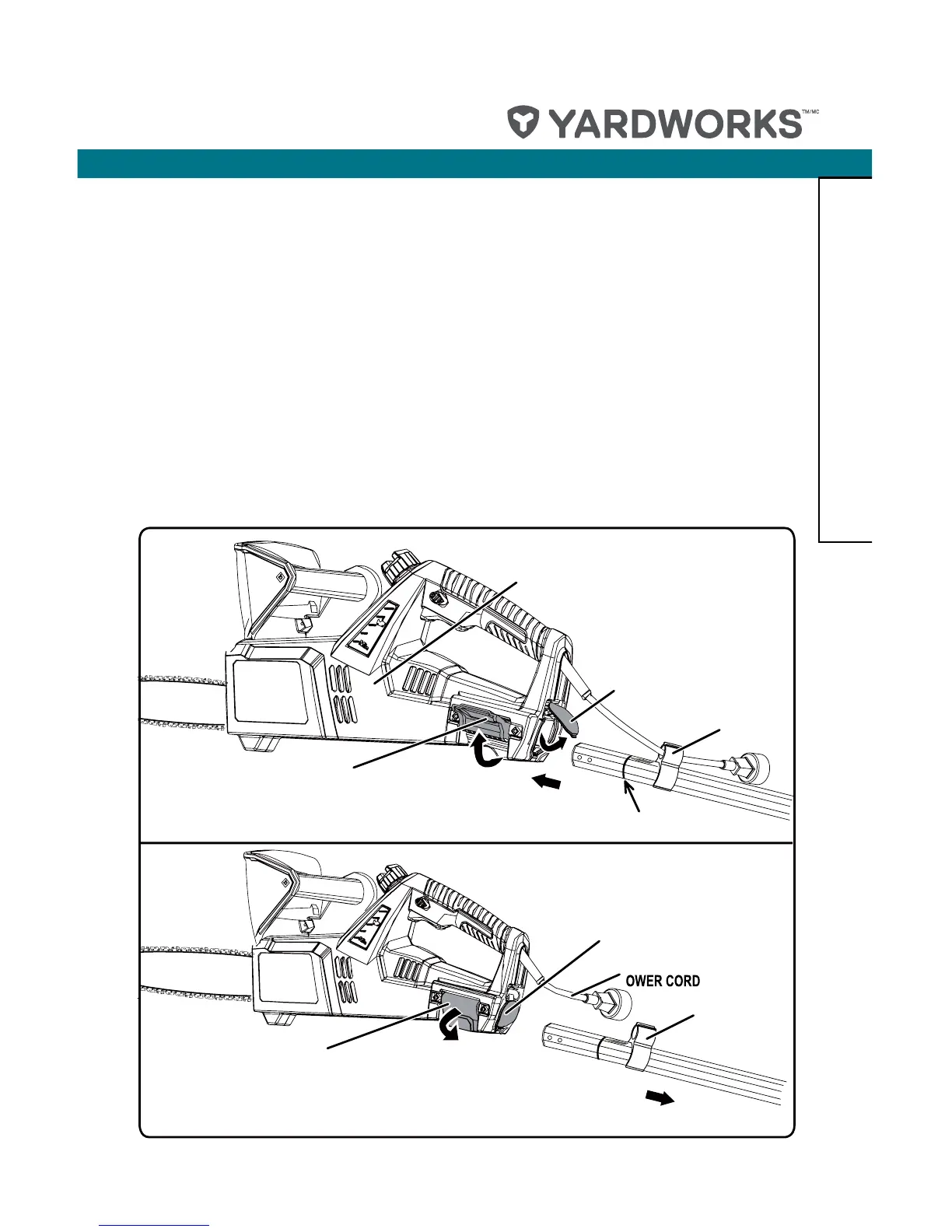

Fig. 5
CHAINSAW
(Detachable Saw — saw detaches from pole
for delimbing and trimming)
COVER (2)
Insert the pole.
CAM LOCK (1)
CORD LOCK (4)
YELLOW LINE (3)
Fig. 6
COVER (2)
CAM LOCK (1)
CHAINSAW
CORD LOCK (4)
Press the cam lock.
Pull out the pole.
