model no. 054-5752-2 | contact us: 1.866.523.5218
26
•The chain is correctly tensioned when there is no slack on the underside of the bar, the chain
is snug, and it can be turned by hand without binding.

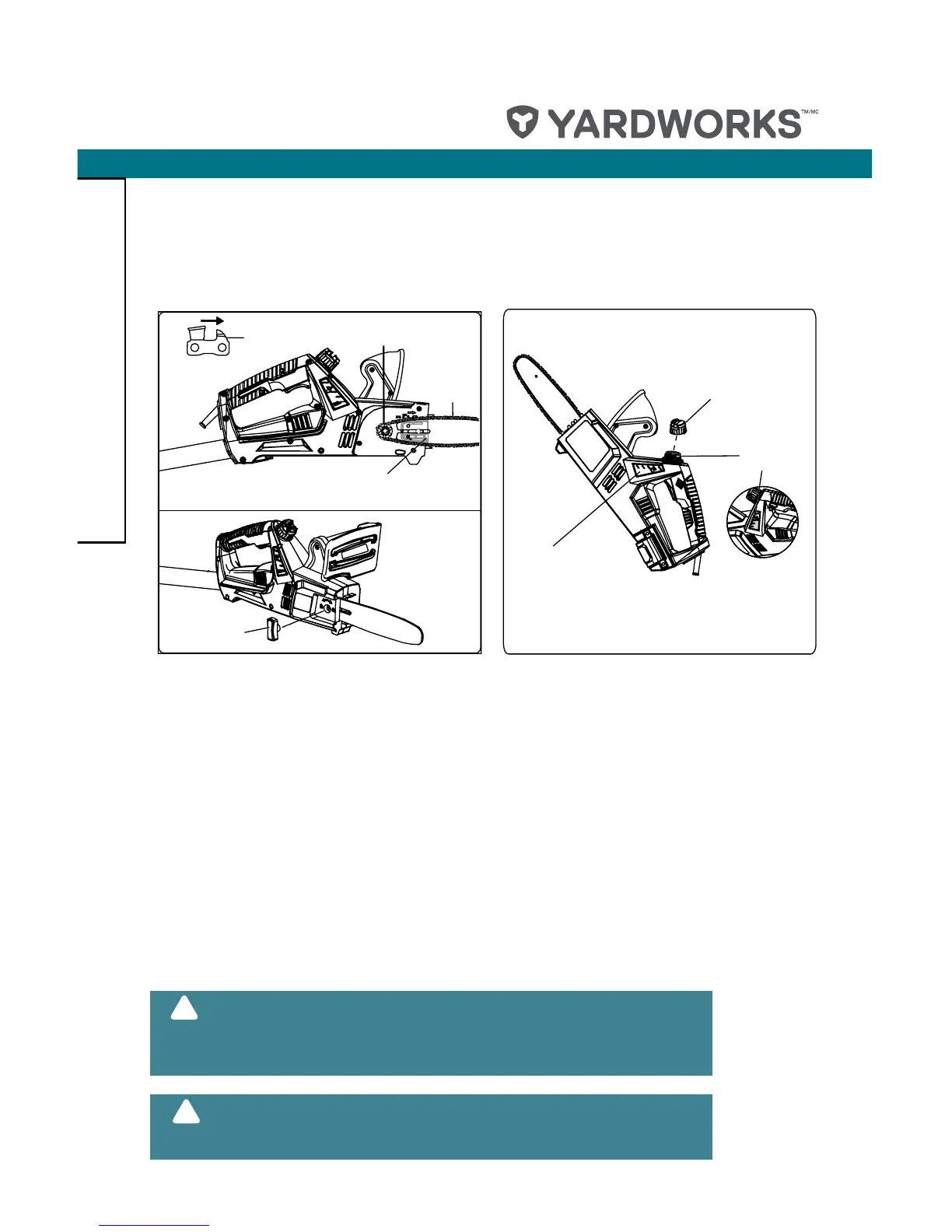

CHAIN OILER SEE FIG. 22
•Use a lubricant that is designed for chains and chain oilers and is formulated to perform over
a wide temperature range with no dilution required.
•Remove the cap and carefully pour approximately 2 oz (110 ml) of bar and chain lubricant
into the bar lube reservoir.
•Replace the cap and tighten securely.
•Check and refill the bar lube reservoir every time the pole saw is used.
NOTE: If the chain is too tight, it will not rotate. Loosen
the bar nut slightly and turn adjusting bolt 1/4 turn
counter-clockwise. Lift the tip of the bar up and retighten
the lock knob.
NOTE: Do not use dirty, used, or otherwise contaminated
lubricants. Damage may occur to the oil pump, bar, or
chain.
!
!
Fig. 20
Fig. 19
Fig. 21
Chain Cover
Lock Knob
Chain
Rotation
Sprocket
Chain
Chain Tensioning Bolt
Quick View Oil
Indicator
Remove Cap
Bar Lube
Reservoir
Maintenance
Fig. 20
Fig. 21
Fig. 22
