4. Avoid dirt or debris entering oil tank, re-screw Oil Filler Cap (5) and tighten.
!
CAUTION: To allow venting of the oil reservoir, small breather channels are
provided between the Oil Filler Cap and the strainer. To prevent leakage, ensure machine
is left in a horizontal position (Oil Filler Cap uppermost) when not in use.
It is important to use only the recommended chain oil to avoid damage to the chainsaw.
Never use recycled/old oil. Use of non-approved oil will void the warranty.
CHECKING THE AUTOMATIC OILER
Proper functioning of the automatic oiler can be checked by running the chainsaw and pointing
the tip of the chain Guide Bar (9) towards a piece of cardboard or paper on the ground. If an
JODSFBTJOHPJMQBUUFSOEFWFMPQTPOUIFDBSECPBSEUIFBVUPNBUJDPJMFSJTPQFSBUJOHªOF*GUIFSF
is no oil pattern, despite a full oil reservoir, contact customer service agent or approved service
agent.
!
Caution: Do not touch the ground with the chain. Ensure safety clearance of 12” (30 cm).
ASSEMBLING THE EXTENSION POLE
Align and insert the handle of extension pole into the shaft. Rotate the locking collar clockwise
to lock. (See Fig. D1, D2)
NOTE: .BLFTVSFUIBUUIFTIBGUJTªSNMZMPDLFEJOQMBDF
ATTACHING THE EXTENSION POLE TO THE MACHINE
1. Insert the pole bracket into the saw. (See Fig. E1)
NOTE: Pole bracket holds trigger in “ON” position.
2. Slide the handle bracket onto clamping bolt.
3. Screw the knob tightly.
4. Plug saw power cord into receptacle cord at end of inner pole. (See Fig. E2)

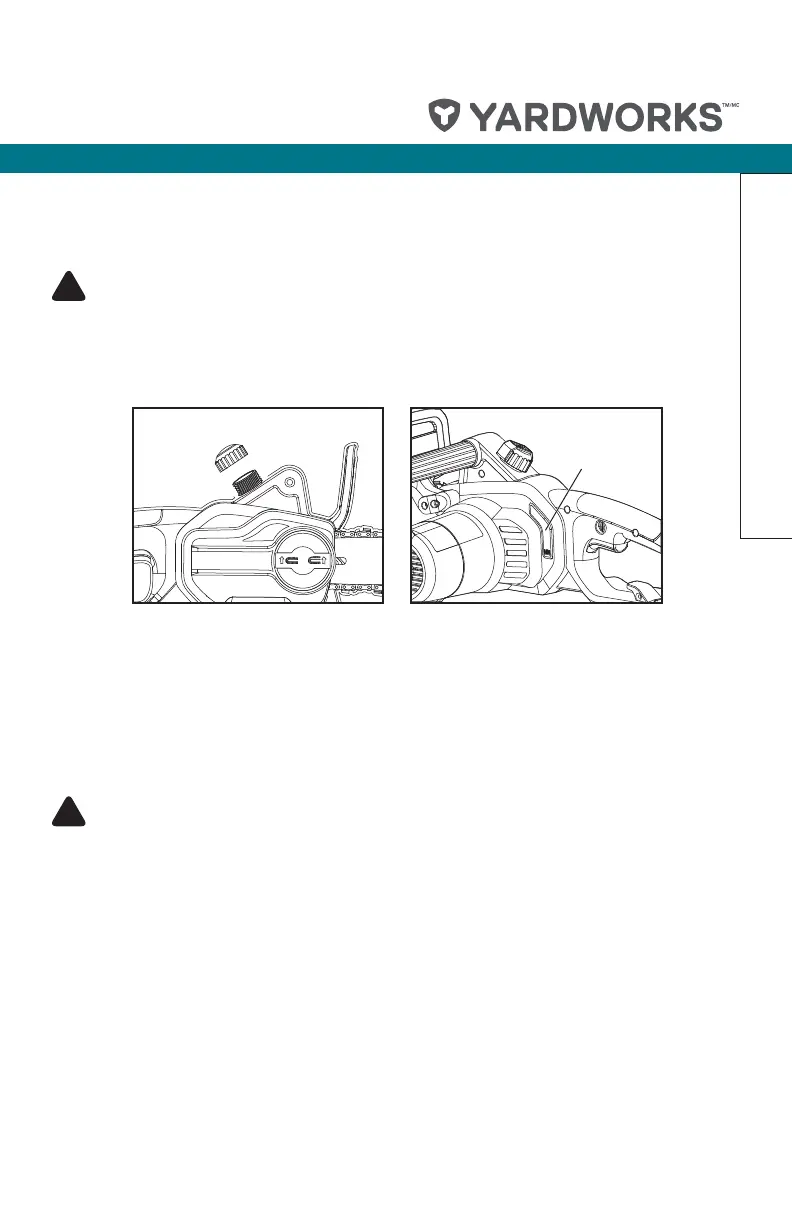

Oil Filler Cap
