3. WIRING
IMPORTANT
For pulse output and the simultaneous analog-pulse
output ,use the load resistance. Refer to Table 3.1.
3.3 Connection
Table 3.1 shows the connection sample of connection for
power supply and load resistance. The terminal position of
each connection is shown in Figure 3.2.

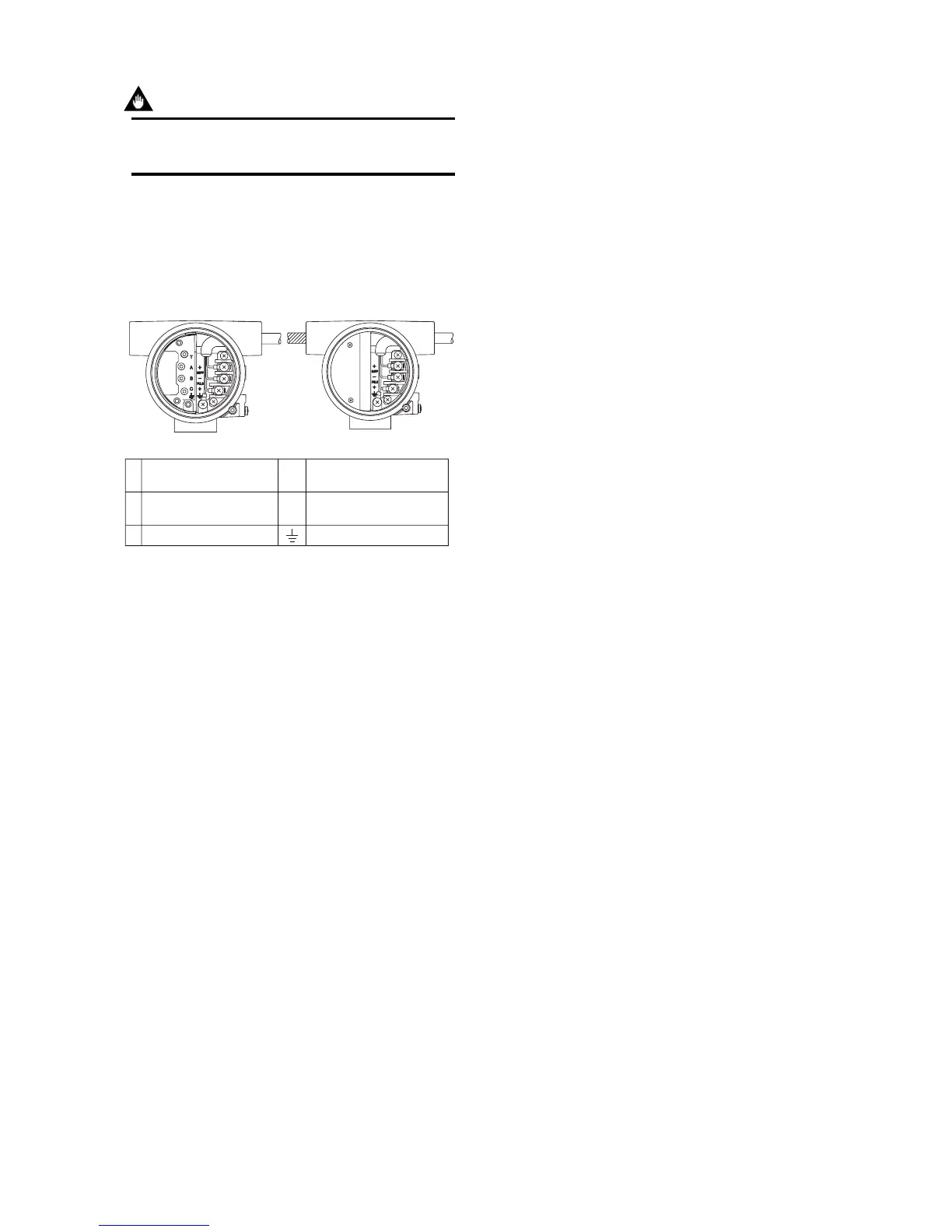

Integral type
Remote type
F030301.EPS
Input Terminal from built-
in temperature sensor
Input Terminals from
vortex detector
Common Terminal
4 to 20 mA DC Output Power Supply
and Output Signal Terminals
Supply
⫹
–
Pulse Output Terminal
Pulse
⫹
Grounding Terminal
T
A
B
C
Figure 3.2
