4. BASIC OPERATING PROCEDURES
4.3 Display Contents in Display
Section
The display mode is a mode in which instantaneous flow
rates or totalized flow are displayed. In display mode, there
are six display modes as shown in Table 4.3.

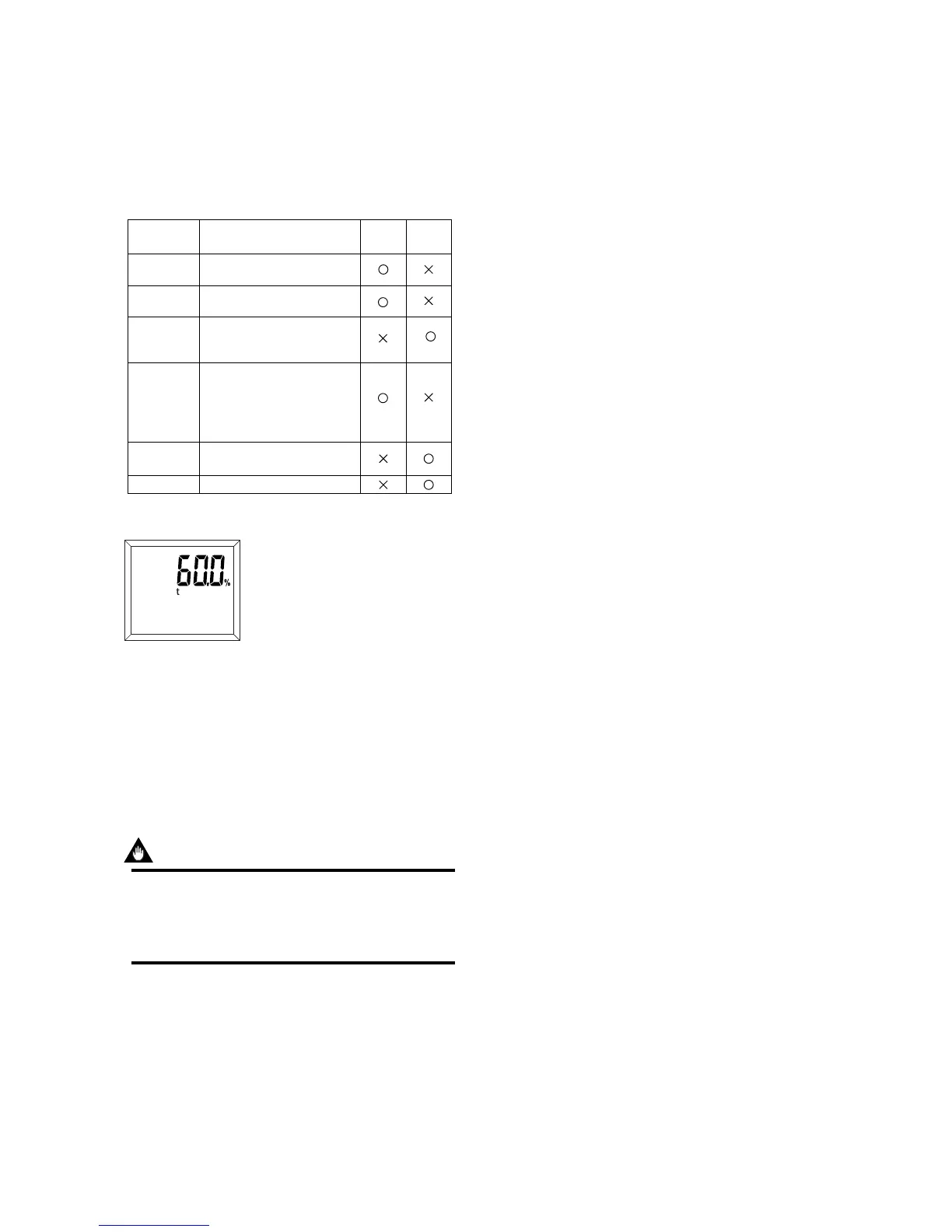

Table 4.3 Display Mode
Instantaneous % flow rate is
displayed.
% Display
(Flow rate)
Instantaneous flow rate in an
engineering unit is displayed.
Engineering
Display Unit
Totalized flow displayed
without indicating the decimal
point.
Totalized
Display
Name Contents
Upper
Display
Lower
Display
T040301.EPS
------Blank
% Display
(Temperature)
(*1)
Temperature
display(*1)
Temperature value is
displayed.
Instantaneous temperature is
displayed.
In this case, “t” is displayed
simultaneously (Refer to
Figure 4.2).
(*1) When option code /MV is selected,
this function is available.
F040301.EPS
Figure 4.2 Example
Display mode can be changed using the BT200 terminal or
the indicator setting section.
• For operation using BT200, perform changes using the
parameter item “ B30:UPPER DISP” and “B31:LOWER
DISP” referring to section 5. Parameters.
• For operation using indicator, change B30 and B31
parameter item number to display an appropriate display.
IMPORTANT
After setting a parameter, keep the power on for at
least 30 seconds.
If the power of flowmeter is turned off, a parameter
setting is released.
