3. Cabling
3-69
TI 32P01J10-01EN
 Parallel connection with adjacent channels (S2BN1D, A2BM4)
The maximum load current per channel is 0.66 A. A load current device with more than 0.66 A
can be connected by using parallel connection with adjacent channels.
· The 2 channels parallel connection allows a maximum load current of 1.3 A.
· The 3 channels parallel connection allows a maximum load current of 2.0 A.

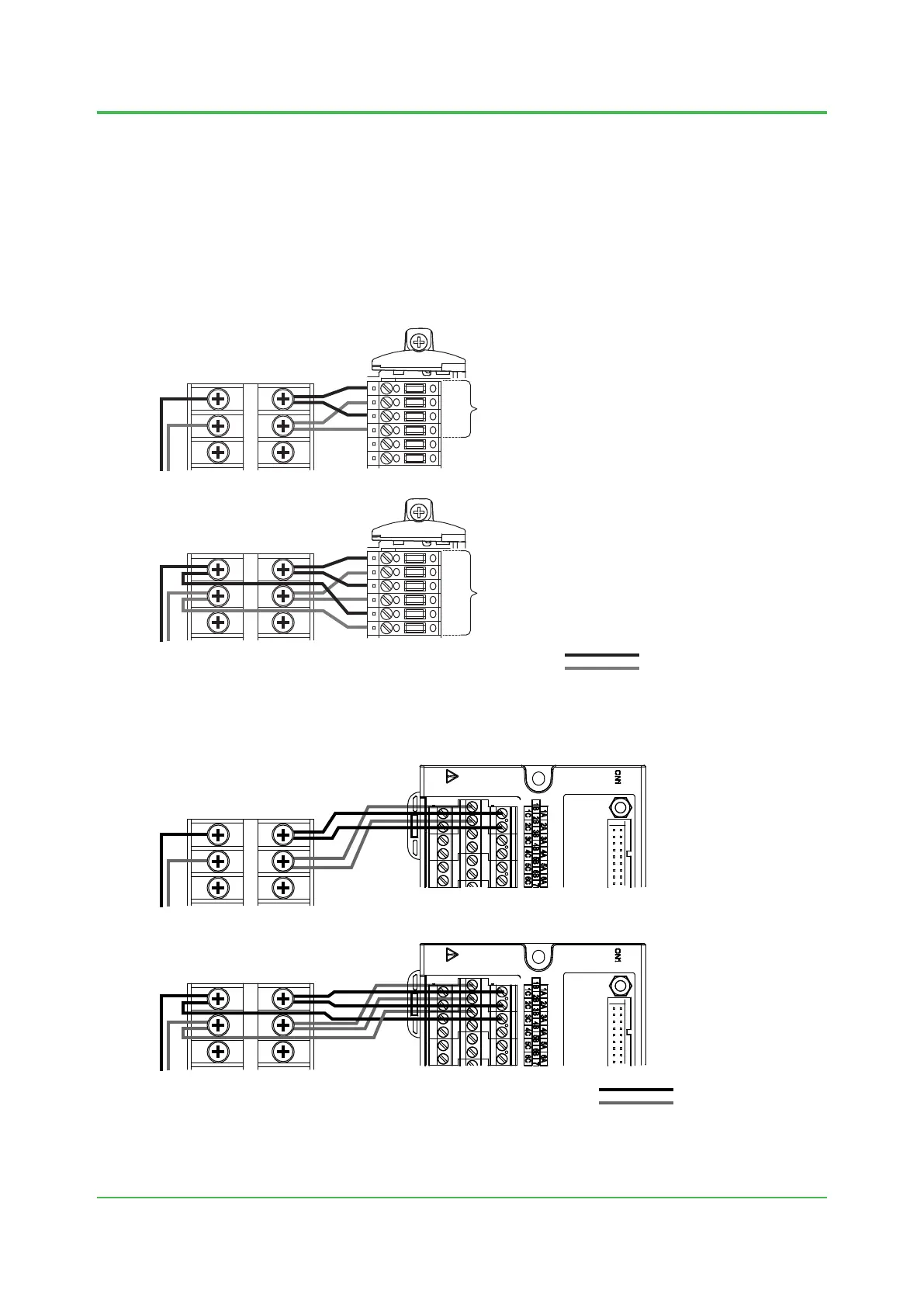

For the parallel connection, connect the signal cable to the external terminal block from the
terminal block of the base plate (S2BN1D) or terminal board (A2BM4). The following gure
shows an example of parallel connection.
F030703.ai
1A
+
-
+
+
-
-
1B
2A
2B
3A
3B
3ch parallel connection
External terminal block Terminal block
1A
+
-
+
-
1B
2A
2B
2ch parallel connection
S2BN1D
Figure Parallel connection for S2BN1D
F030708.ai
+
-
+
+
-
-
+
-
+
-
2ch parallel connection
Terminal board (A2BM4)
External terminal block
3ch parallel connection
Terminal board (A2BM4)
External terminal block
Figure Parallel connection for A2BM4
Oct. 5, 2018-00
