Measuring principle and flow meter design
General Instruction Manual
Product specification
IM 01U10B00-00EN-R, 3rd edition, 2018-07-09
13 / 90
Temperature
measurement
The measuring tube temperature is measured in order to compensate for the effects of
temperature on the flow meter. This temperature approximately equals the fluid tempera-
ture and is made available as a measured quantity at the transmitter as well.
4.2.2 Flow meter
The Rotamass Total Insight Coriolis mass flow and density meter is offered in several
families (Nano, Supreme, Giga, Prime, Intense and Hygienic). It consists of the following
main components:
Sensor
Transmitter
In the integral type, sensor and transmitter are firmly connected.
1
2
3
3

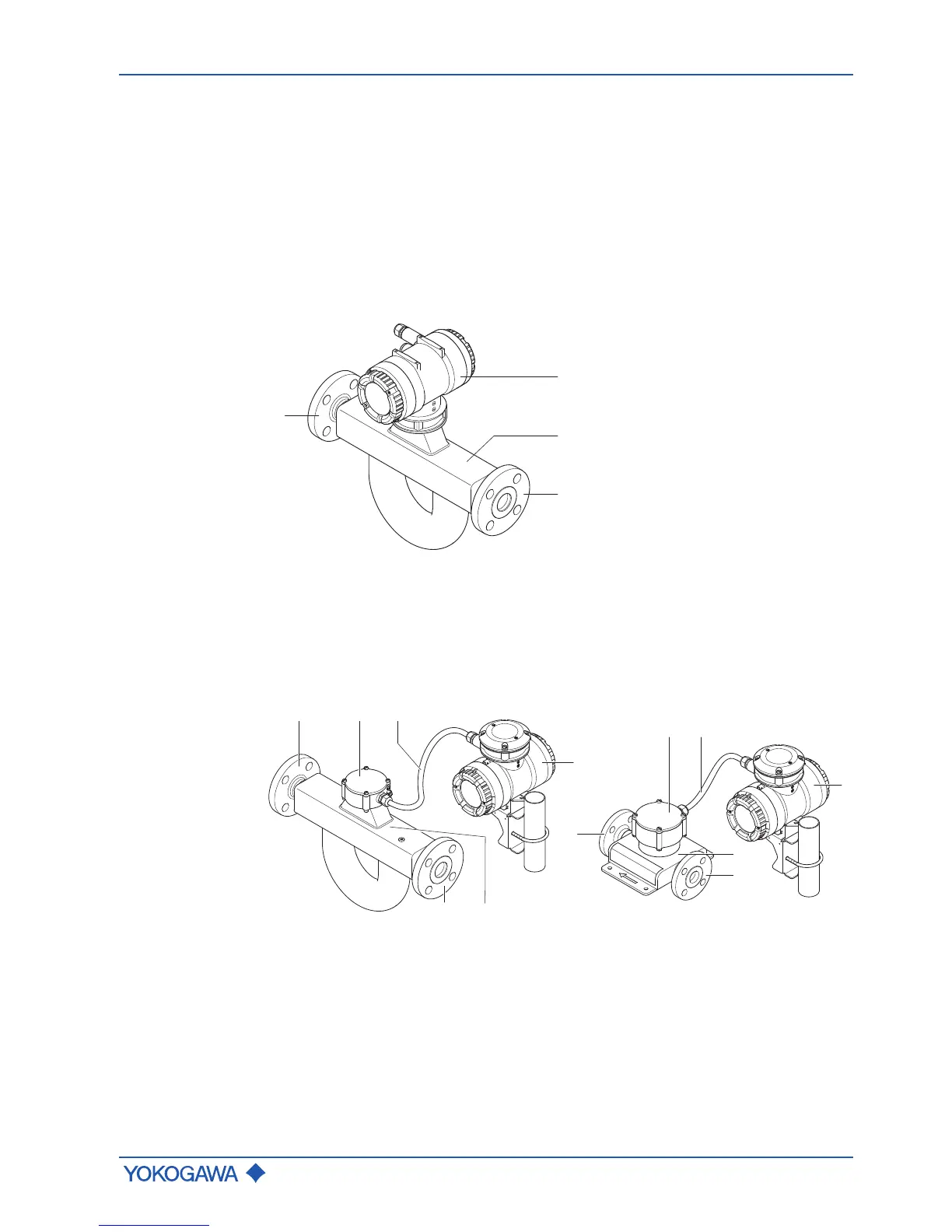

Fig.5: Design of the Rotamass Total Insight integral type (Rotamass Supreme as an example)
1 Transmitter
2 Sensor
3 Process connections
When the remote type is used, sensors and transmitters are linked via connecting cable.
As a result, sensor and transmitter can be installed in different locations.
4 53
1
23
5
3
2
1
4
3
Fig.6: Design of the Rotamass Total Insight remote type (left: Rotamass Supreme, right: Rotamass
Nano)
1 Transmitter 4 Sensor terminal box
2 Sensor 5 Connecting cable
3 Process connections
