157
JOHNSON CONTROLS
FORM 100.50-NOM6 (1207)
8

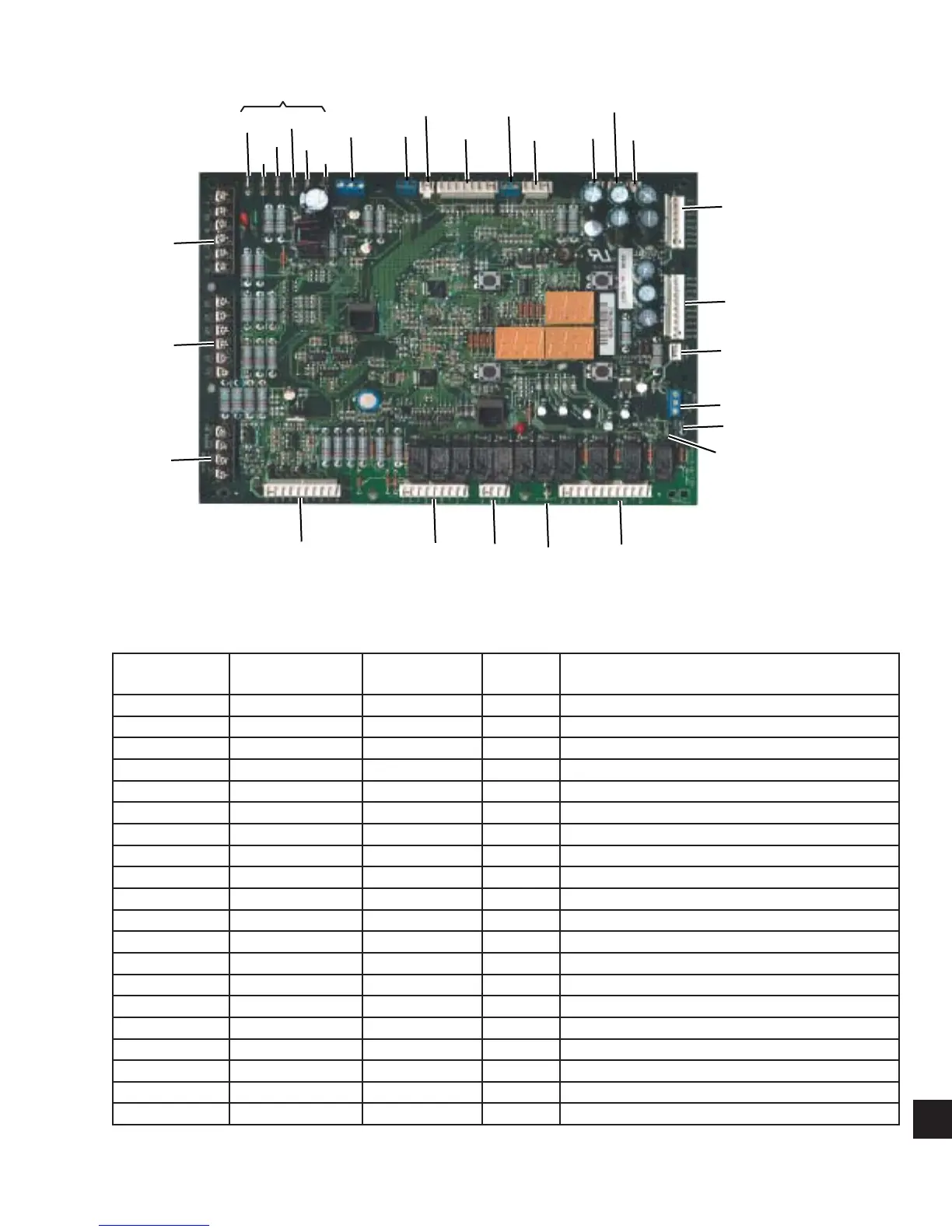

FIG. 8-1 – CONNECTOR LOCATIONS
CONNECTOR # TYPE IDENTIFICATION WIRE # DESCRIPTION
P9 AI BP- 340 BUILDING PRESSURE INPUT -
P9 AI BP+ 339 BUILDING PRESSURE INPUT +
P7 AI CV/VAV - CV VAV CONFIGURATION RESISTOR
P21 AI DP- 338 DUCT STATIC PRESSURE INPUT -
P21 AI DP+ 337 DUCT STATIC PRESSURE INPUT +
P20 AI DV- - DEMAND VENTILATION INPUT -
P20 AI DV+ - DEAMND VENTILATION INPUT +
P11 AI OAT- 330 OUTDOOR AIR TEMPERATURE INPUT
P11 AI OAT+ 329 OUTDOOR AIR TEMPERATURE INPUT
P6 AI OH- 334 OUTDOOR AIR HUMIDITY INPUT -
P6 AI OH+ 333 OUTDOOR AIR HUMIDITY INPUT +
P11 AI RAT- 332 RETURN AIR TEMPERATURE -
P11 AI RAT+ 331 RETURN AIR TEMPERATURE +
P6 AI RH- 336 RETURN AIR HUMIDITY INPUT 1
P6 AI RH+ 335 RETURN AIR HUMIDITY INPUT +
P11 AI SAT- 309 SUPPLY AIR TEMPERATURE INPUT
P11 AI SAT+ 308 SUPPLY AIR TEMPERATURE INPUT
P14 AO ECO- 406 OUTDOOR DAMPER OUTPUT -
P14 AO ECO+ 405 OUTDOOR DAMPER OUTPUT +
P14 AO EXD- 408 EXHAUST FAN VFD / DAMPER OUTPUT-
Continued on next page
TABLE 8-8 – WIRING DATA
P15
P16
P5
P4
TERM. VAV OPEN +
TERM. VAV OPEN -
P12
P13
TERM
24VAC
P10
P14
SD2
FSP
FSI
RSD1
P3
P2
P1
COM
TERMINALS
P8
P19
P7
P11
P20
P6
P9
P21
P22
LD13124
To Next Page
