York F4FP024H06T2A User Manual

404912-UIM-A-0508
4 Johnson Controls Unitary Products

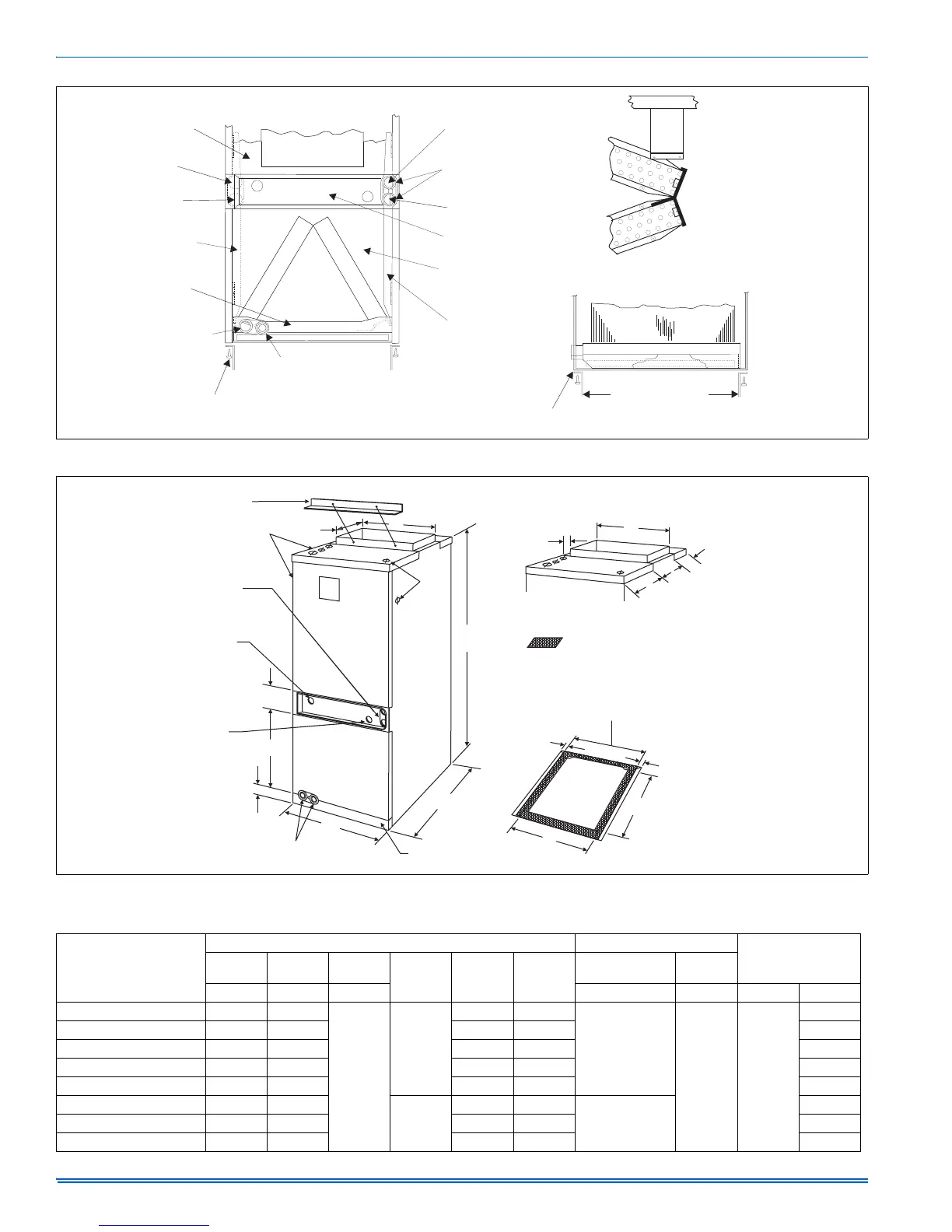

FIGURE 3: Filter Access & Drain Pan Conversion / Coil Baffle
FILTER
3B - SIDE VIEW
"S" BRACKET MUST BE USED TO
FASTEN DUCT WORK TO FRONT OF UNIT
RETURN AIR DUCT
3/4" PVC SOCKETS
FOR HORIZONTAL
DRAIN APPLICATION
HORIZONTAL
DRAIN PAN
POSITION "A”
HORIZONTAL
DRAIN PAN
POSITION "B”
PRIMARY DRAIN UPFLOW
3/4” THREADED
SECONDARY
DRAIN UPFLOW
3/4" THREADED
BLOWER
HOUSING
COIL COMPARTMENT
(ACCESS PANEL REMOVED)
FILTER
BLOWER
COMPARTMENT
(ACCESS PANEL
REMOVED)
CENTER ACCESS PANEL
PRIMARY
DRAIN
SECONDARY
DRAIN
VERTICAL
DRAIN PAN
SECONDARY
DRAIN
PRIMARY
DRAIN
3C - FRONT VIEW
3A - FRONT VIEW
DUCT WORK MAY BE FASTENED
CAUTIOUSLY WITH SCREWS TO
THE SIDES AND REAR OF UNIT
SUPPORT
BRACKET
060 COIL BAFFLE
(SHOWN IN
RIGHT-HORIZONTAL
POSITION)
FIGURE 4: Dimensions & Duct Sizes
SHIPPING BRACKET*
REMOVE PRIOR TO
INSTALLATION (2 SCREWS)
10-3/8
J
DRAIN CONNECTIONS
FOR HORIZONTAL
APPLICATIONS
4
D
VAPOR
OPENING
LIQUID
OPENING
2
B
FILTER
ACCESS
DRAIN CONNECTIONS
FOR UPFLOW APPLICATIONS
BOTTOM VIEW
E
18-3/8
3/4
REAR
3/4
=DRAIN PAN FOOTPRINT
TOP VIEW (ALL MODELS)
7-1/2
10-3/8
4-1/8
F
3/4
A
C
F
K
MAX. FILTER LENGTH
(21 INCHES)
MAX. FILTER WIDTH
(B MINUS 1-1/2 INCHES)
ALL DIMENSIONS ARE IN INCHES. THEY ARE SUBJECT TO CHANGE
WITHOUT NOTICE. CERTIFIED DIMENSIONS WILL BE PROVIDED
UPON REQUEST.
TABLE 1: Dimensions
MODELS F*FP
Dimensions Wiring K.O.’s* Refrigerant
Connections
Line Size
ABC
DEF
JK
Height Width Depth Power Control Liquid Vapor
024 40-3/4 18
22
12-1/8
14-7/8 16-1/2
7/8 (1/2)
1-3/8 (1)
7/8 (1/2) 3/8
5/8
030 40-3/4 18 14-7/8 16-1/2 3/4
036 40-3/4 21-1/2 18-3/8 20 3/4
040 40-3/4 21-1/2 18-3/8 20 7/8
042 40-3/4 21-1/2 18-3/8 20 7/8
045 50-3/4 24
17-3/8
20-7/8 22-1/2
7/8 (1/2)
1-3/8 (1),
1-23/32 (1-1/4)
7/8
048 50-3/4 24 20-7/8 22-1/2 7/8
060 50-3/4 24 20-7/8 22-1/2 7/8
