York MILLENNIUM YS User Manual

15
FORM 160.47-NOM3
YORK INTERNATIONAL
LD00505
S4 COMPRESSOR S4 and S5 COMPRESSOR
DIMENSION SHELL CODES (Cooler – Condenser)
D-C D-D E-E E-F F-E F-F
A TUBE SHEET WIDTH 6'–2" 6'–2" 6'–2" 6'–4-1/2" 6'–6-1/2" 6'–9"
A
1
– With SSS 6'–9-7/8" 6'–9-7/8" 6'–9-7/8" 7'–0-3/8" 7'–3-5/8" 7'–2-5/8"
A
2
– OVERALL WD. (less SSS) 6'–3-3/8" 6'–3-3/8" 6'–2" 6'–4-1/2" 6'–6-1/2" 6'–9"
B – OVERALL HEIGHT
3
7'–9-1/8" 7'–9-1/8" 7'–9-1/8" 8'–2-1/4" 8'–2-1/4" 8'–2-1/4"
C – COOLER C/L 1'–7-3/4" 1'–7-3/4" 1'–7-3/4" 1'–7-3/4" 1'–10" 1'–10"
D – CONDENSER C/L 1'–5-1/4" 1'–5-1/4" 1'–5-1/4" 1'–6-1/2" 1'–5-1/4" 1'–6-1/2"

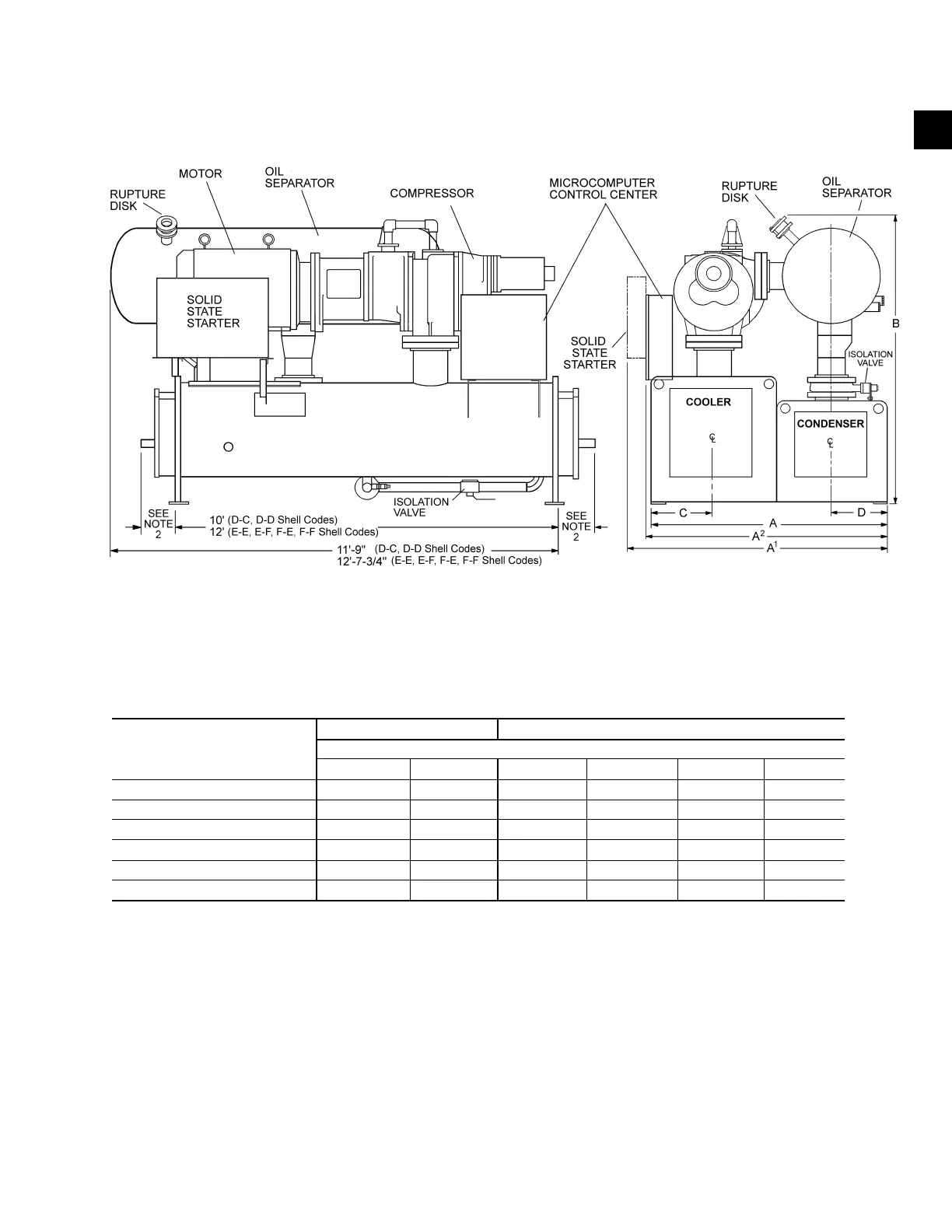

FIG. 5 – OVERALL DIMENSIONS - ENGLISH, S4 AND S5 COMPRESSOR
