5167540-YIM-H-0518
14 Johnson Controls Ducted Systems

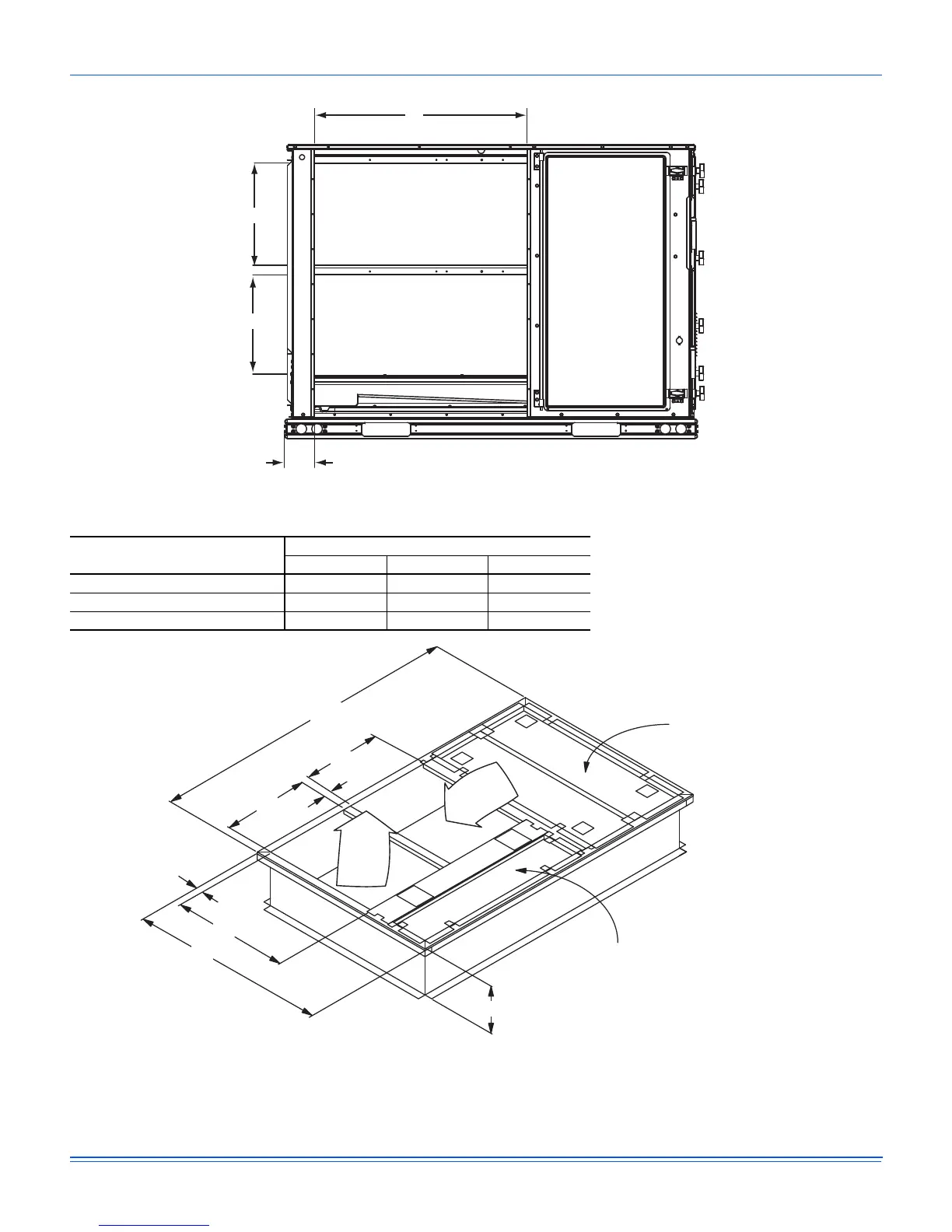

Figure 13: ZR037-061 Unit Left/End Duct Opening
Figure 14: ZR037-061 Roof Curb
Table 7: Left/End Duct Dimensions
Unit Model Number
Dimension (in.)
ABC
ZR037 30.357 13.365 22.516
ZR049 30.357 13.365 22.516
ZR061 30.357 13.365 22.516
4-5/16
A
C
B
8 or 14
50-1/2
30
20
20
80-5/8
6
2TYP.
INSULATED DECK UNDER
COMPRESSOR SECTION
INSULATED DECK UNDER
CONDENSER SECTION
FRONT
RIGHT
SUPPLY
RETURN
