JOHNSON CONTROLS
27
SECTION 2 – PRODUCT DESCRIPTION
FORM 150.67-NM2
ISSUE DATE: 01/31/2019
2

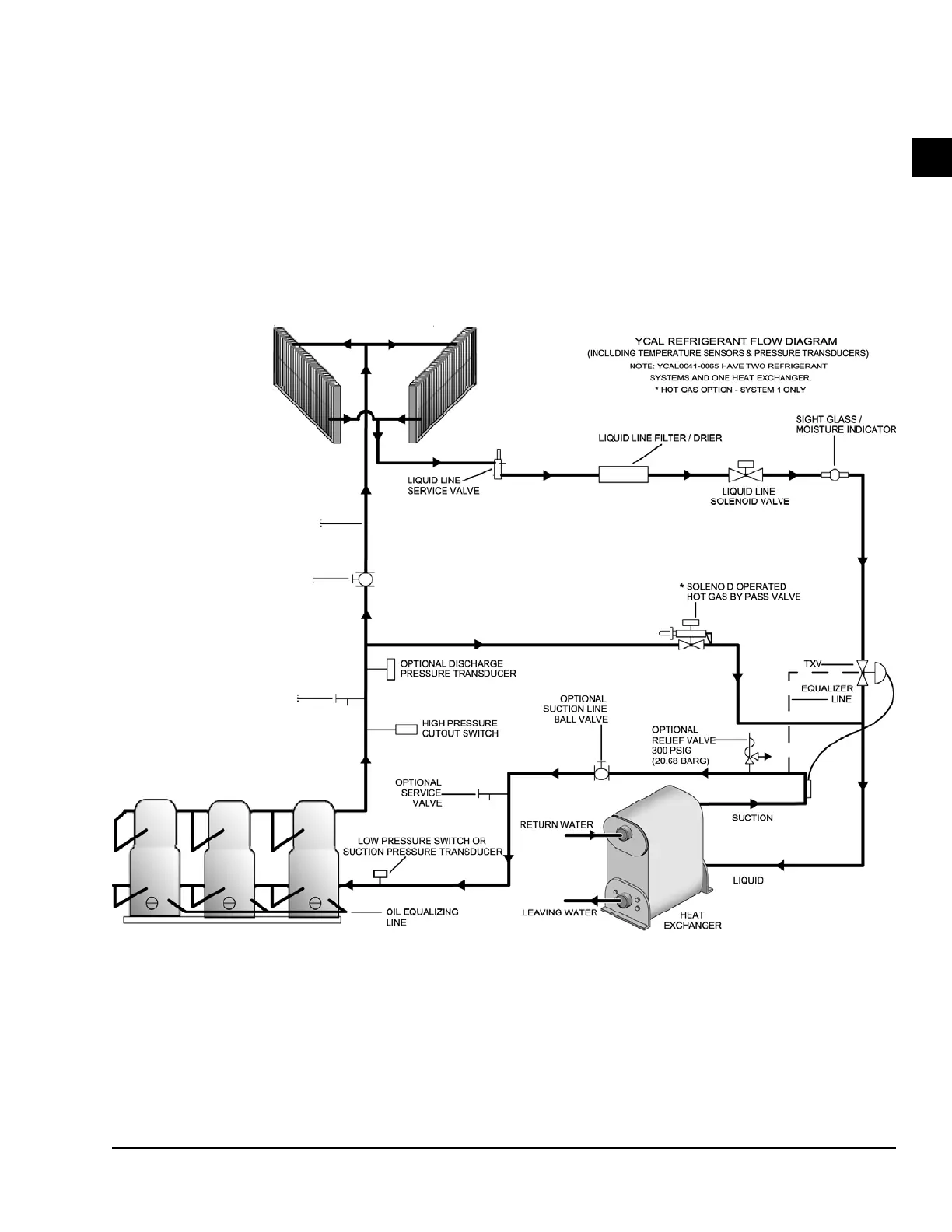

REFRIGERANT FLOW DIAGRAM
FIGURE 5 - REFRIGERANT FLOW DIAGRAM
Optional
AIR COOLED
CONDENSERS
OPTIONAL
DISCHARGE LINE
BALL VALVE
HOT DISCHARGE
GAS LINE
OPTIONAL
SERVICE VALVE
LD11417
