JOHNSON CONTROLS
54
FORM 150.67-NM2
ISSUE DA
TE: 01/31/2019
SECTION 5 – TECHNICAL
DA
T
A
ELEMENT
AR

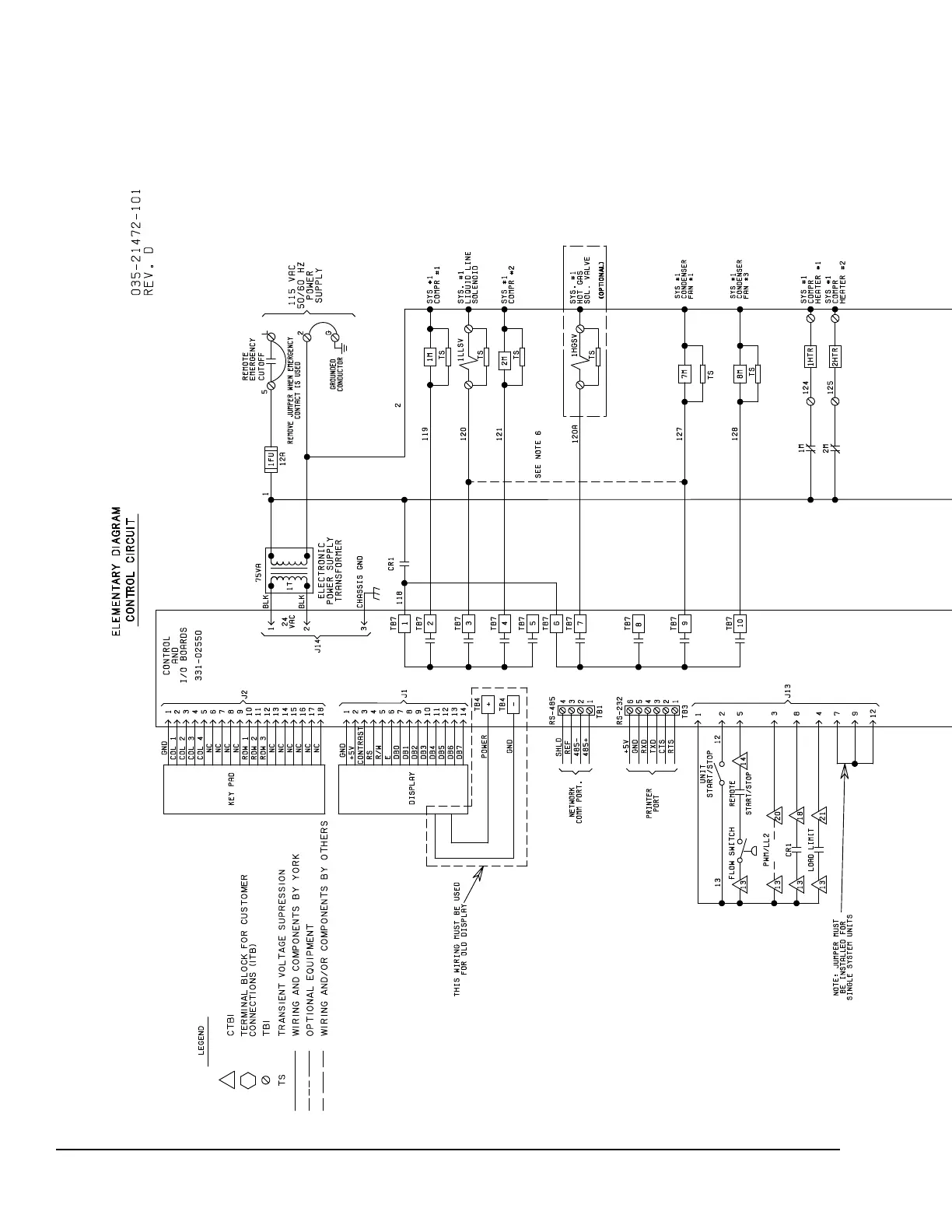

Y WIRING DIAGRAM
FIGURE 13 -
CONTROL
CIRCUIT
, SINGLE
YCAL0019, 0022, 0028 & 0033 ST
ANDARD UNITS
YCAL0019, 0022 0028 & 0033 ST
ANDARD LOW SOUND UNITS
YCAL0028 & 0033 UL
TRA
LOW SOUND UNITS
