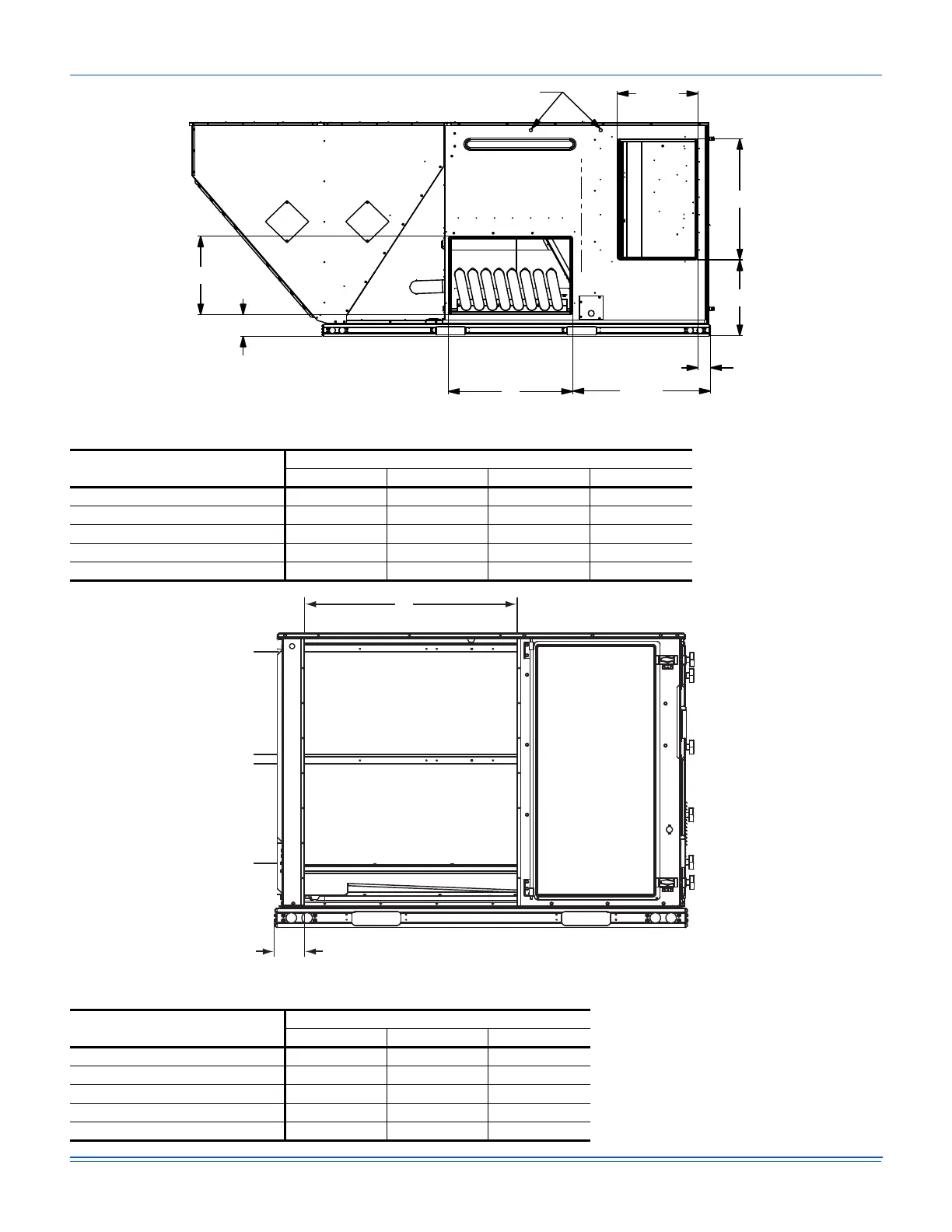

Figure 13: ZF150 Unit Side Duct Openings
Figure 14: ZF078-150 Unit Left Duct Opening
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
Table 6: Side Duct Dimensions
Unit Model Number
Dimension (in.)
ABCD
ZF078 27 3/4 12 1/16 27 1/2 16
ZF090 27 3/4 12 1/16 27 1/2 16
ZF102 28 1/4 18 1/16 28 1/4 18 1/4
ZF120 28 1/4 18 1/16 28 1/4 18 1/4
ZF150 28 1/4 18 1/16 28 1/4 18 1/4
4-5/16
A
Left/End Duct Dimensions
Unit Model Number
Dimension (in.)
ABC
078 30.357 13.365 22.516
090 30.357 13.365 22.516
102 30.358 22.580 22.330
120 30.358 22.580 22.330
150 30.358 22.580 22.330
