York ZF SERIES User Manual

5464597-YIM-B-0518
8 Johnson Controls Ducted Systems
Units may be moved or lifted with a forklift. Slotted openings in
the base rails are provided for this purpose.
LENGTH OF FORKS MUST BE A MINIMUM OF 60 INCHES.

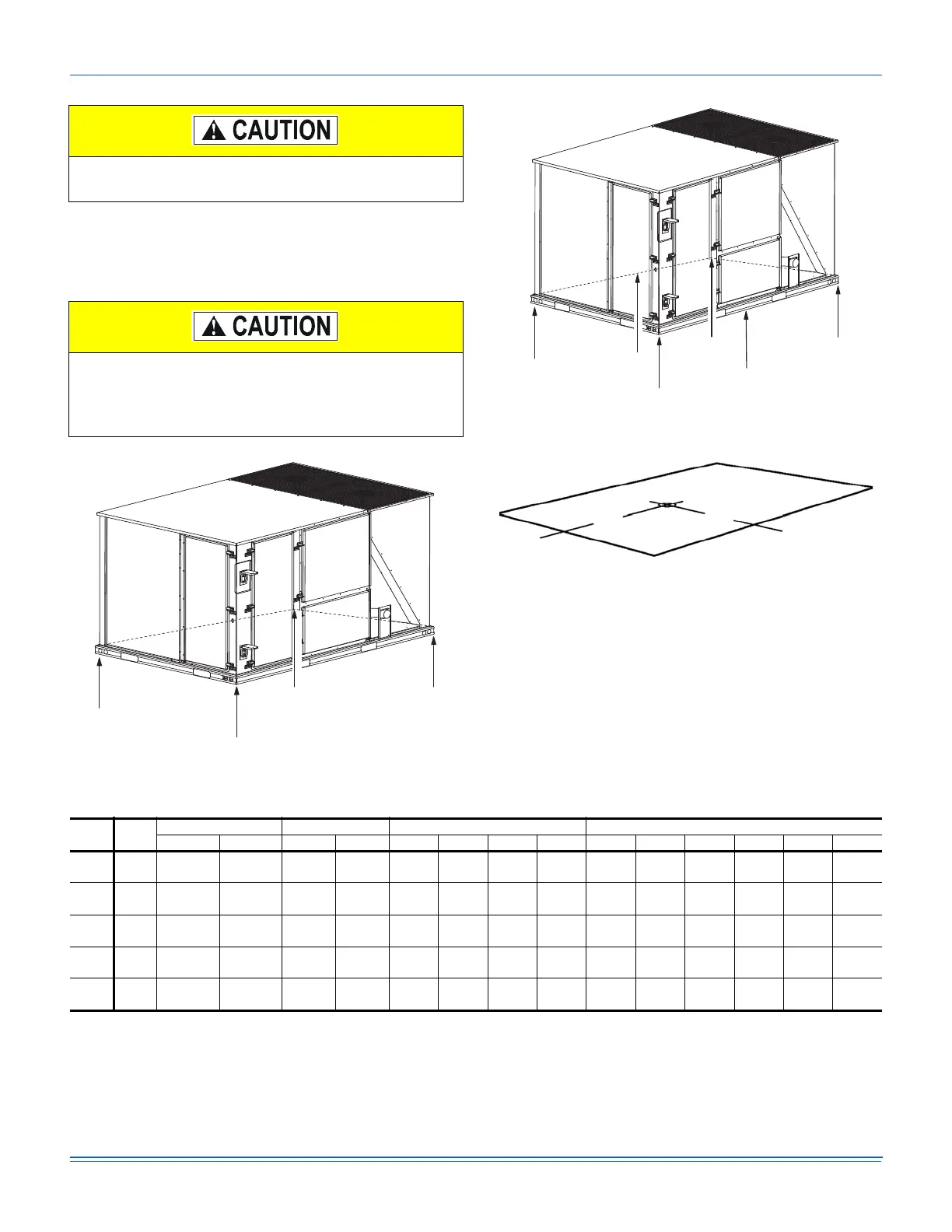

Figure 5: Unit 4 Point Load Weight
Figure 6: Unit 6 Point Load Weight
Figure 7: Center of Gravity
Before lifting, make sure the unit weight is distributed
equally on the rigging cables so it will lift evenly.
All panels must be secured in place when the unit is
lifted.
The condenser coils should be protected from rigging
cable damage with plywood or other suitable material.
D
A
CB
LEFT
FRONT
D
A
C
B
E
F
LEFT
FRONT
X
Y
LEFT
FRONT
Table 2: Weights and Dimensions
Size
(Tons)
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCDABCDEF
078
(6.5)
ZF 865 860 38 24 200 149 218 292 140 114 95 138 167 205
090
(7.5)
ZF 885 860 38 24 205 153 223 299 144 117 97 142 171 210
102
(8.5)
ZF 1012 1007 38 24 235 175 255 342 164 134 111 162 195 240
120
(10)
ZF 1065 1060 38 24 247 184 268 360 173 141 117 171 206 253
150
(12.5)
ZF 1258 1253 47 25 251 280 381 341 164 176 190 259 240 223
