Page 24
4.7 CANBUS CONNECTOR DESCRIPTION
Dualac2 Controller has a canbus interface, so it has been designed to work in a can
network together with other electronic modules, exchanging informations over the canbus
network.
Furthermore, the exchange of informations between master and slave microcontrollers is
based on the canbus, as well.
Dualac2 also provides built-in can termination resistance, which can be connected in
different ways, as described here following:

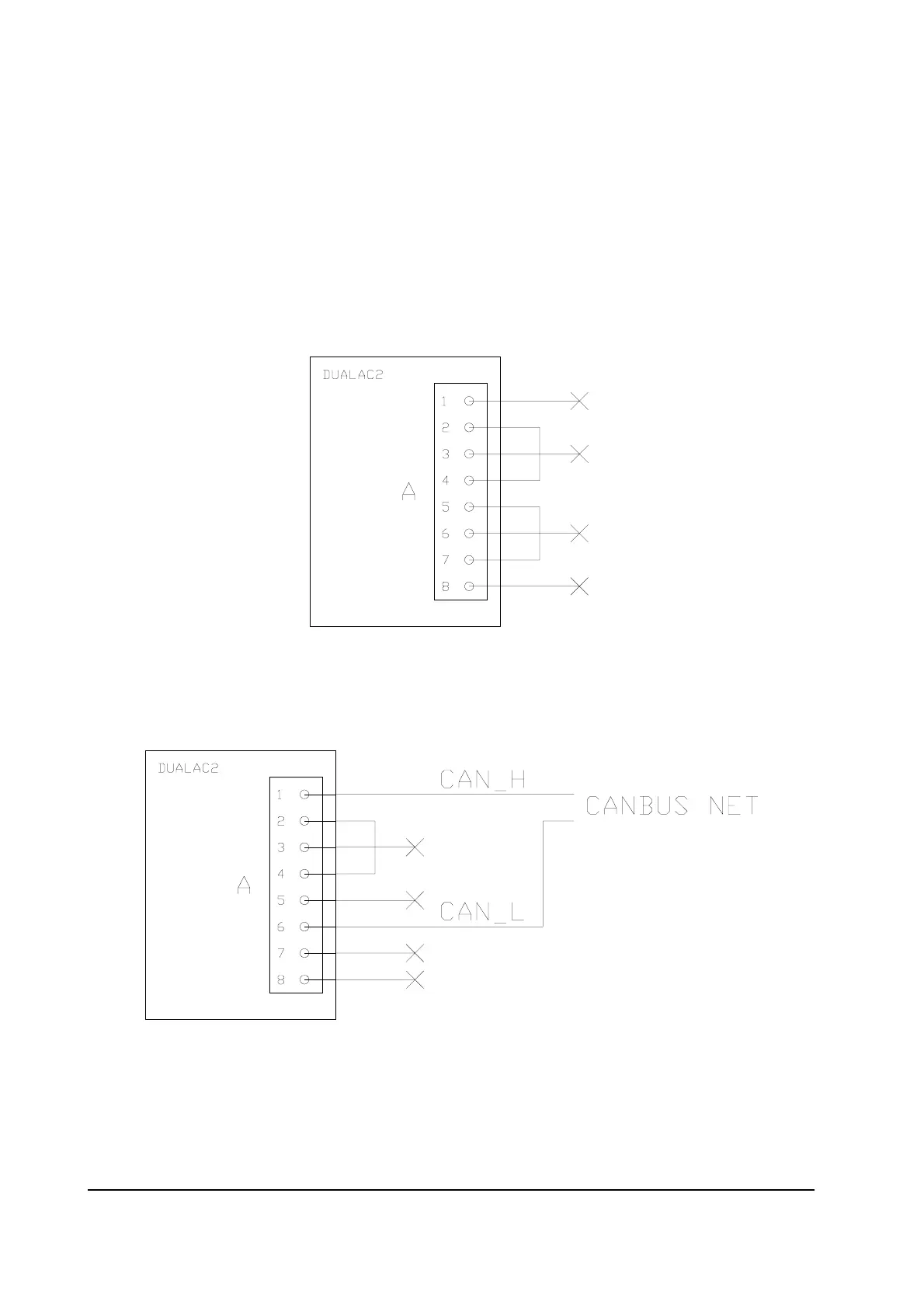

4.7.1 "Dualac2" Controller in stand-alone configuration
Bridge 2-4 and 5-7 connect both built-in120 ohm can termination resistances.
4.7.2 "Dualac2" Controller is a termination module in the canbus net
Bridge 2-4 connects one built-in 120 ohm can termination resistance, the second will be
connected in another module of the canbus net.
