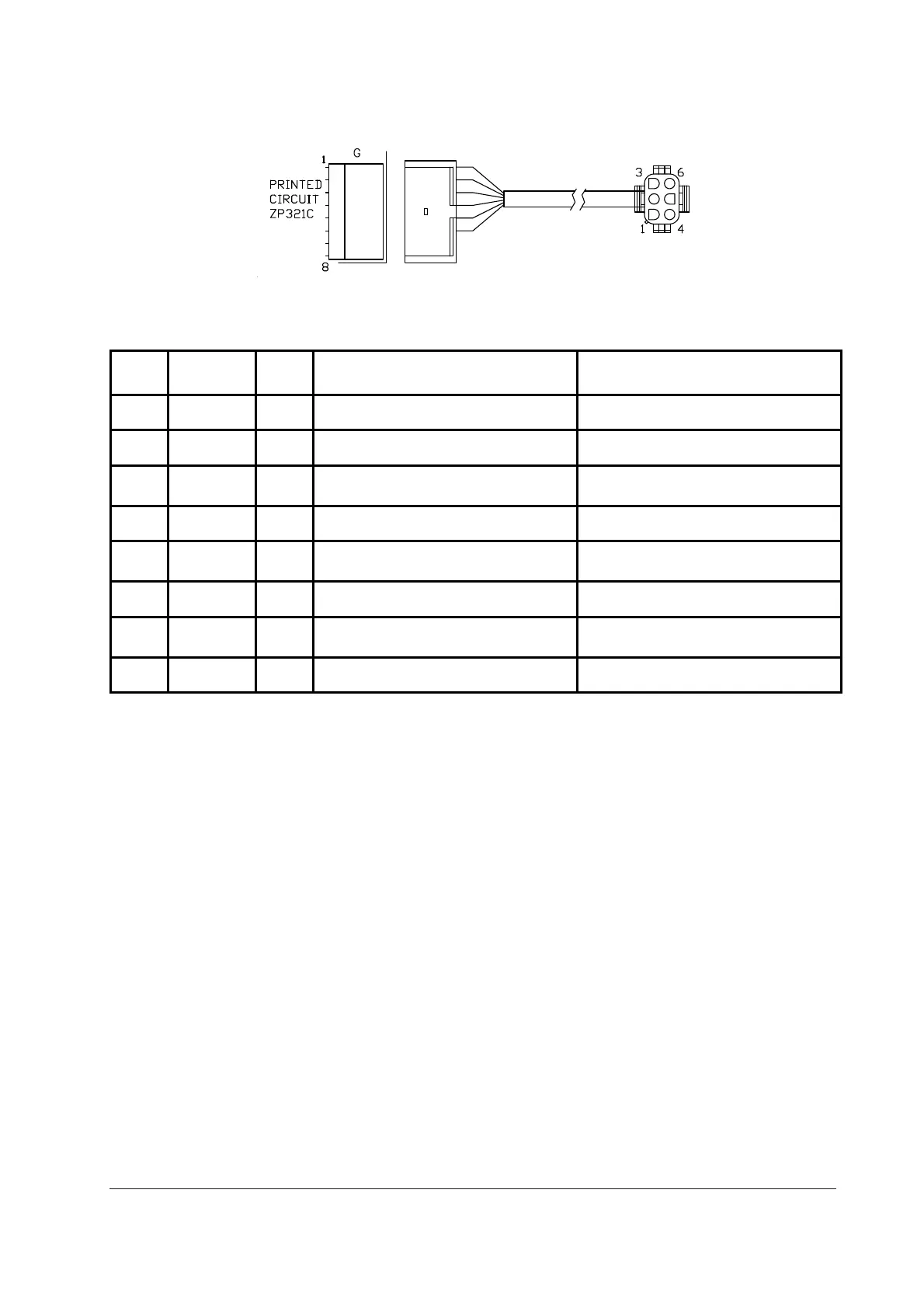

CONN.
G
WIRE
COLOUR
CONN. TRACTION FUNCTION PUMP FUNCTION
1 white-green 4 Positive of braking contactor PTFR /
2 red-black 1 Contactors positive PT Contactors positive PT
3 grey-black 2
Negative field weakening contactor
coil NTIND
Negative field weakening contactor
coil NTIND
4 blue-black 2 Negative backward contactor coil NTI Negative main contactor coil NTG
5 red-green 6 Negative braking contactor coil NTFR
Negative proportional electrovalve coil
NEVP
6 yellow-black 5 Negative forward contactor coil NTA Negative hydro contactor coil NTIDR
7 optional -
Negative of auxiliary contactor AUX
G7
/
8 optional - Battery negative pole /
