Page 46/60
H2B USER'S MANUAL - 550145G
6 PUMP

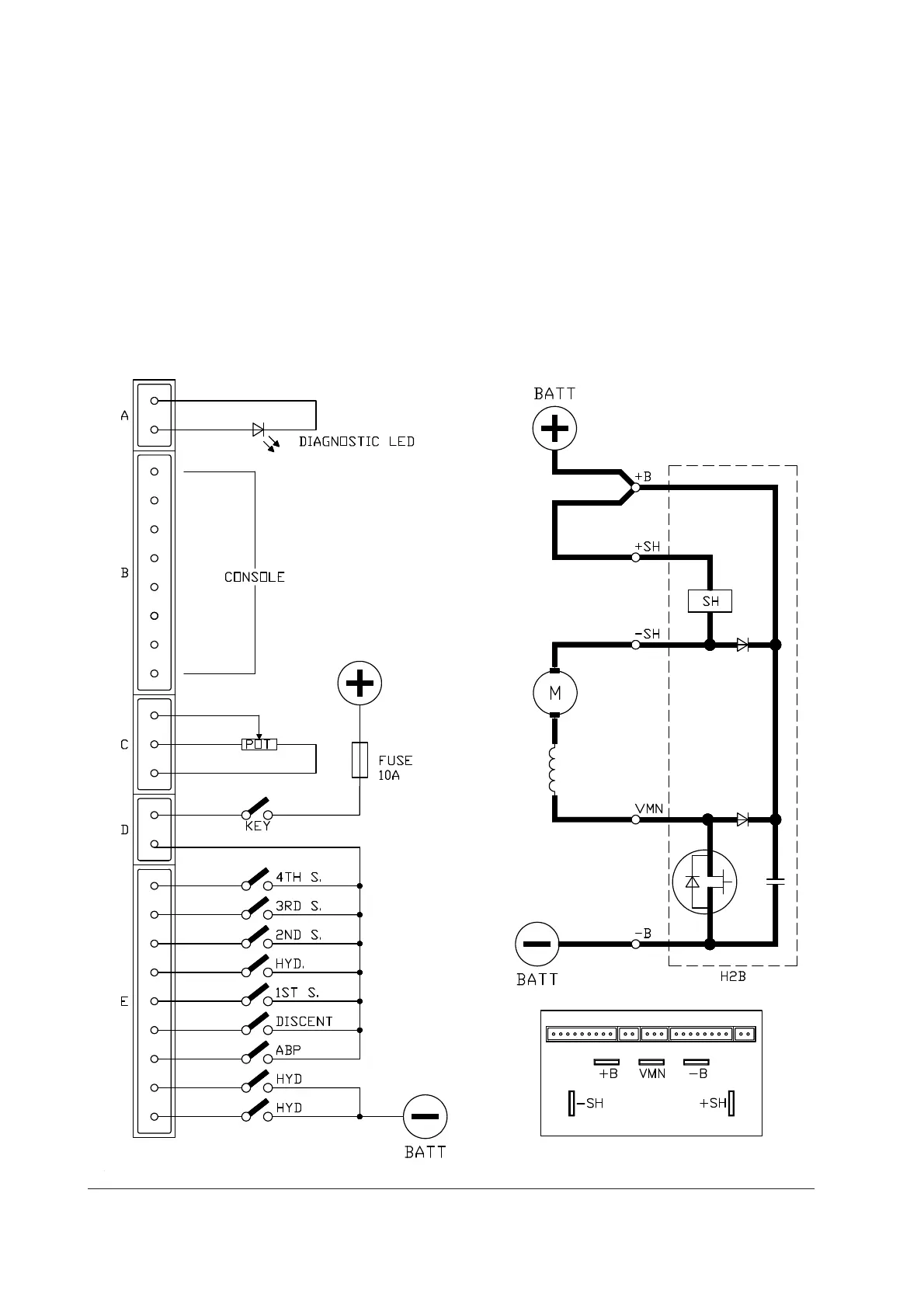

6.1 H2B STANDARD LIFTING
-
Input for speed controlled by 3-wire potentiometer
-
4 speeds with separately adjustable compensation
-
1 speed with associated delay (for hydrodrive) and adjustable compensation
-
Main contactor handling
-
Weakening or bypass contactor handling
-
Proportional solenoid valve handling for descent
45
47
Table of Contents
Default Chapter
1
Table of Contents
1
Legend
3
1 Introduction to the ZAPIMOS Family
4
2 General H2B Characteristics
5
Technical Specifications
5
Control Unit
6
Microswitches
6
Potentiometer
6
Protection Features
8
Performance Features
9
H2B Chopper Diagnosis
9
Thermal Considerations
9
General Notes and Precautions
10
General Contactors and Safety Switch for Regenerative Model
11
3 Installation
12
Choosing Connection Cables
12
Contactors
12
Fuses
12
H2B Connectors
13
H2B Power Connectors
14
Contactors Connector
15
H2B Chopper Mechanical Drawing
16
4 Parameter Modifications
17
Modifying Parameters Using the Digital-Console
17
Chopper Configuration and Connections Description
20
5 Traction
22
H2B Regenerative Traction
22
Input Connectors Description
23
Programmable Functions (Options)
24
Parameter Modification
26
Adjustment Chart
26
Variants for Braking Soft
28
Wiring Diagram for H2B Regenerative Model with Pedal
29
Wiring Diagram for H2B Regenerative Model with Handle
29
Wiring Diagram for H2B Regenerative Model with Speed Check and Pick-Up
30
Wiring Diagram for H2B Regenerative Model with Speed Check and Tacho-Generator
31
Wiring Diagram for H2B Regenerative Model with Speed Check and Backing
32
Wiring Diagram for H2B Regenerative Model Power Unit
33
Wiring Diagram for H2B Regenerative Model Power Unit with Weakening
34
Wiring Diagram for H2B Power Unit Regenerative with Bypass
35
Wiring Diagram for H2B Power Unit Regenerative with Weakening
35
Sequence of Settings for Regenerative
36
H2B Traction Diagnosis
37
Decoding Console Displayed Alarms
38
6 Pump
46
H2B Standard Lifting
46
Input Connectors
47
Programmable Functions (Options)
47
Parameter Modification
48
Adjustment Chart
49
Connection Diagram for H2B Standard Lifting
50
Connection Diagram for H2B Pump Unit with Weakening
50
Connection Diagram for H2B, with Power Unit Bypass Contactor and Main Contactor
51
H2B Power Unit Standard Connection Diagram
51
H2B Lifting + 3Rd Motor
52
Input Connectors
53
Programmable Functions (Options)
53
Parameter Modification
54
H2B Electrical Connection Diagrams Pump + Hydro
54
H2B Power Unit Wiring Lifting + Hydrodrive + Weakening
55
Sequence of Settings for Lifting
55
Setting the Proportional Solenoid Valve
56
H2B Lifting Diagnosis
56
Decoding the Alarms Displayed on Console
56
7 Recommended Spare Parts for H2B
59
8 Periodic Maintenance to be Regulary Repeated
60
