H2B USER'S MANUAL - 550145G Page 17/60
4 PARAMETER MODIFICATIONS
Modification of the parameters, in addition to the configuration of the inputs, is made di-
rectly by ZAPI on customer specifications, or the customer may make adjustments himself
using the programming console. The console can remain connected to the chopper when
running and the parameters can also be varied in real time during operation.
To confirm data, press ENTER when requested by the message on the console.
The parameters thus modified and optimised on one unit can be stored from the console
(SAVE) and then reloaded (RESTORED) on another chopper, thus allowing fast and
standardised calibration (see console manual for details).
In H2G software version, parameters modification and PROGRAM VACC function are
locked by default. To enable them, special adj. PARAM CHANGE EN must be set to ON.
Pay special attention to the polarity of the console connector when it is hooked up to the
chopper.
HOOKING UP MUST ONLY BE DONE WITH THE MACHINE OFF.

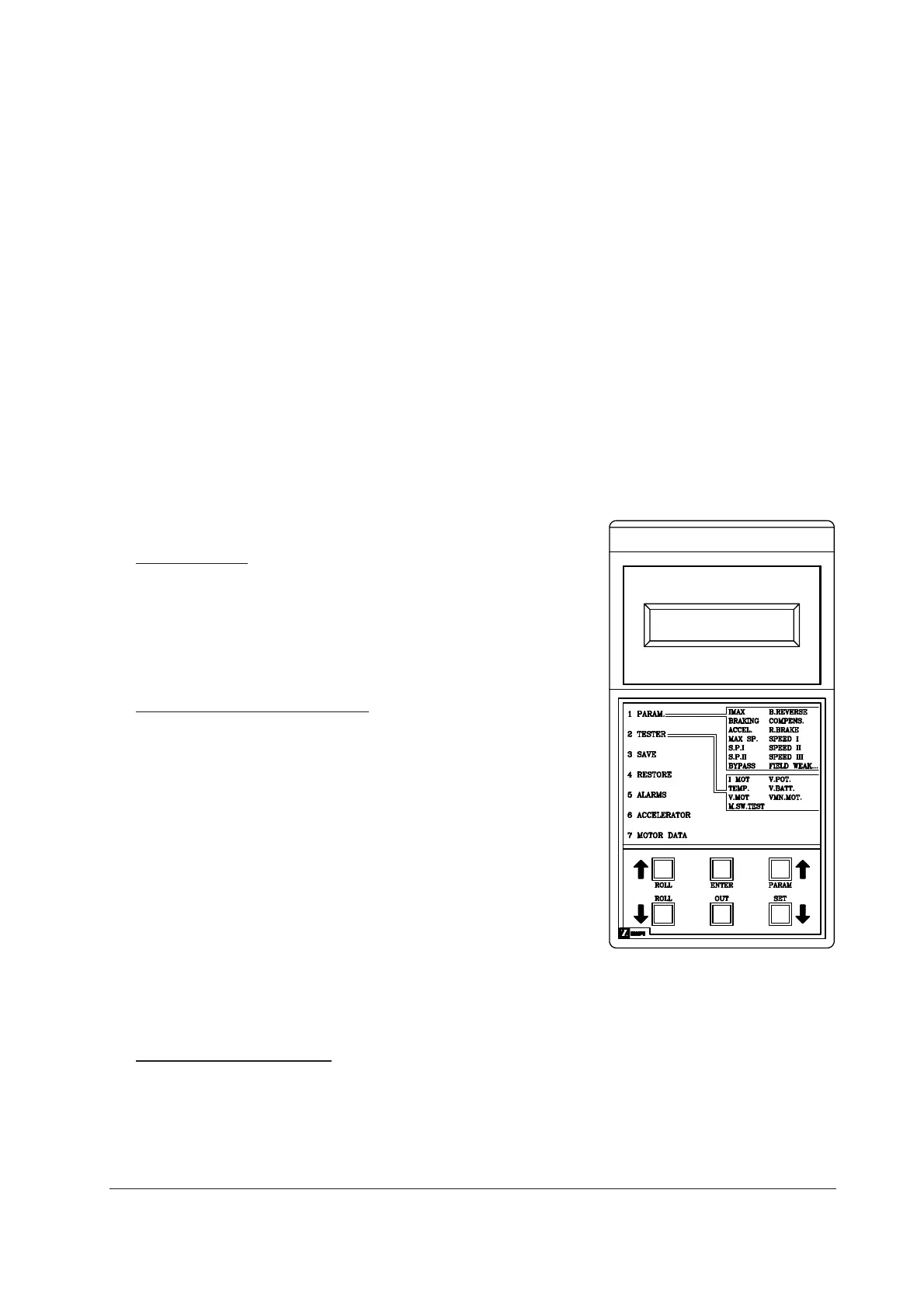

4.1 MODIFYING PARAMETERS USING THE DIGITAL CONSOLE
The digital console displays the model type and its built-in hourmeter.
- SET MODEL:
REGENER
NOT CONF
STANDARD PUMP
PUMP + HYDRO
- SET OPTIONS (TRACTION):
BYPASS CONTACTOR bypass / weakening cont
SPEED CONTROL on / off
BATTERY CHECK on / off
ANTIROLLBACK on / off
RELEASE BRAKING on / off
HOUR COUNTER running / keyon
QUICK INVERSION on / off
SAFETY SWITCH seat / handle
BACKING FUNCTION on / off
SOFT BRAKING on / off
AUX FUNCTION none / bimotor
contactor / hydrocontactor
HYDRO KEYON (*) on/off
- SET OPTIONS (PUMP):
BATTERY CHECK on / off
BYPASS CONTACTOR bypass / weakening cont
HOUR COUNTER running / keyon
MAIN CONTACTOR present / running status
