Zebra S4M Installation Instructions

3
S4M Pulley and Gears Maintenance Kit
Remove the Electronics Cover
10/3/05 S4M Installation Instruction 20002L-001 Rev. A
Remove the Electronics Cover
1. Turn Off (O) the printer and disconnect the AC power cord and all data cables.
2. See Figure 2. Remove the electronics cover mounting screw and washer and then close the
media door.

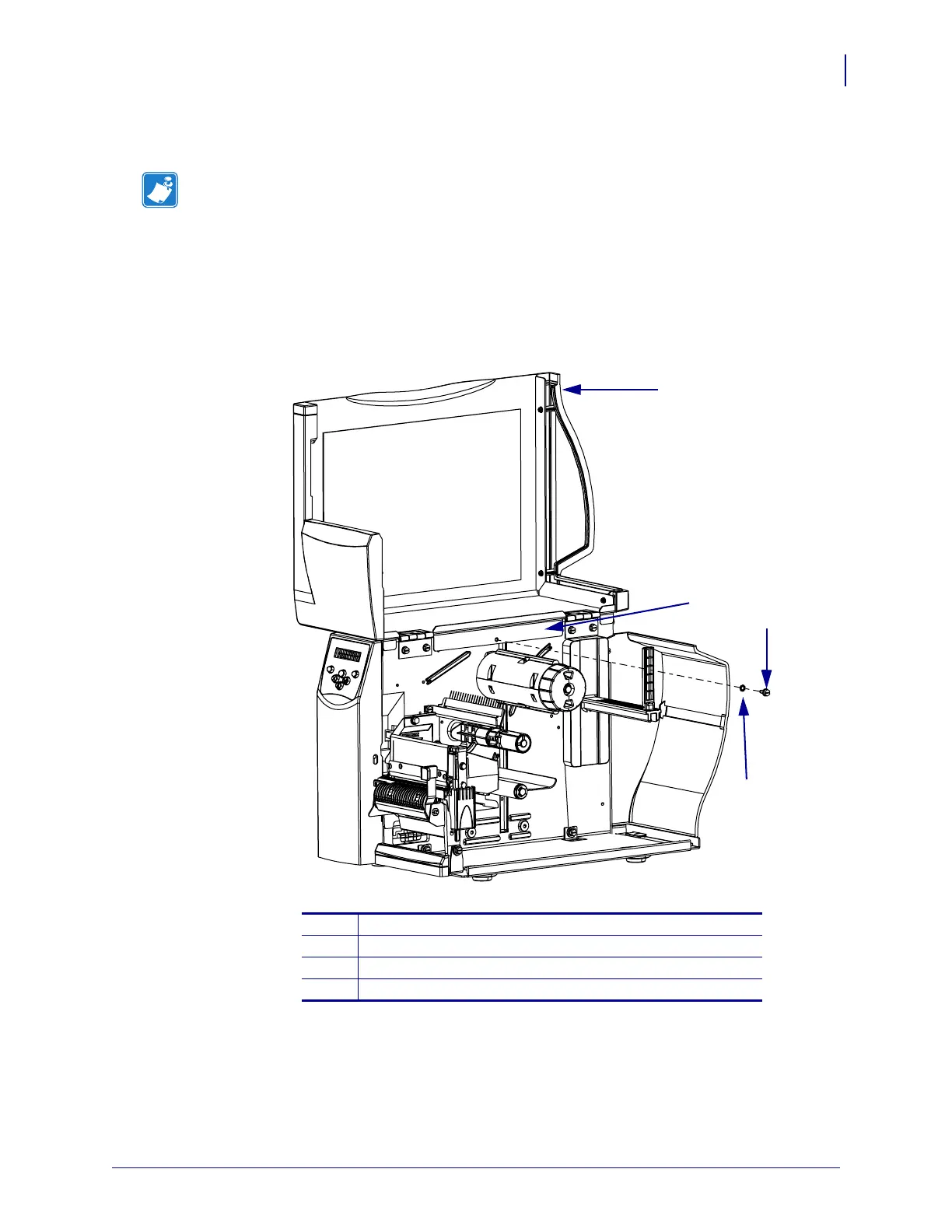

Figure 2 • Remove the Mounting Screw
Note • Retain all parts removed during disassembly, unless otherwise directed.
1
Media Door
2
Electronics Cover Upper Flange
3
Electronics Cover Mounting Screw
4
Washer
1
2
3
4

Zebra S4M Specifications

General

Flash memory	4 MB
Internal memory	8 MB
Dimensions (WxDxH)	272 x 477 x 295 mm
Media types supported	continuous, die-cut, tag, black mark
Media thickness	0.076 - 0.15 mm
RS-232 ports	1
Standard interfaces	USB 2.0
Storage temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Weight	12400 g
