Zephyr ALU-E43ASX User Manual

- 26 -

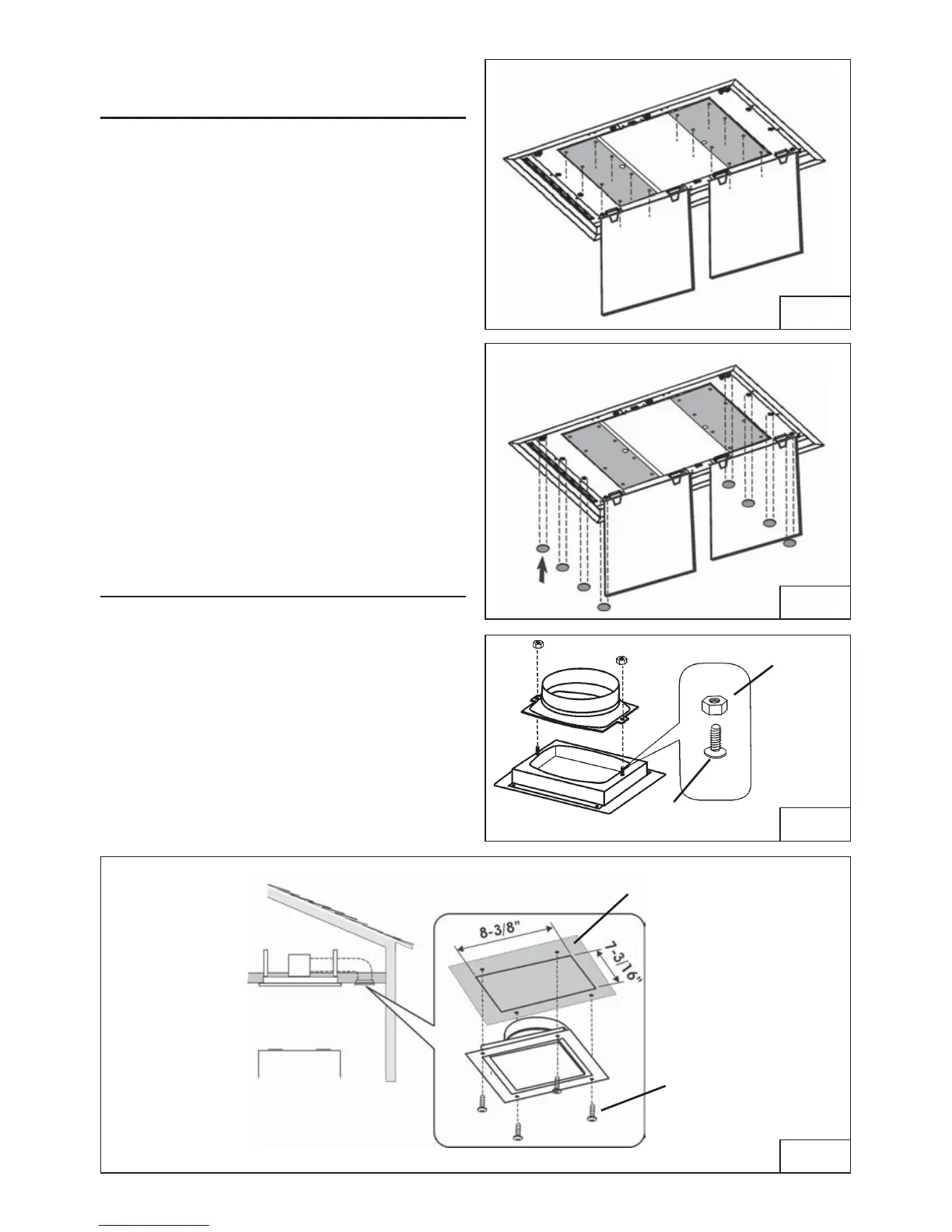

COMPLETE THE
INSTALLATION
1. Reassemble the (2) interiors panels by
means the (8+8) 3,9x6mm screws. See
Fig. 35.
2. Insert the (8) plugs round. See Fig. 36.
FIG.35
FIG.36
INSTALL THE AIR RETURN
VENT (NON-DUCTED
VERSION)
Purchase the optional ZRC-00LX
recirculating kit, sold separately. The kit
includes the air return vent and the
charcoal filters.
1. Fix the duct collar on the air return vent, by
means (2) M4x8mm screws and (2) bolts.
See Fig. 37.
2. Fix the air return vent to the ceiling, by
means (4) 4,2x15 mm screws. See Fig.38.
FIG.37
FIG.38
(2) MOUNTING SCREWS
M4x8mm
(2) BOLTS
(16) MOUNTING
SCREWS (3.9 x 6
mm Flat Head)
(4) MOUNTING SCREWS
4,2x15mm
CEILING

Zephyr ALU-E43ASX Specifications

General

Brand	Zephyr
Model	ALU-E43ASX
Category	Ventilation Hood
Language	English
