HYDRAULIC SYSTEM

P+11N017d

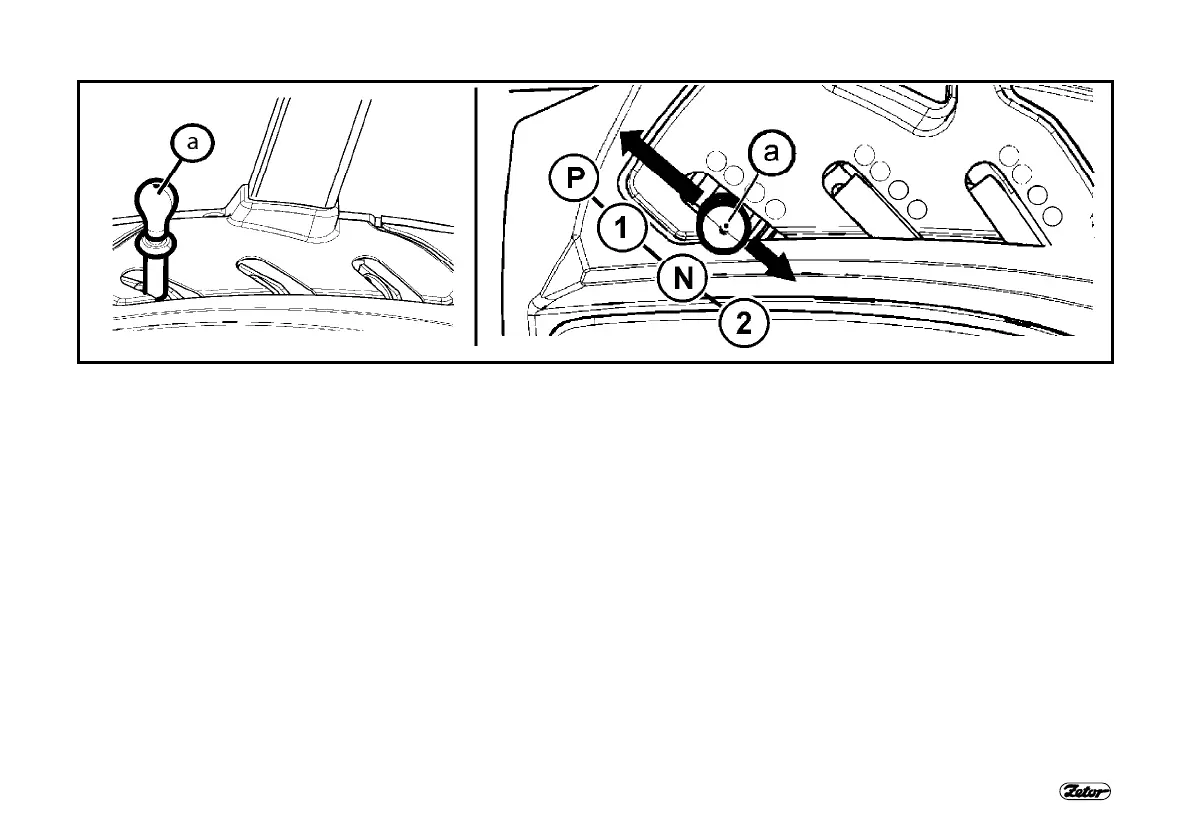

DIFFERENT FUNCTIONS OF OUTER HYDRAULIC CIRCUIT CONTROL LEVERS- ONE SECTION DISTRIBUTOR

There are four positions of the lever (a):

N -

Neutral position. Quick coupler drives (1) and (2) are closed and oil in the hydraulic appliance connected is blocked. Lever

(a) is locked in this position.

1 -

Pressure in quick coupler (1). Quick coupler (2) is connected with the drain.

2 -

Pressure in quick coupler (2). Quick coupler (1) is connected with the drain. Lever (a) is locked in this position.

P -

Floating position. Both quick couplers (1) and (2) are connected with the drain and oil is free to flow in both directions.

Lever (a) is locked in this position.
