91
HYDRAULIC EQUIPMENT
E418
ADDITIONL DISTRIBUTOR CONTROL

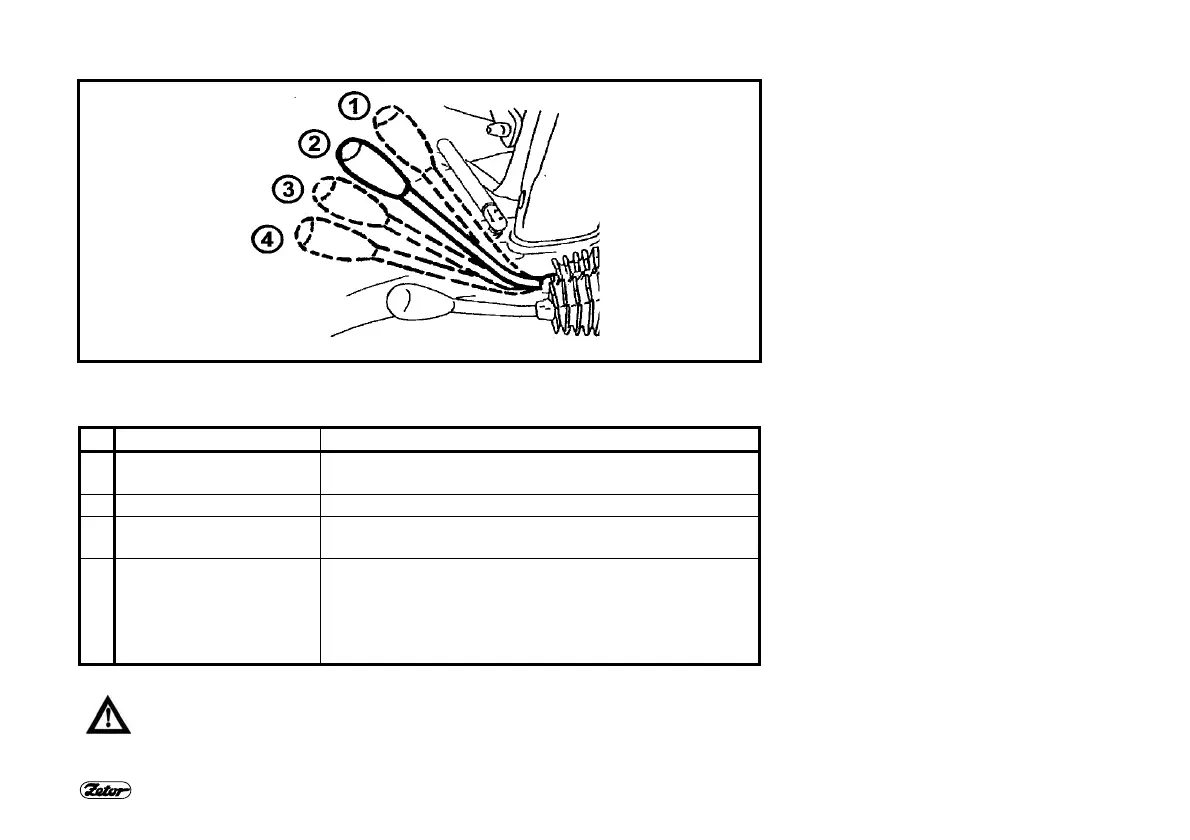

Each control lever has four positions:
Position of the lever Function
1
Rear (upper) position
Pressure oil flows to quick-couplings "4"and "6"
Quick-couplings, connected to the drain: “3“ and “5“
2
Central position Neutral
3
Front (lower) position
Pressure oil flows to quick-couplings "3" and "5"
Quick-couplings, connected to the drain: “4“ and “6“
4
Front marginal posi-
tion
Increased force is necessary to move the control
lever from position (3) further forward to position (4),
so-called floating (free) position, where the levers are
arrested. Both quick-couplings of each section are
connected to the drain in this position.
Note: The lever returns from positions (1) and (3) to neutral position automatically.
Connect always the single-acting cylinder to quick-couplings “4“and “6“!
