Adjustment of the lift link on the lower link
Mounting implement
Caution:
When driving on public or agricultural roads, connect the two brake pedals and ensure that the
weight of all the aggregated implements is distributed and the unit remains balanced.
A
t the same time, monitor the width of the vehicle to avoid endan
g
erin
g
other road users. If the
tractor is equipped with warning lights or beacons, use them.
Strictl
y
observe local traffic rules
.

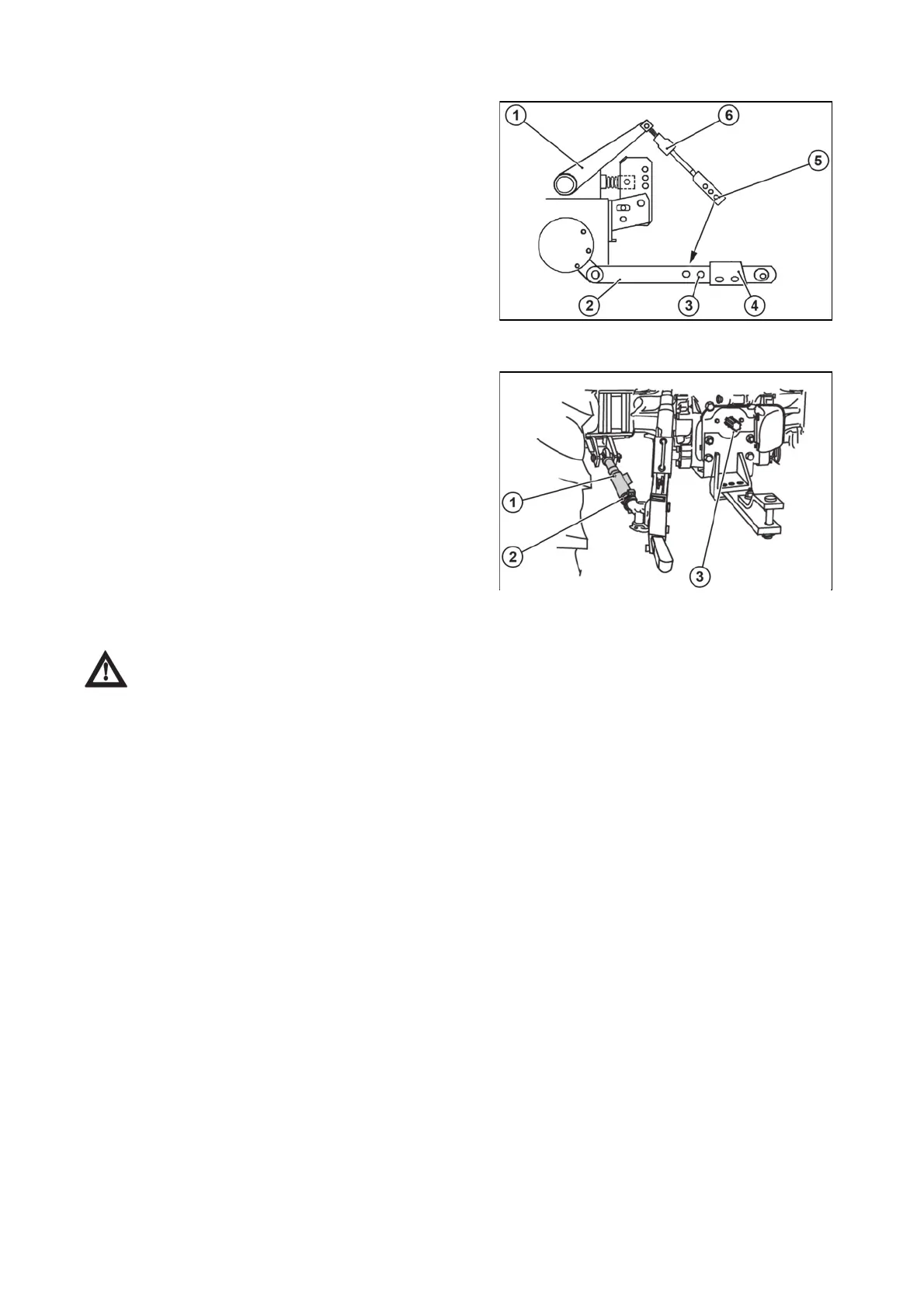

1 - Lifting Arm
2 - Lower Link
3 - Holes for Stabilizer Bar
4 - Extendable Type of Lower Link
5 - Position Holes of the Vertical Link
6 - Vertical link
For various applications, the lifting height of the lower links
can be adjusted by adjusting the pins in the holes of the
vertical links.
U18N046
1 - Length Control Handle of the Stabilizer Bar
2 - Connection Pin of the Stabilizer Bar and the Lower
Link
3 - PTO
Adjust the appropriate length using the side links so that
the setting is suitable for the implement being used and
secure it with the lock nut.
If the PTO is used, attach it to the tractor and make sure it
is locked in its position.
Use the reverse procedure to remove the implement.
U18N047
CONTROLS, INSTRUMENTS & OPERATIONS
69
