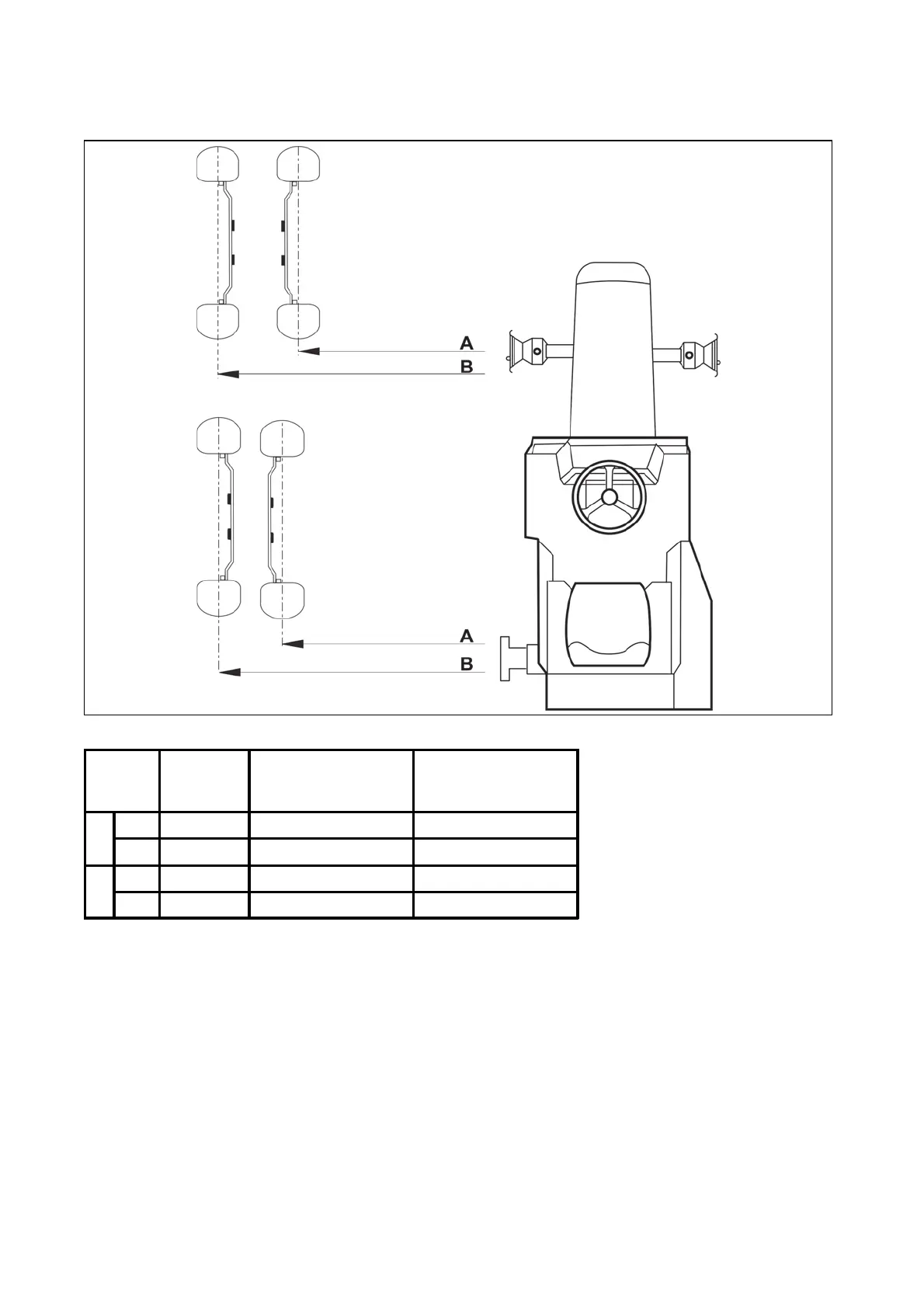

Treads
Front and rear wheels can be set in two positions. This will change the tread.
UCL18NN027
Tire size
A
Standard tread
(mm)
B
tread
(mm)
R1
Front
240/70 R16
1,330
1,427
Rear
320/70 R24
1,264
1,172
R4
Front
12-16,5
1,321
1,436
Rear
17,5L-24
1,370
1,070
CONTROLS, INSTRUMENTS & OPERATIONS
80
80
82
