ZXR102900ESeriesCongurationGuide

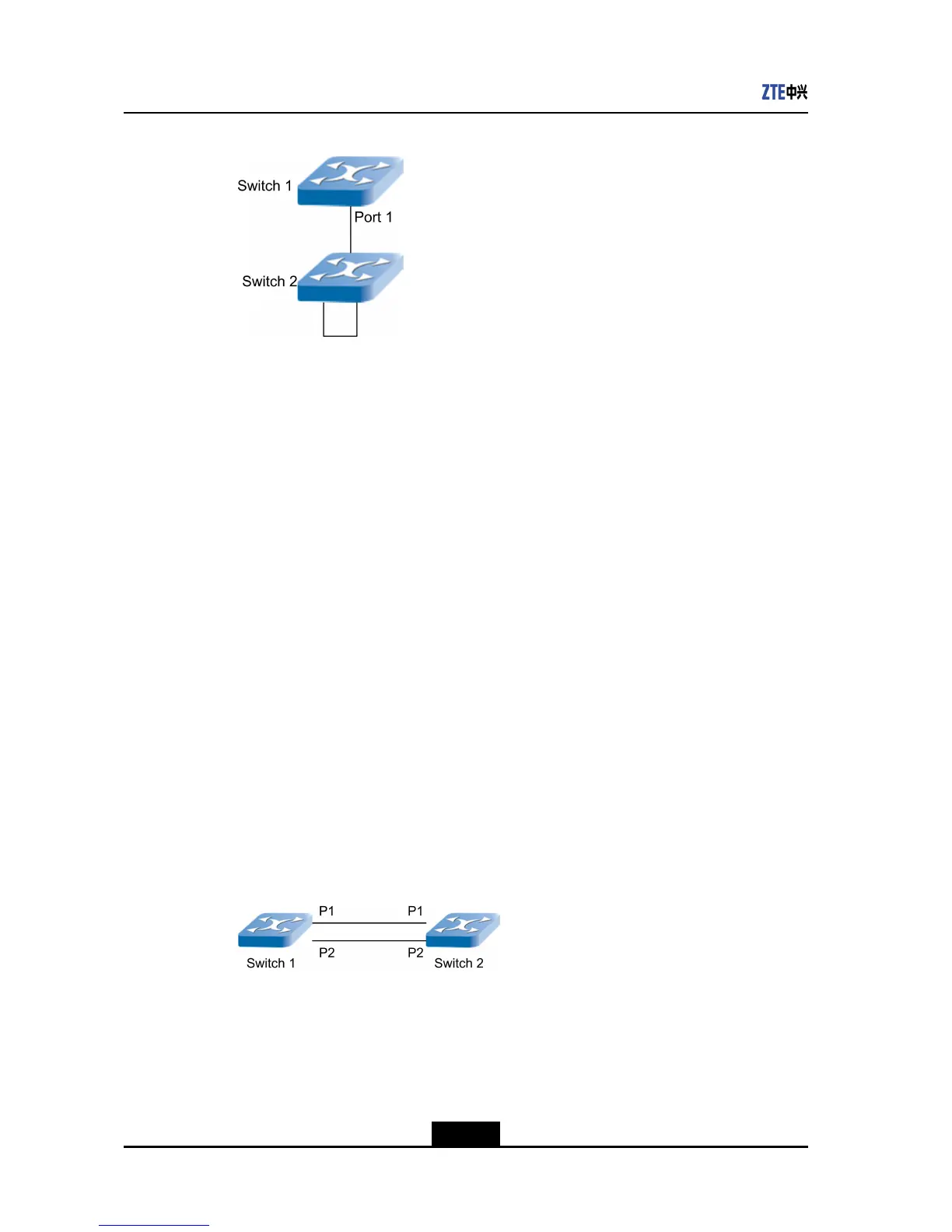

Figure4-51SinglePortLoopDetectionCongurationTopology
lCongurationProcedure
zte(cfg)#setloopdetectport1enable
lCongurationVerication
ChecktheloopdetectionstateofSwitch2:
zte(cfg)#showloopdetect
Theblock-delayofloopdetect:5(min)
Thepacketintervalofloopdetect:15(sec)
PortIdisUpisStpisProtectisExtendloopVlanNumloopType
----------------------------------------------------
1UpNoYesNo1Port
zte(cfg)#showloopdetectport1
PortId:1
VlanIdisLoopisBlock
-------------------
1YesYes
DoublePortsLoopDetectionCongurationInstance
lCongurationDescription
AsshowninFigure4-52,congurethedoubleportsloopdetectionfunctionof
loop-detectofswitch2tosuppressingbroadcaststormofnetworkunderswitch2.
Figure4-52DoublePortsLoopDetectionCongurationTopology
lCongurationProcedure
Switch2(cfg)#setloopdetectport1,2enable
Switch2(cfg)#setloopdetectextendport1enable
lCongurationVerication
Checktheloopdetectionstateofswitch2
4-130
SJ-20120409144109-002|2012-07-02(R1.0)ZTEProprietaryandCondential

Zte ZXR10 2928E Specifications

General

MAC Address Table Size	8K
Jumbo Frame	9K
Storage Temperature	-40°C to 70°C
VLAN	4K
Power Supply	AC: 100~240V, 50/60Hz
Dimensions	440mm x 44mm x 220mm
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Power Consumption	< 30W
