Zte ZXRAN V9200 User Manual

ZXRAN V9200 Product Description
10 ZTE Confidential & Proprietary
2 Product Architecture
2.1 Physical Structure

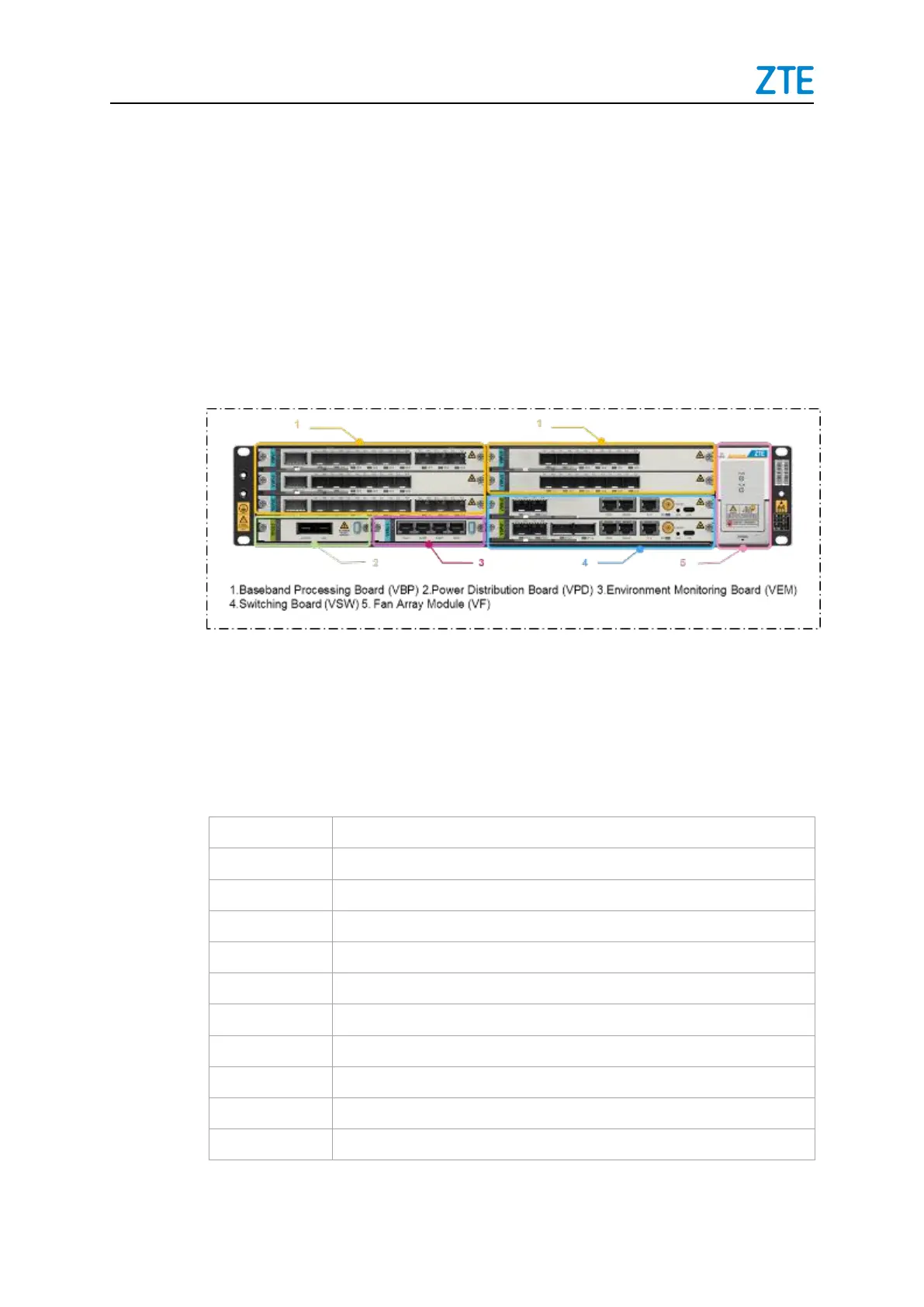

The V9200 physical appearance is shown in Figure 2- 1
Figure 2- 1 Appearance of V9200
The V9200 consists of Power Distribution Board (VPD), Baseband Processing Board
(VBP), Environment Monitoring Board (VEM), Switching Board (VSW) and Fan Array
Module (VF), as listed in Table 2-1.
Table 2- 1 Board List of V9200
Board Name
Function Description
VSWc0
Switching Board Type c0 for 2G/3G/4G multi-mode
VSWc2
Switching Board Type c2 for 2G/3G/4G/5G multi-mode
VSWd1
Switching Board Type d1 for 2G/3G/4G /5G multi-mode
VSWd2
Switching Board Type d2 for 2G/3G/4G /5G multi-mode
VBPc0
Baseband Processing Board Type c0 for 2G/3G/4G multi-mode
VBPc1
Baseband Processing Board Type c1 for 2G/3G/4G multi-mode
VBPc5
Baseband Processing Board Type c5 for 5G single-mode
VBPc7
Baseband Processing Board Type c7 for 2G/3G/4G multi-mode
VBPd0
Baseband Processing Board Type d0 for 4G/5G multi-mode
VBPd1
Baseband Processing Board Type d1 for 2G/3G/4G/5G multi-mode
