ZXRAN V9200 Product Description

ZTE Confidential & Proprietary 41

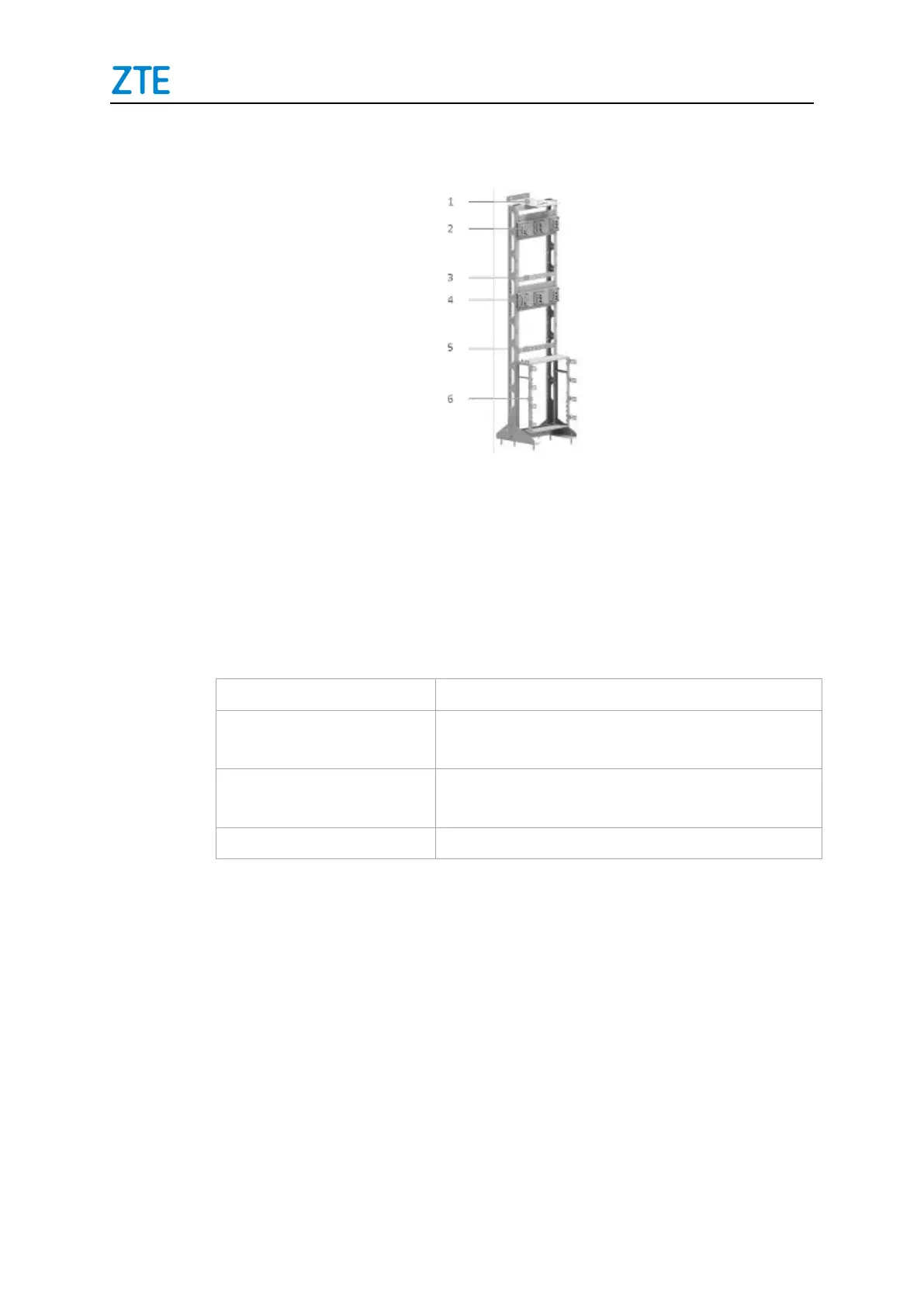

Figure 4- 12 Physical Structure of L-Rack-I1

1. Reinforcing panel for mounting on a wall or connecting to an overhead cable rack 2. Second

layer for 3 RRUs 3. Second layer cable chute 4. First layer for 3 RRUs 5. First layer cable chute 6.

Cabinet for BBU and DCPD

The physical specifications of the L-Rack-I1 are specified in Table 4- 8.

Table 4- 8 Physical Specifications of L-Rack-I1

Item

Specification

Rack Dimension (mm)

(H x W x D)

2200 x 550 x 500 (Empty rack)

2200 x 600 x 600 (With equipment mounted)

Cabinet Dimension (mm)

(H x W x D)

Outer space: 657 x 526 x 173

Inner space: 14 U

Rack Weight (kg)

4.7 Indoor H-Rack

In the indoor scenario, the V9200 can be simply put in the indoor H-Rack, as shown in

Figure 4- 13. One H-Rack maximally supports 3 BBUs.
