Zte ZXRAN V9200 User Manual

ZXRAN V9200 Product Description
12 ZTE Confidential & Proprietary

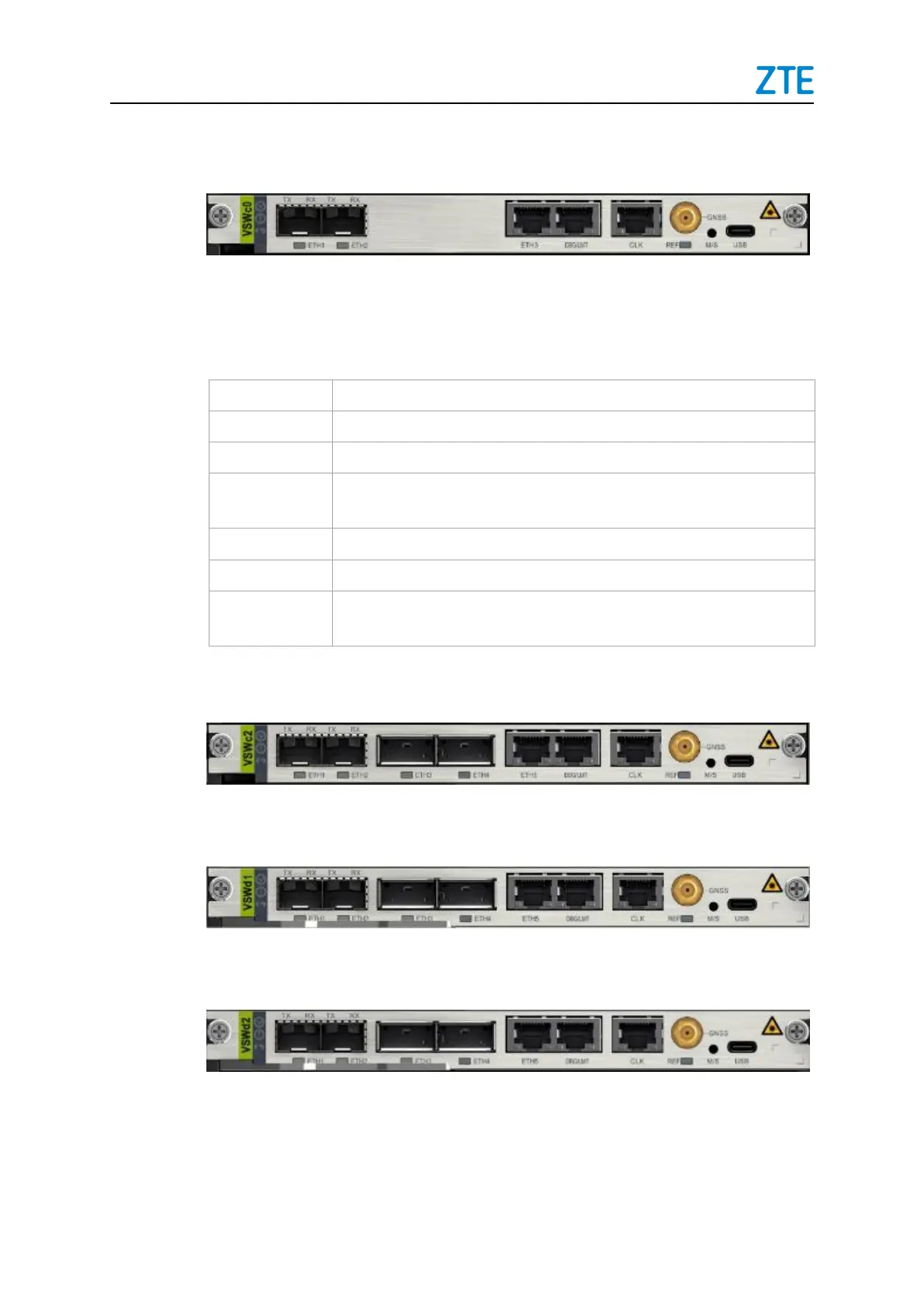

Figure 2- 3 VSWc0 Panel
The panel VSWc0 interfaces are specified in Table 2- 2.
Table 2- 2 VSWc0 Panel Interfaces
Interface
Description
ETH1 – ETH2
1GE/10GE optical interface, used for backhaul transmission
ETH3
1GE electrical interface for backhaul transmission
DBG/LMT
10M/100M/1000M Ethernet interface for local
maintenance/debugging
CLK
1PPS+TOD clock signal input/output interface
GNSS
SMA interface for GNSS antenna
USB
USB Type-C interface for base station commissioning/software
upgrading
Figure 2- 4 VSWc2 Panel
Figure 2- 5 VSWd1 Panel
Figure 2- 6 VSWd2 Panel
The VSWc2/VSWd1/VSWd2 panel interfaces are specified in Table 2- 3.
