REPAIR PARTS
Residenal Hybrid Electric Heat Pump Water Heater Use and Care Guide • 31
REPAIR PARTS
Repair parts may be ordered through your plumber, local
distributor, home improvement center: For informaon
about where to get parts in your area, visit our website at
www.hotwatercanada.ca, or call 1-888-479-8324.
When ordering repair parts always give the following
informaon:
1. Model, serial and product number
2. Item number
3. Parts descripon
REPAIR PARTS LIST
16
16
5
3
2
2
4
14
6
7
17
8
12
14
9
1
18
21
13
15
22
ITEM
NO.
PARTS DESCRIPTION PART NUMBER
1
Personnel Protector 9003900005
2
Element (4500 Was) 9000092015
3
Energy Cut-O (ECO) Switch 9008167015
4
Temperature & Pressure Relief Valve
(T&P)
9000728015
5
J-Tube (at hot water outlet) 11.25” for
50 gallon
9008848005
5
J-Tube (at hot water outlet) 14.25” for
66 and 80 gallon
9009315005
6
Air Filter 9008850005
7
Fan Assembly 9008851005
8
Drain Valve - Brass - 2 inch 100262060
9
Personnel Protector 319378-000
10
Ambient / Coil / Discharge
Temperature Sensor Assembly*
9008852005
11
Upper / Lower Tank Temperature
Sensor Assembly*
9008853005
12
Electronic Expansion Valve Coil 9008854005
13
Condensate Drain Pan 325892-000
14
Smart Grid Cover 319687-000
15
UIM Front Cover Assembly
(No control board)
100263335
16
Element Access Panel 409230-000
17
Anode (36” for 50 and 66 gallon
models)*
9001829005
17
Anode (14” for 66 and 80 gallon
models)*
9001909005
17
Anode (42” for 80 gallon models)* 9001829005
17
Anode (Universal Link Style)
Magnesium*
9005973005
17
Anode (Universal Link Style)
Aluminum*
9005742105
*Not shown
208V/240V
18
Control Board, 208V/240V 100263334
19
Run Capacitor* 100261846
21
208V Compressor 100261797
22
Thermal Overload Kit 100270597
*Not shown

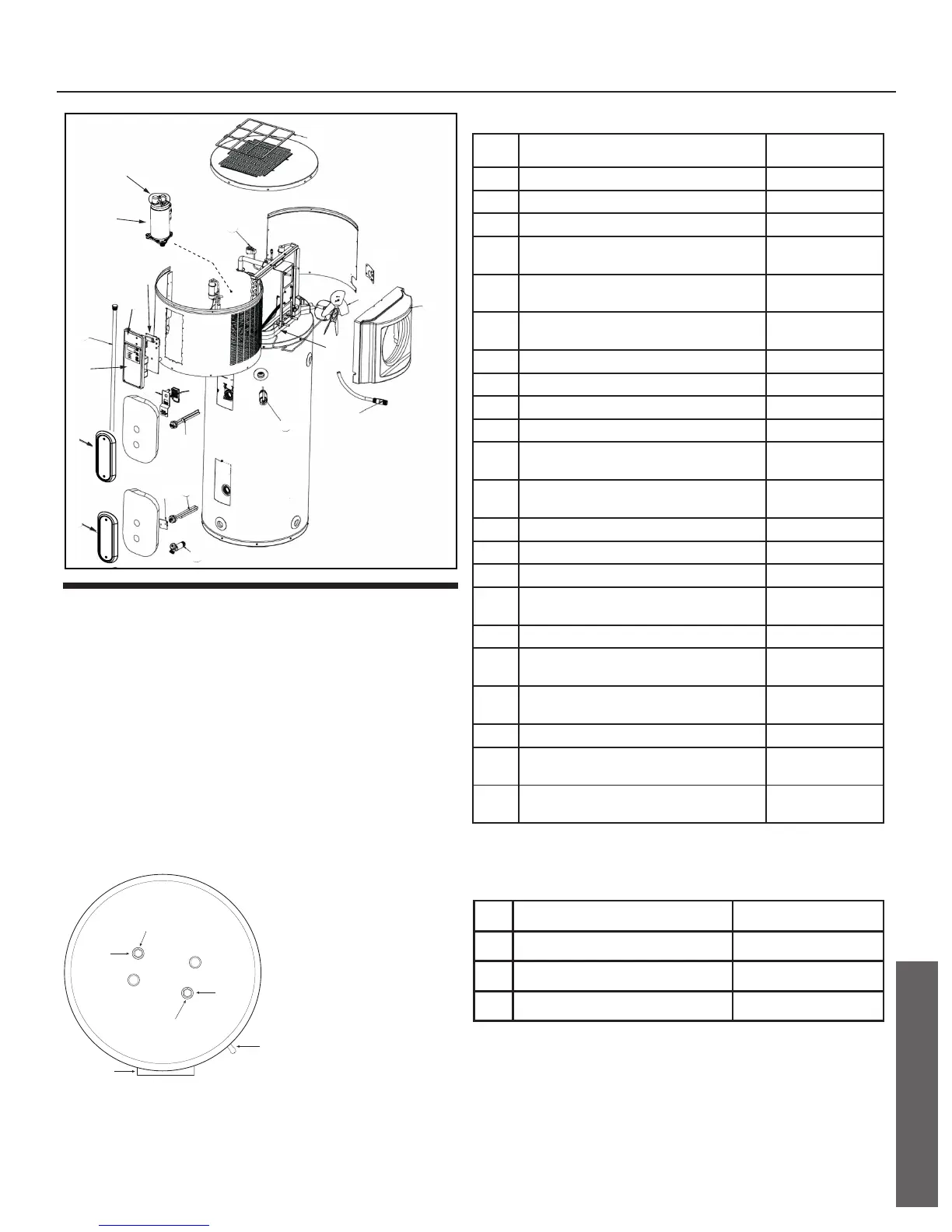

REPAIR PARTS ILLUSTRATION
Anode
Anode
T&P Valve
UIM
Front of Unit
Back of Unit
36” for 50 and 66 gallon
42” for 80 gallon
14” for 66 and 80 gallon
(50 gallon models have
only one anode)
ANODE LOCATIONS
